USED 2013 YCM TCM-46M/3200

Manufacturer: YCM
Model: TCM-46M-3200
Year: 2013
Swing: 33.46"
Turning Length: 134.45"
Chuck Size: 20.87"
Spindle Bore: 6.5"
HP: 50
RPM: 1200
Control: FANUC
Price: CALL US!

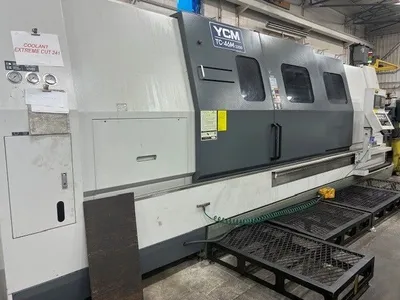

YCM TC-46M/3200 CNC LATHE, 2013 - ONLY 1260 HOURS!

Swing Over Bed 33.46"

Machining Length 125.98"

Distance Between Centers 134.45"

Turning Diameter, Shaft Diameter 28.53"

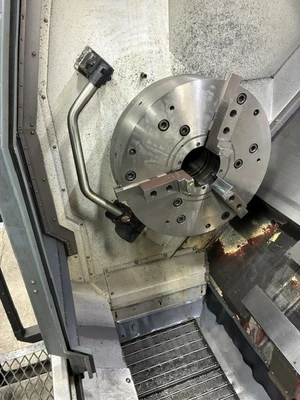

Chuck Size 1 20.87"

Spindle Nose 1 A2 - 15

Spindle Bore Diameter 1 7.1"

Spindle Bar Capacity 1 6.5"

Spindle Speeds 1 1,200 RPM

Spindle Horsepower 1 50 hp

X1 - Axis Travel 15.94"

Z1 - Axis Travel 125.98"

C1 - Axis Travel .001

Rapid Traverse Rate - X1 640 in/min.

Rapid Traverse Rate - Z1 472 in/min.

Spindle Torque 3900

Gear Ranges 2

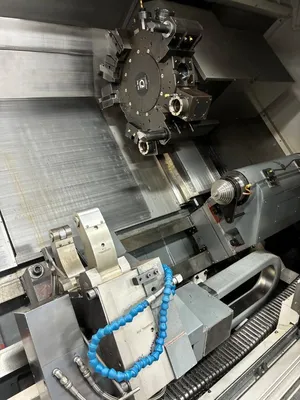

Turret Configuration 1 10

Turret Rotary Tool Spindle Speed 1 3,000 RPM

Turret Rotary Tool Horse Power 1 30 hp

Tailstock Quill Diameter 5.91"

Tailstock Taper MT 5

Tailstock Quill Travel 5.91"

Programmable Tailstock YES

Tailstock Travel 119.1"

# Axis 3

Bar Capacity 6.5"

Tailstock 'Yes'

Live Tooling 'Yes'

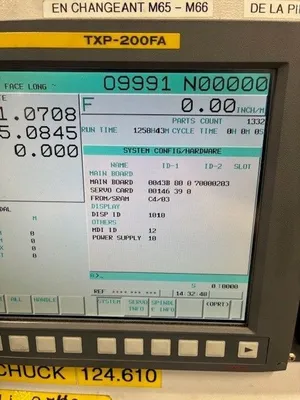

Control CNC (FANUC TXP 200FA CNC COLOR CONTROL)

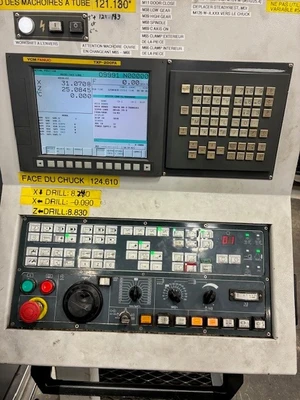

FANUC YCM TXP 200 FA CNC COLOR CONTROL

PROGRAMMABLE TAILSTOCK

AUTOMATIC TOOL SETTER

HYDRAULIC OPEN & CLOSE STEADY REST

.001 C-AXIS INDEXING

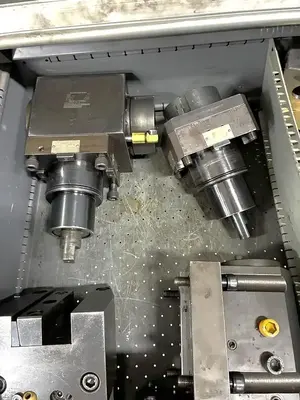

BMT 85 TURRET ROTARY TOOLS

(2) I. D. ROTARY HEADS

(2) O. D. ROTARY HEADS

SPINDLE CHILLER

CUSTOM MACRO

CHIP CONVEYOR


Floor Space with Chip Conveyor (W x D x H) 297 "xl08"x103"

Machine Net Weight with Chip Conveyor 34,171 LBS
