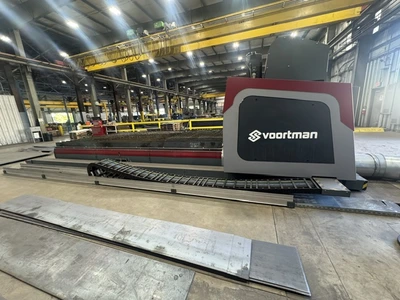

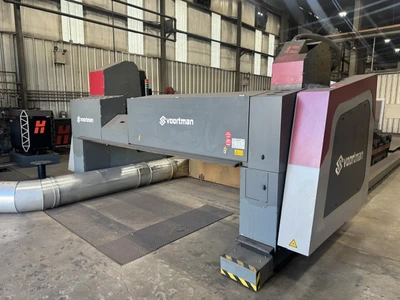

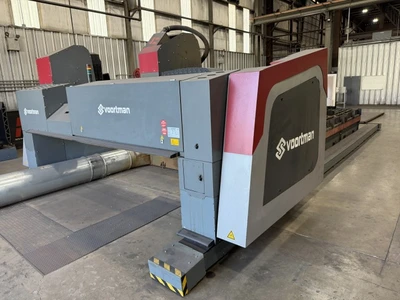

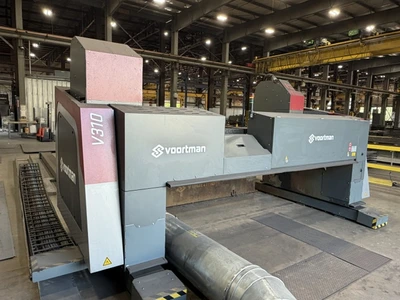

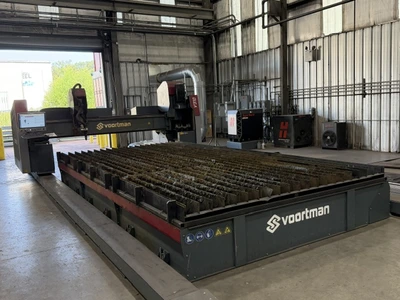

Voortman V310 Plate Processing Machine

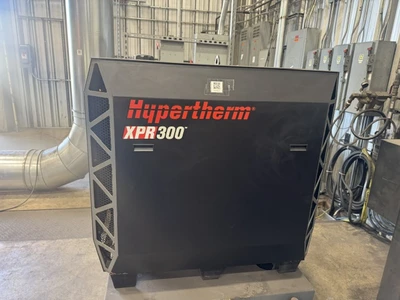

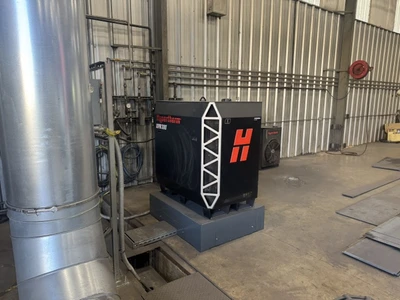

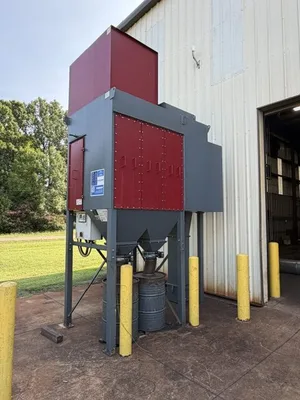

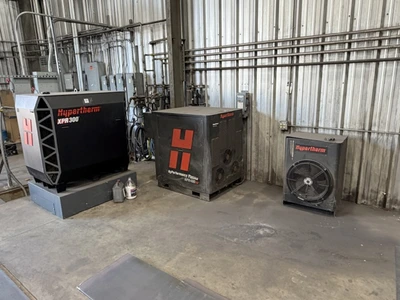

8’ x 20’ plate / sheet capacity, Drilling unit VD40, Plasma 3D Beveling, Hypertherm XPR300 Core, Servo motor driven axes and suspension, Milling package, Dross inhibitor and Arc Glare protection, Donaldson Fume Extractor Drilling unit VD40 Automatic tool changer 8 positions Spindle rpm Step less 0 – 3.500 rpm (servomotor) Maximum torque 300 ft lb Lubrication Internal by mist of air / oil Holder SK 40 Drill diameter 0.200 – 1.575” Maximum thickness for drilling 8.000” Thread tapping M6 – M30 Maximum thickness for tapping 3 times the tap diameter Centre point marking Countersinking Layout marking Milling Pneumatic clamping Pneumatic clamping force 1130 lbf Minimum tool length 4.750” Maximum tool length 12.625” Maximum tool diameter tool changer 3.500” *Depending on tool length Plasma cutting unit XPR300 Core Min. thickness 1/8” Max. thickness 3-1/8” Max. pierce capacity 1-3/4” Dross-free cutting max. 1-1/2” Marking, with same consumables Automatic gas console Plasma cutting speeds mild steel 1/4” Approx. 150 ipm 130A 1/2” Approx. 115 ipm 170A 1” Approx. 75 ipm 300A 1-1/2” Approx. 40 ipm 300A 2” Approx. 21 ipm 300A 2-1/2” Approx. 14 ipm 300A 3” Approx. 7 ipm 300A Plasma 3D bevel unit Max. acceleration Z-axis 288.000 ipm2 Max. speed Z-axis 840 ipm Bevel angle (depending on torch type) + / – 50° Positioning accuracy + / – 0,5° Material thickness .250” – 2” VACAM Opertor Dashboard SigmaNEST Programming Workstation Operating system 64-bit Windows 10 Pro / Windows Server 2016 CPU
