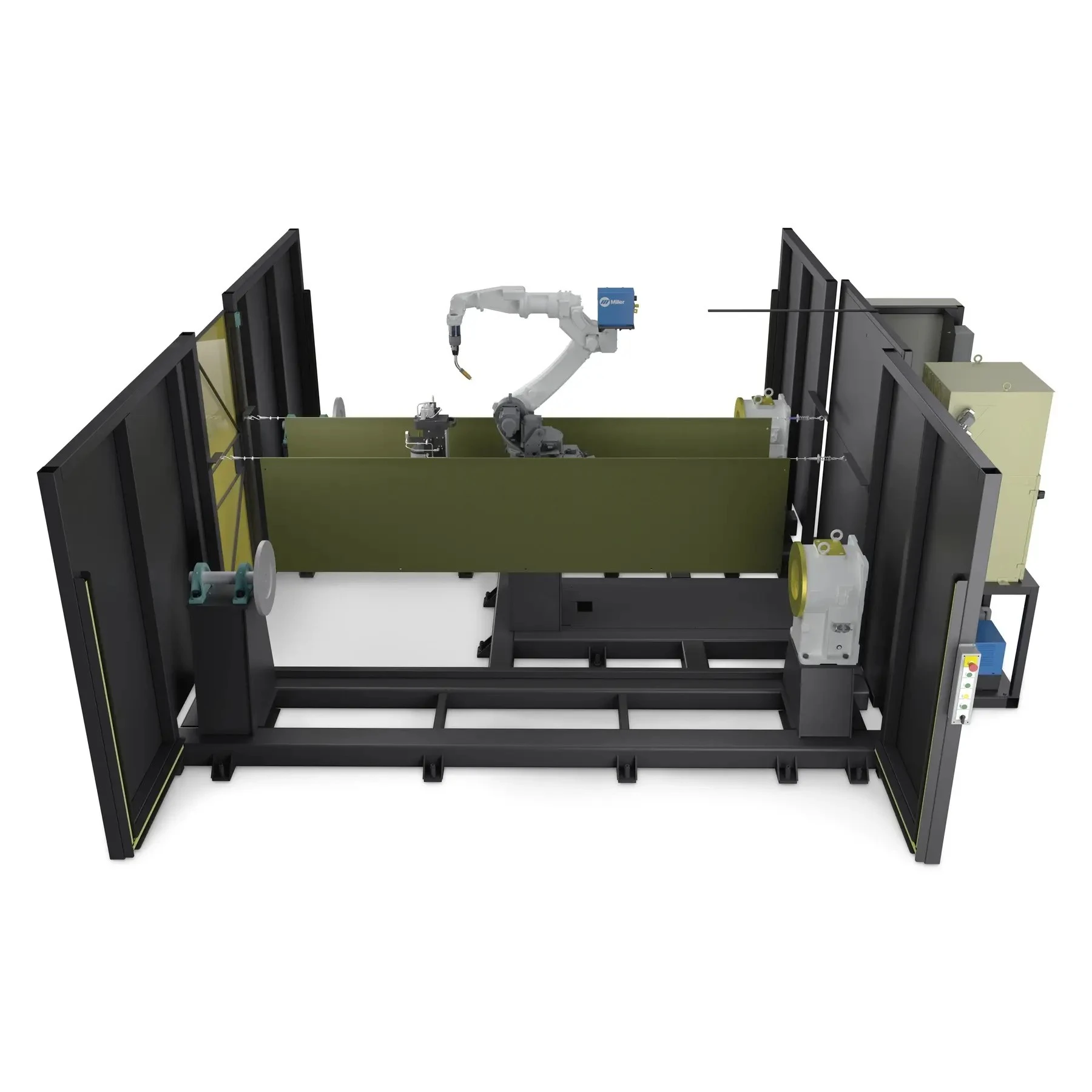

2021 Miller PerformArc PA-2200SS Robotic Welding Cells

Positioners – 2 Stations, 1 Axis Per Station Headstock to tailstock length of ~120″ Rotation diameter of ~70″ All axis fully servo driven, not limited to indexed positions Panasonic Servo Positioners (one per station) 2200-lb capacity per side 55mm through hole on outboard positioners for utilities passage   Panasonic TM-2000 Robot 6kg Payload 79.2 inch reach to Point P Collision Detection TM can use a thru arm torch or a conventional over the arm torch design   Panasonic G3 Robot Controller Panasonic G3 Teach Pendant (Windows CE 7″ Color GUI) 40,000 Point memory, virtually unlimited expansion with SD card Ethernet LAN connection standard Teach Pendant with 7-inch-wide TFT color LCD, Windows CE operation system   Miller Auto Continuum 500 500-Amp, 100% Duty-Cycle, Digital Welder Inverter based Pulse Welding and CV Welding 80-Volt Touch Sensing Technology Miller Robotic Wire Feeder Tregaskiss Air Cooled Torch
