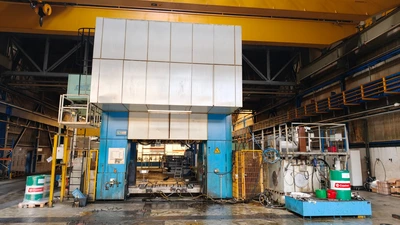

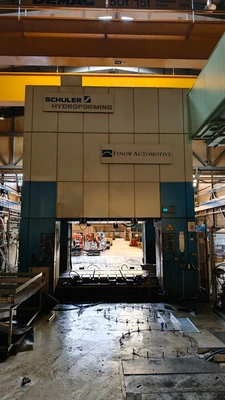

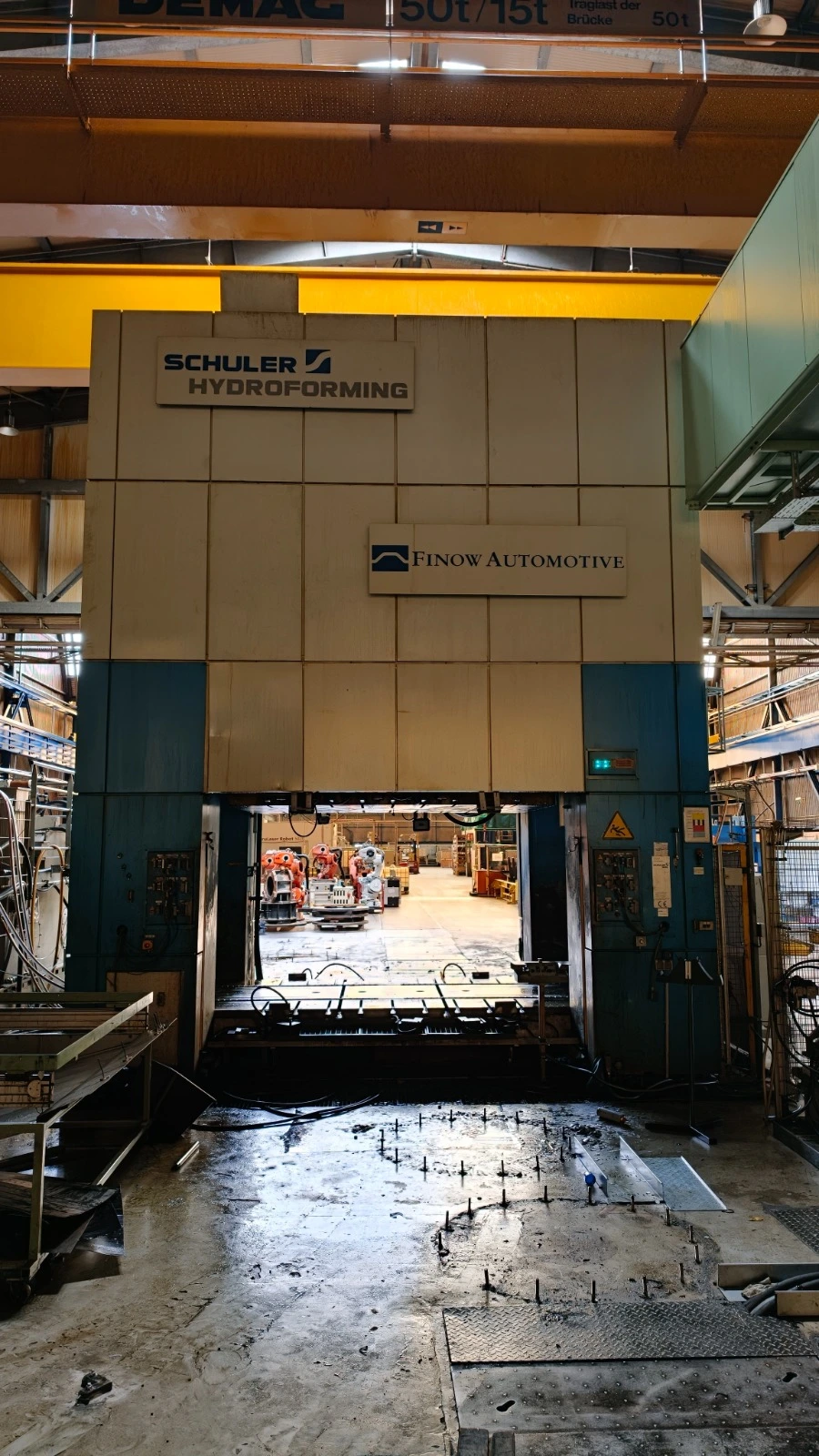

USED 2000 SCHULER 5000 TON

Capacity: 5000 Ton

4520 X 2150 mm Table
900 mm Stroke
Ram return force 1.390 kN
Ram stroke 900 mm

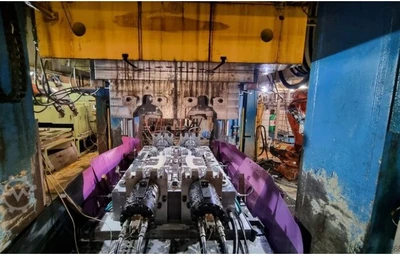

Die space (ram up) 1.900 mm
Ram area (width x depth) 3.150 x 2.150 mm
Table area (width x depth)4.520 x 2.150 mm
Clear distance between uprights (left–right) 3.280 mm
Clear distance between uprights (front–back) 2.200 mm

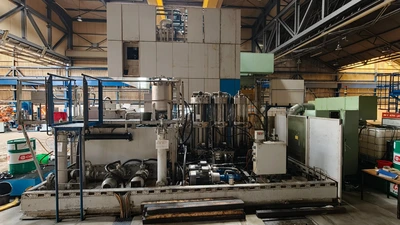

Main drive power 2 x 160 kW
Pump capacity 2 x 350 l/min at 1800 rpm
Rapid approach speed 360 mm/s
Return speed (infinitely adjustable) 234 mm/s
Working speed 6.5 mm/s
Drive up/down – X / –
Machine weight – approx. 303.000 kg
Oil quantity per tank filling – approx. 5.000 l
Operating voltage, three-phase current 400 V
Control voltage, AC 230 V
Valve voltage, DC 24 V
Frequency 65 Hz
