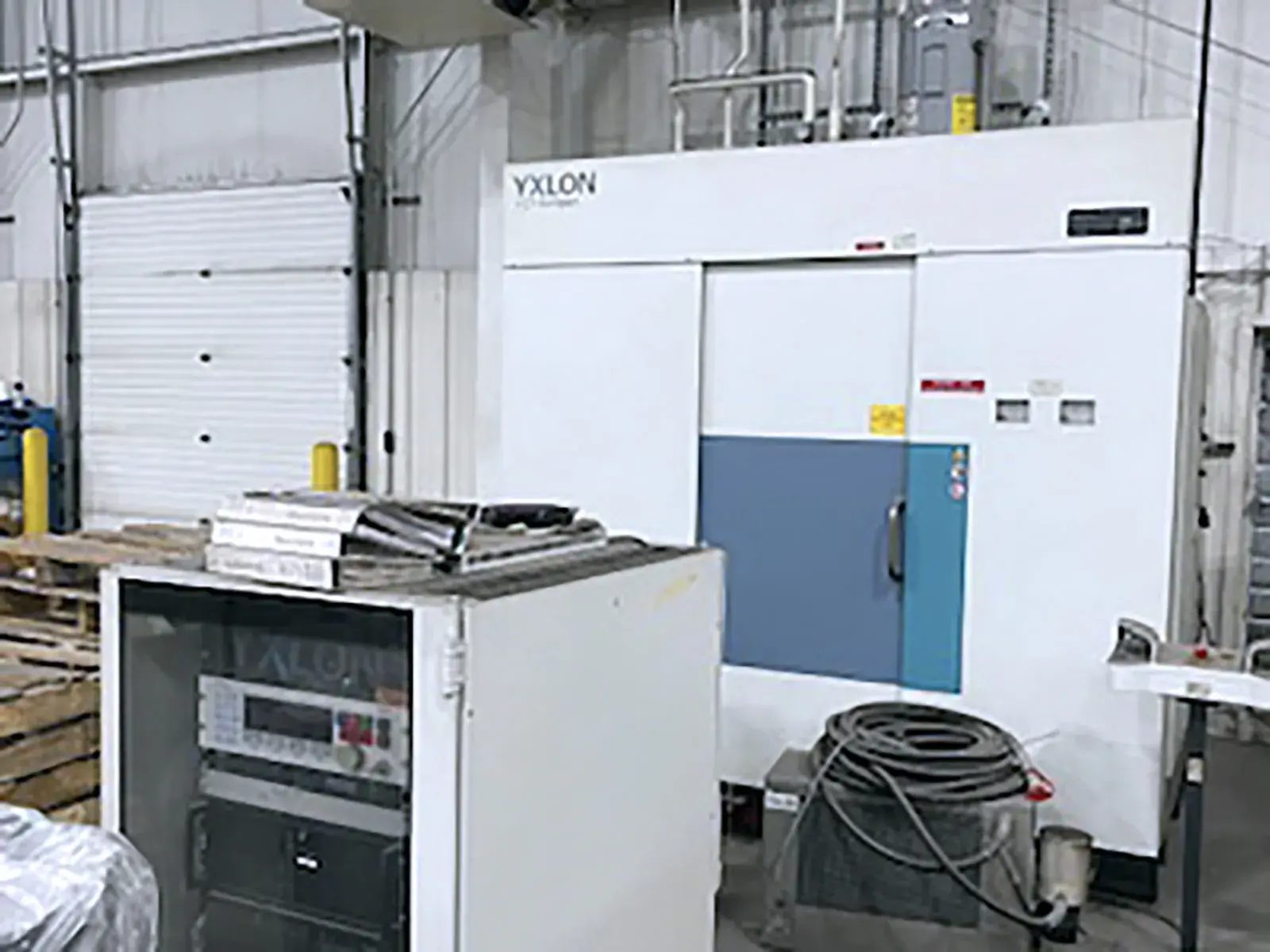

USED 2017 YXLON CT COMPACT
Overview
LOW HOURS. NEVER PUT INTO FULL PRODUCTION.
The Comet Yxlon CT Compact 450 kV Industrial CT System (2017) delivers advanced non-destructive testing (NDT), high-resolution defect detection, and precision metrology for demanding manufacturing environments. Ideal for automotive, aerospace, foundries, and additive manufacturing, it inspects dense metal components, detects internal porosity, cracks, and voids, performs CAD-to-part comparisons, wall thickness analysis, and assembly verification, ensuring superior quality control, reduced scrap, and increased production efficiency.
Specs
Standard Part Volume: 13.19" Diameter x 19.69" Height (335 mm x 500 mm)
Max Payload Weight: 110.2 lbs (50 kg)
Internal Axis Travel: 23X-Ray Source: High-energy 450 kV mini-focus tube for deep material penetration
Spatial Resolution: 2.76 mils (70 μm)
Internal Axis Travel: 23.6" (600 mm)
Line Detector Array (LDA): 254 μm Pitch
Material Penetration: 9.84" (250 mm) of Aluminum Or 2.56" (65 mm) Of Iron/Steel.
Equipped With
Yxlon System Control
Yxlon Recon Engine
Volume Graphics Package (VGSTUDIO / VGSTUDIO MAX)
