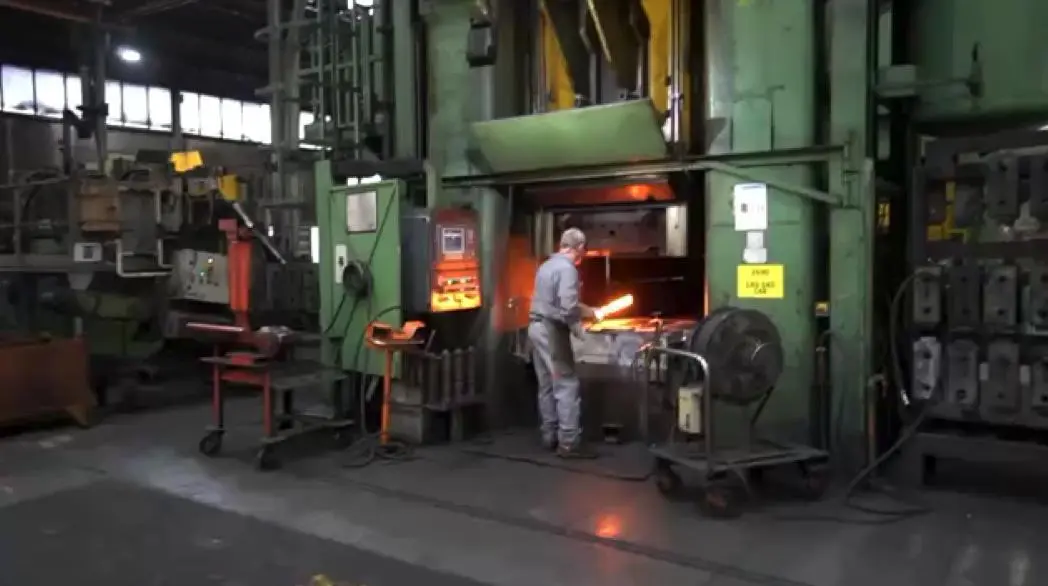

USED 1990 WEINGARTEN PSH 4.560F

Max Allowable Continuous Forging Force.............................: 53,000 kNPeak Force.........................................................: 63,000 kNGross Energy at Approx. 19.68" Stroke..............................: 630 kN.mDiameter of Screw..................................................: 22.047" Maximum Stroke Length..............................................: 23.6"Minimum Stroke Length..............................................: 9.80" Cycle Time at Maximum kW...........................................: 3.5 SecondsEffective Speed....................................................: 35 SPMDistance From Table to Ram:- Bottom of Stroke Height............................................: 49.2"- Top of Stroke Height...............................................: 72.8" - Clearance Between Guides...........................................: 59.0"
Table & Ram Specifications: - Width..............................................................: 51.2" - Depth..............................................................: 55.1"- Usable Table Width.................................................: 63.0" - Press Height from the Ground.......................................: 24.6' - Below Ground Press Base Height.....................................: 10.1'- Floor Dimensions (F-B x L-R).......................................: 6.6' x 12.8'
Total Press Weight...................................................: 230 M Tons

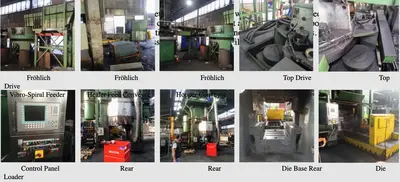

Support Equipment Includes:- Die-Changing System- Induction Heating System - 1100kW with (4) Tunnel Sizes- Full Foundation Damping Bases - Set of (25) pcs. - Electrical Control Panels - Generous Major and Control Spares- Billet Feeder System from Hopper to Induction Heater Output at Press window
