USED FAXITRON BIOPTICS LLC MULTIRAD 160

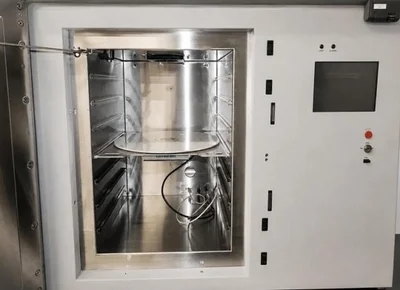

The Faxitron MultiRad 160 is a fully shielded, self-contained cabinet X-ray irradiation system designed for precise and reproducible irradiation of cells, tissues, biological samples, and selected small-animal research applications. It was developed as a safer and lower-maintenance alternative to radioisotope irradiators while providing accurate dose delivery and excellent dose uniformity.

The system features touchscreen operation, automated warm-up procedures, integrated dosimetry, closed-loop cooling, and programmable irradiation protocols. Its compact footprint allows installation in most laboratory environments without requiring additional room shielding.

---------------------------------------------------------------
Key Highlights

- Fully shielded cabinet X-ray irradiator
- Up to 160 kV X-ray energy output
- Integrated dosimeter with Automatic Dose Control (ADC)
- Touchscreen user interface
- Closed-loop cooling system
- Automatic warm-up and tube conditioning
- Programmable irradiation protocols
- Electrically operated turntable for uniform dose distribution
- No radioactive source licensing or source replacement required
- Optional imaging upgrade with high-resolution detector available
---------------------------------------------------------------

Applications / Uses

- Cell culture irradiation
- Tissue irradiation studies
- Stem cell research
- Cancer research
- Immunotherapy studies
- Radiation biology research
- Translational radiobiology
- Biological sample irradiation
- Radiation injury studies
---------------------------------------------------------------

Typical Specifications (Summary)

- X-Ray Energy: Up to 160 kV
- Tube Current: Up to 25 mA
- Maximum Power: 4000 W
- Dose Rate: Up to 300 Gy/min (unfiltered)
- Dose Rate (2 mm Al Filter): Up to 32 Gy/min
- Focal Spot: 5.5 mm (irradiation), 1.2 mm (imaging)
- Beam Angle: 40° divergence
- Source-to-Sample Distance: 13–65 cm adjustable
- Exposure Mode: Programmable or continuous
- Cooling: Integrated closed-loop heat exchanger
- Turntable: Electrically operated, 2 RPM
- Chamber Dimensions: Approx. 58 × 41 × 43 cm
- External Dimensions: Approx. 188 × 108 × 88 cm
- Weight: Approx. 960 kg (2120 lbs)
- Power Requirements: 220 VAC, 50/60 Hz, Single Phase, 7.5 kVA
---------------------------------------------------------------

Typical Configuration Includes

- MultiRad 160 irradiator cabinet
- X-ray tube assembly
- Integrated dosimetry system
- Touchscreen control console
- Adjustable sample shelf
- Motorized turntable
- Closed-loop cooling system
- Safety interlock system
- Documentation and software
