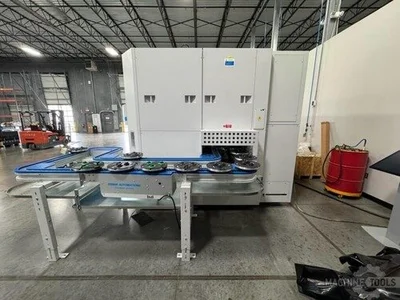

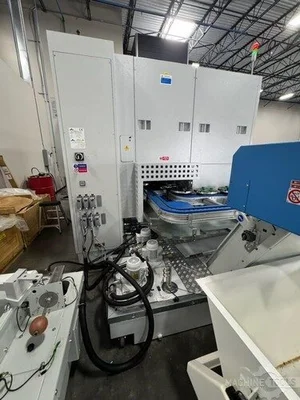

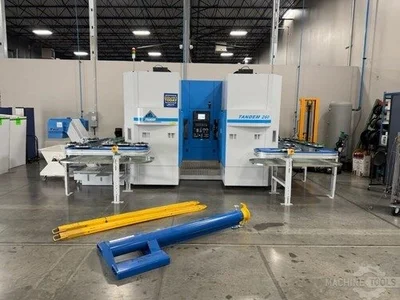

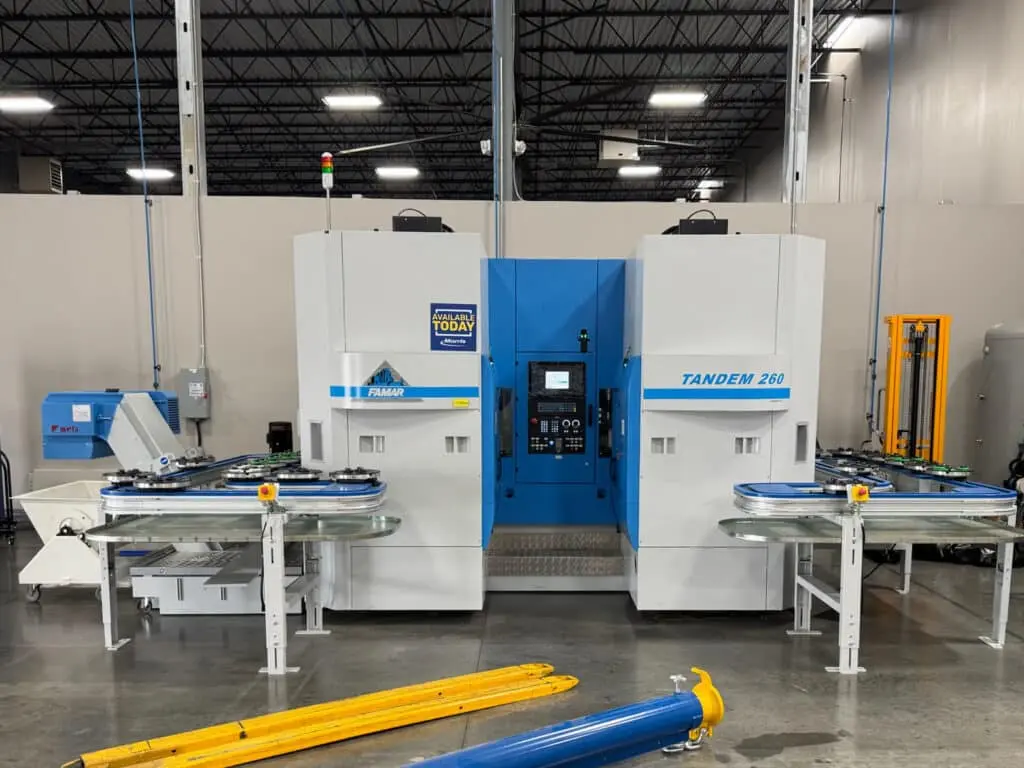

USED 2024 FAMAR TANDEM 260

General Info

Stock #: 111260009
Location: NC
Brand: Famar
Model: Tandem 260
Year: 2024

Specifications

Standard chuck diameter [mm]: 260
Max chuck diameter [mm]: 260
Nominal turning diameter [mm]: 180
Max turning diameter [mm]: 250
Max swing diameter [mm]: 400
Max turning length [mm]: 240
Toolholders type [VDI]: 40
Toolholders [N°]: 12
Max power [kW] (turret): 12,5
Max torque [Nm] (turret): 88
Max speed [Rpm] (turret): 8000/10000
Max tools length [mm]: 220
Indexing time [sec]: 0,25
Machine Weight [kg]: 18000
Conveyor height [mm]: 1050
Compressed air [bar]: 5
Loading/Unloading time [sec]: 6 - 10
Spindle nose ISO 702-1 [Size No.]: 6
Front bearing ø [mm]: 110
Spindle nominal power [kW] S1 100%: 23,6
Spindle nominal torque [Nm] S1 100%: 146
Spindle max torque [Nm]: 196
Spindle max speed [Rpm]: 5300
Pipe diameter [Inch]: 1 ¼
Pressure [bar]: 5
Average consumption [l/min]: 200
Electrical connection - Rated output [kW]: 75
Voltage [V]: 400
Frequency [Hz]: 50
Rated current [A]: 110
Min. feeding cable section [mm²]: 35
Mist extraction - Suction pipe diameter [mm]: 100
Suction capacity [m³/h]: 2100

Equipped With

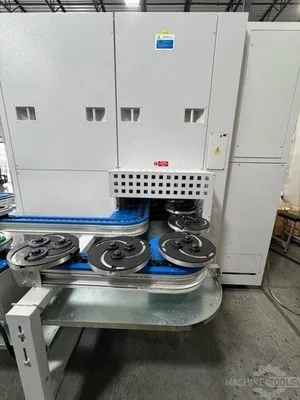

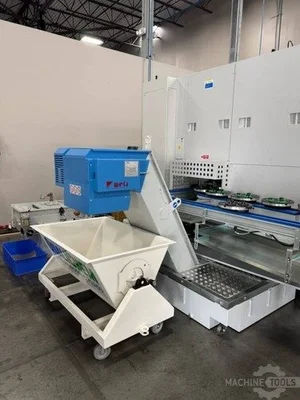

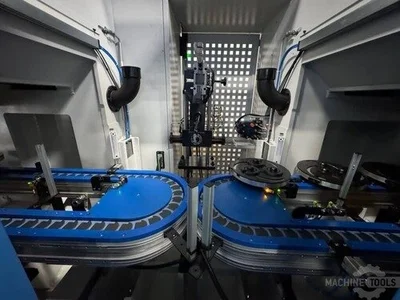

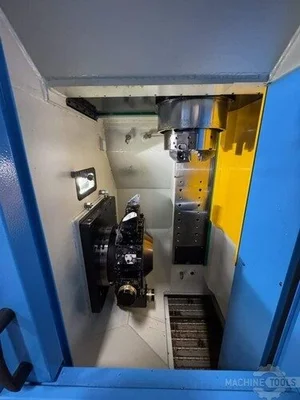

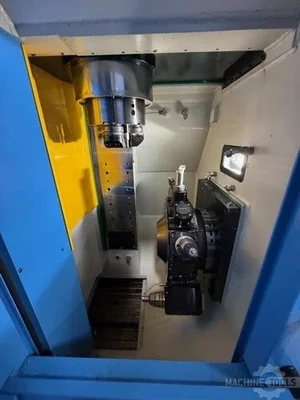

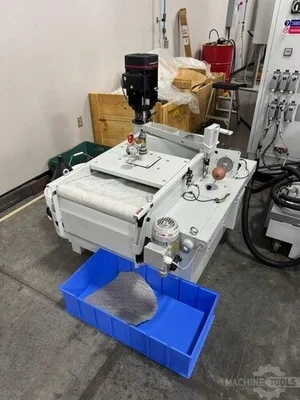

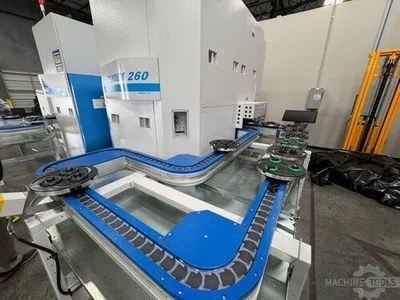

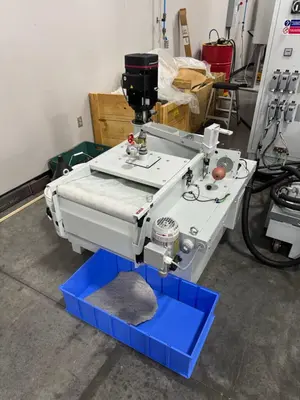

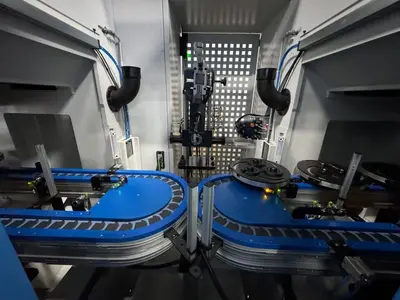

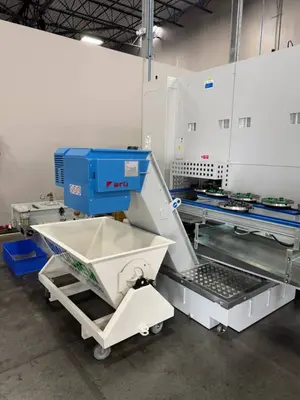

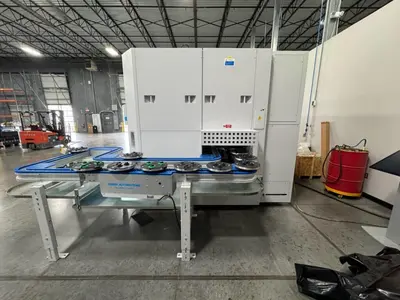

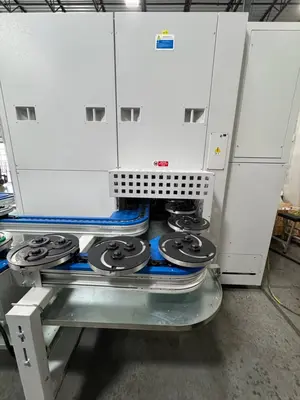

High Pressure Pump 20 Bar 40L/min, Paper Filter 30 micron with 400 L-Tank, Chip Conveyor Belt Type - Closed Chain, Coolant Tank, (2) Driven Tools Turret Famar 40, (2) Famar FIT 70 Tools Disc for Driven Tools with 12 Attachments, (8) FIT 70 Cover for Empty Tool Attachment, (2) Arrangement for Clamping System Size 260, Clamping Position Checked by Air (Air Clamping Control), (2) Customer Fixture Assembly and Testing, (2) Hydraulic Lower Spindle Brake, (2) Standard In Process Measuring Device, Automation Line with Pallets (Part Weight 10kg Max x Nr. Pallets 20x2 Max), (40) Selfcentering Pallet, (2) Z Axis Linear Scale
