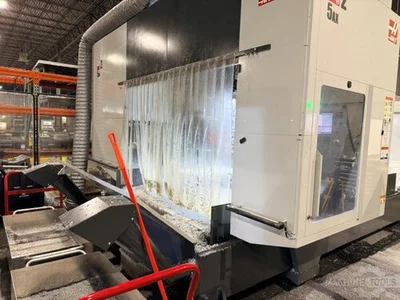

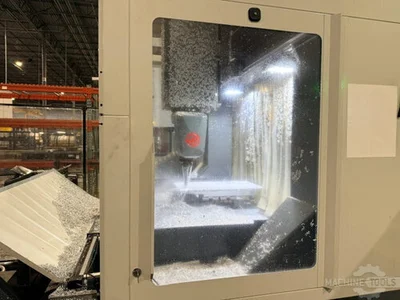

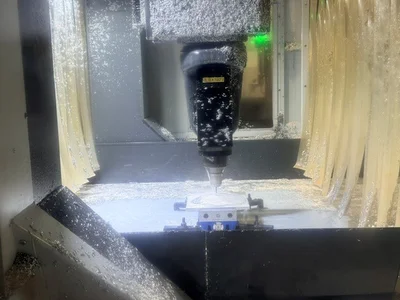

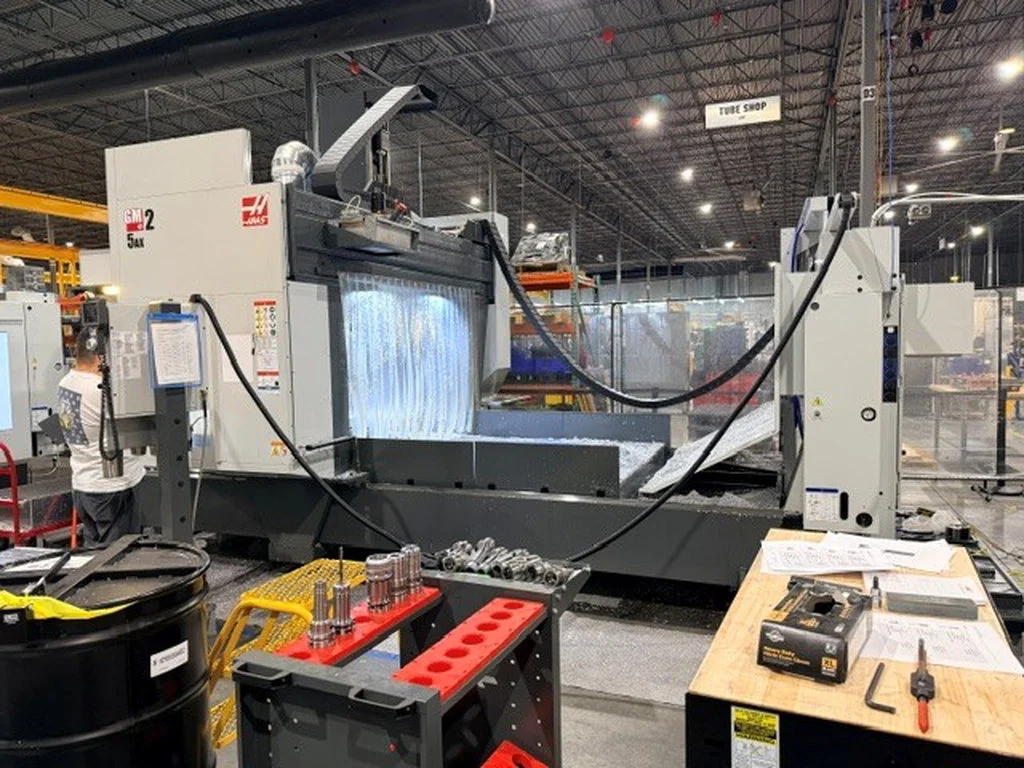

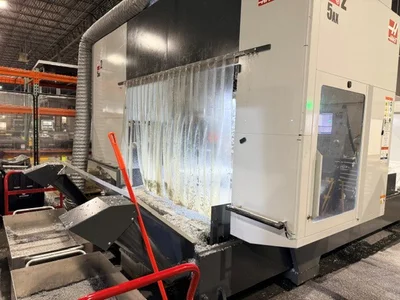

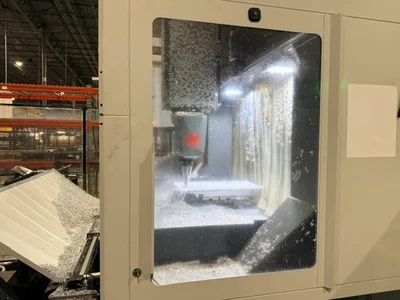

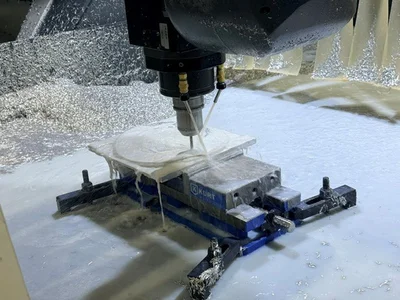

USED 2024 HAAS GM-2-5AX
Overview
Machine can be demoed upon request
Specs
X-Axis Travel: 145″
Y-Axis Travel: 87.5″
Z-Axis Travel: 39.30″
Spindle Nose to Table (Max – Min): 37″ – 5″
Maximum Spindle HP: 16 HP
Maximum Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
B-Axis Tilt Range: 120+ degrees to 120- degrees
C-Axis Rotation Range: 245+ degrees to 245- degrees

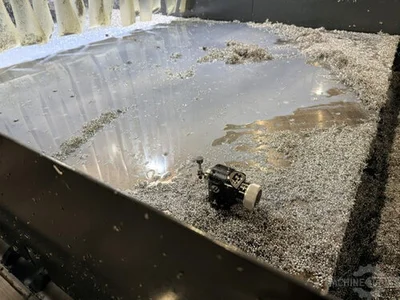

Table L x W: 144″ x 72″
Max Workpiece Weight (Evenly Distributed): 6,000 LBS.
Maximum Cutting Feedrate: 472 IPM
Rapids (X ,Y, & Z): X: 472 IPM, Y: 1,889 IPM, Z: 1,181 IPM

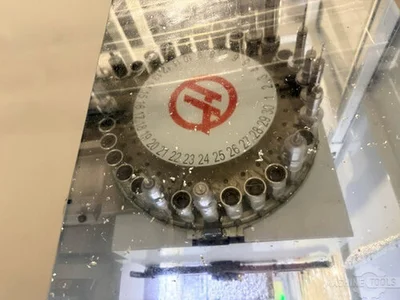

Tool Changer Type & Capacity: SMTC, 30+1
Coolant Capacity: 95 Gallons
Electrical: 220V / 3PH / 40 FLA
Equipped With
Haas NGC Control, 64GB Expanded Memory, High Speed Machining, Dynamic Work Offset & Tool Center Point Control, Early Power Failure Detection Module, Ethernet Interface, Haas Connect, Haas Drop, Second Home Position, Media Display, Large Touchscreen Remote Jog Handle, Rigid Tapping, Power Surge Protection, Control Touch Screen, Wi-Fi Connection, Wireless Intuitive Probing System (WIPS), 20K RPM HSK-A63 Spindle, 30+1 Side-Mount Tool Changer, Coolant System, Chip Auger, Control Cabinet Cooler, Steel Table (Inch)
