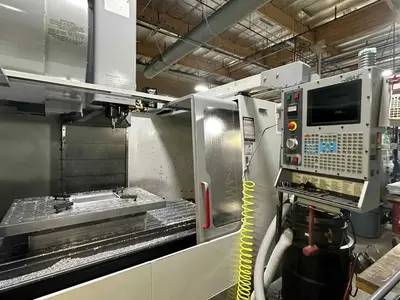

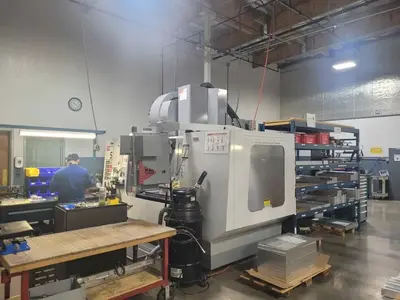

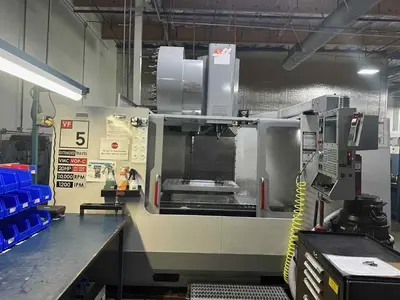

USED 2002 HAAS VF-5/40

2002 HAAS VF-5 Extended Travel VMC 4-Axis Probing HSM VOP-C 40 ATC CNC Mill
🙂
2002 HAAS VF-5 Extended Travel VMC, 4th-Axis Drive, WIPS Probing, High-Speed Machining, Auto Door, VOP-C Package, 40 ATC FOB Silicon Valley, CA
🙂
Specifications
X Axis Travel: 50"
Z Axis Travel: 25"
Y Axis Travel: 26"
Rapid Rate X Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Extended Travel: Yes
Machine Type: VMC
Control/Option Code: VOP-C
4th-Axis Drive & Wiring: Yes
Wireless Probing System (WIPS): Yes
High-Speed Machining: Yes
Automatic Door: Yes
Specialized Coolant Management Features: Yes
Spindle System: 20HP Vector Dual Drive
Max Feed Rate / Rapids: 1200 IPM
Programable Coolant Nozzle: Yes
Chip auger: Yes
🙂
Description
Step up your production capabilities with this highly capable, heavily optioned 2002 HAAS VF-5 Vertical Machining Center. This robust Extended Travel VMC is engineered for precision, rigidity, and high-velocity performance across substantial workpieces. Maintained in a premium environment, this very clean, low-hour machine represents an exceptional value for shops looking to scale their milling output immediately without the premium cost of new infrastructure.
🙂
Key Features & Benefits
Equipped with a fast 10,000 RPM spindle and an upgraded 1200 IPM rapid rate layout, this VF-5 maximizes throughput and minimizes cycle times. This premium configuration features the comprehensive Haas Value Option Package C (VOP-C), transforming this mill into a fully loaded production powerhouse complete with 4th-axis drive and wiring, a Wireless Probing System (WIPS) for fast setups, High-Speed Machining capabilities, an automatic door, and advanced specialized coolant management. Backed by the Haas Vector Dual Drive system for heavy-duty cutting, a generous 40-station automatic tool changer (ATC), a programmable coolant nozzle, and a built-in chip auger, this machine is fully configured to handle complex, multi-tool operations with minimal operator intervention.
🙂
Dimensions & Weight
Physical Footprint: Width: 101 to 102 inches (257 to 259 cm). Depth: 136 to 168 inches (345 to 427 cm) depending on the enclosure and side-mount tool changers. Height: 105 to 130 inches (267 to 330 cm
Weight: Approximately 12,700 lbs
Shipping & Location Details
🙂
Location: Silicon Valley, CA
This machine is offered FOB Silicon Valley, CA. Buyer is responsible for all applicable freight and rigging expenses.
🙂
