USED HOESCH 1200mm 60 cu ft

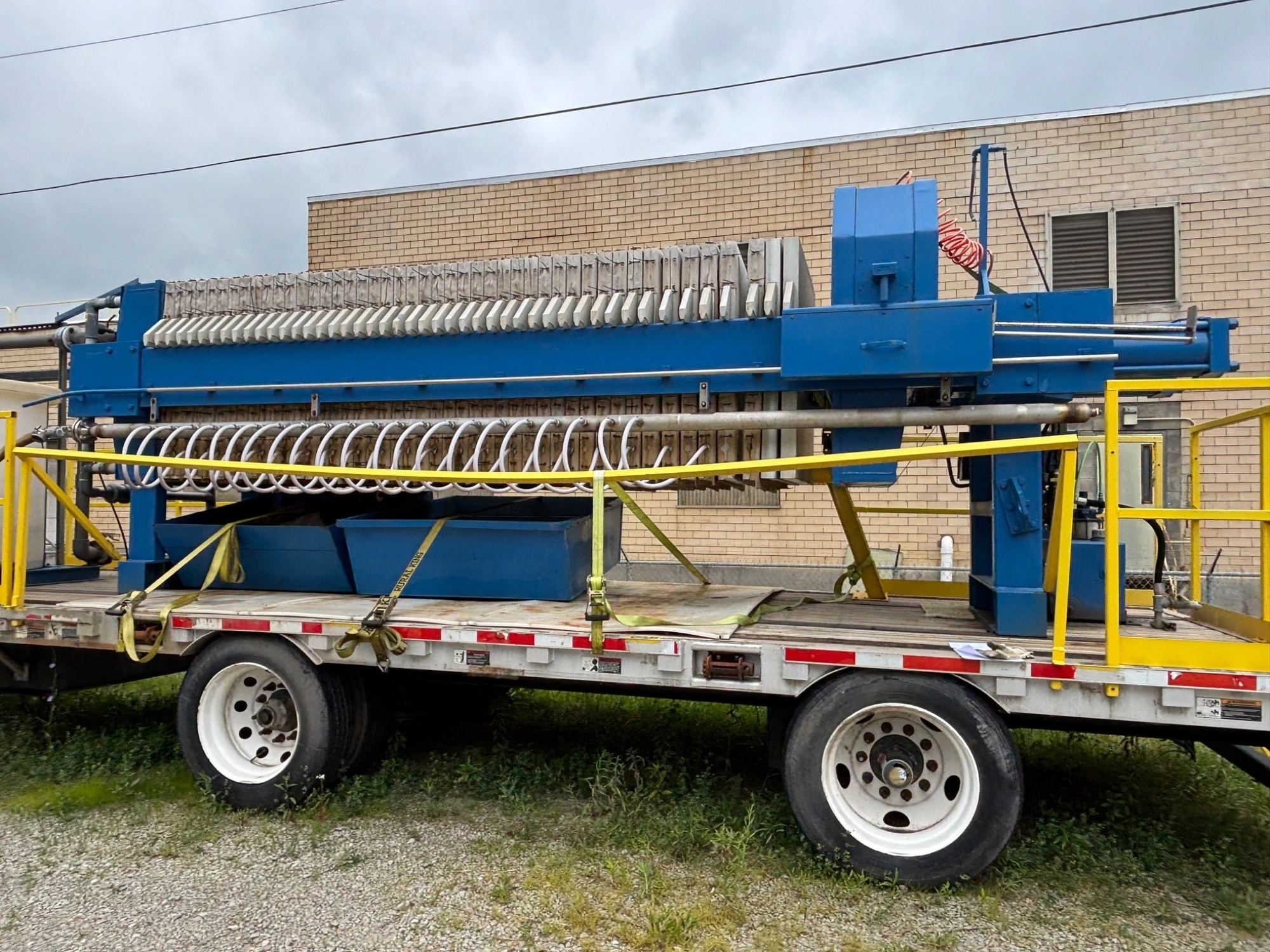

Used trailer mounted Hoesch 1200mm 60 cu ft membrane style filter press
Semi automatic plate shifter
Hydraulic closure
46 recessed membrane style filter plates
Top corner feed with three corner discharge design
Pressurized water feed system mounted on the trailer Includes: Control panel, automated valves, manual valves, pvc piping, feed pumps and polyethylene water storage/feed tank
Also includes pumps that feed a SS manifold assembly Off this manifold pressurized water is fed thru tubing to each membrane plate for the squeeze cycle

At the front end of the trailer are two storage tanks for holding and thickening solids prior to feeding the filter press. The first steel tank has internal baffles and a mixer rail system. This mixer is missing. The second steel tank is coned bottom with mixer rails and a gear drive agitator. Between the two tanks is an access platform and catwalk for access to both tanks where a control box is mounted for agitator control in each. Going down along the side of the filter press is an elevated catwalk for access to the filter plates during cleaning. There are two (2) drop down ladders to provide easy entry and exit off the trailer deck
