USED 2021 HEXAGON 7.10.7 SF
Overview

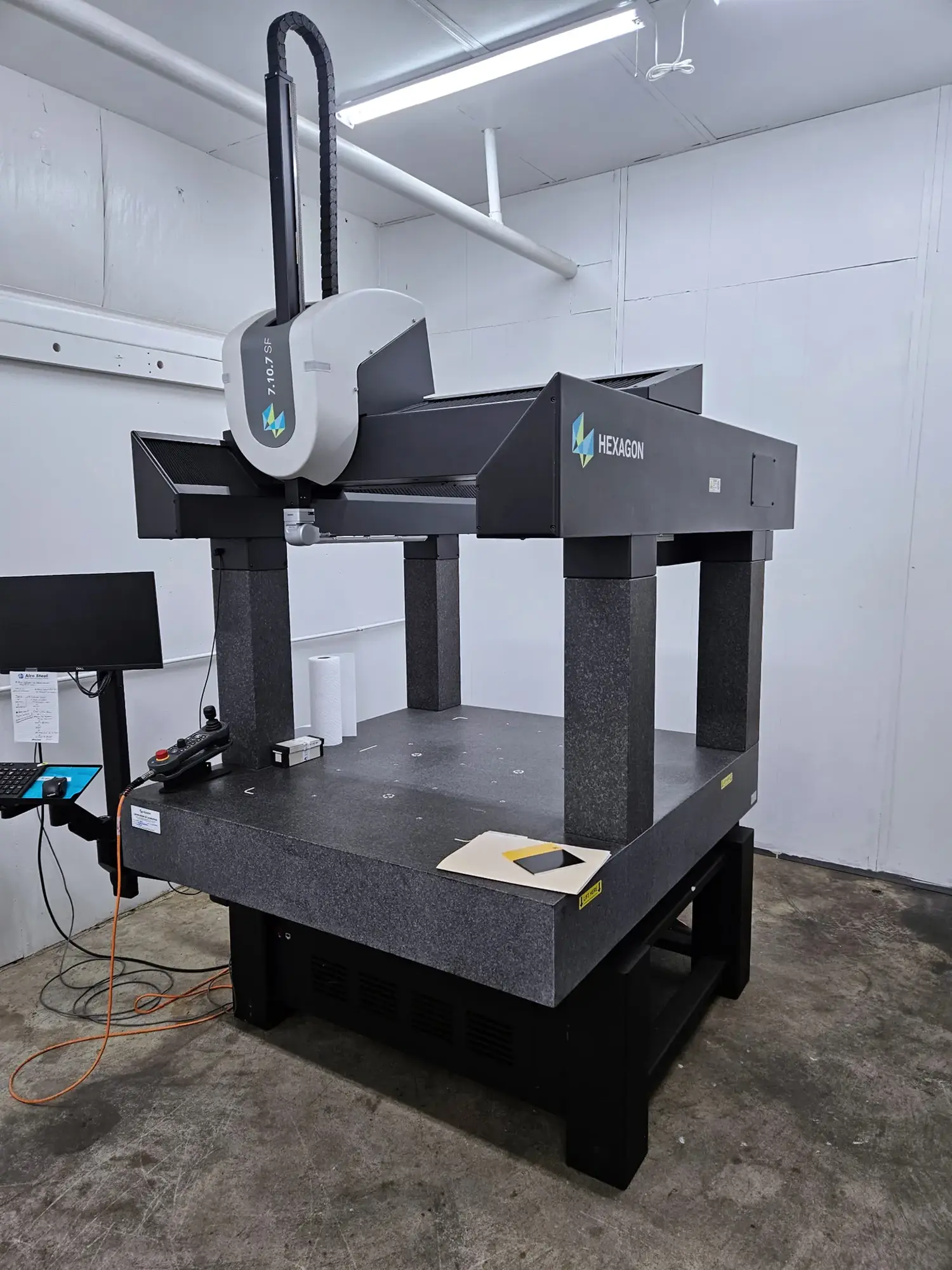

The Hexagon 7.10.7SF Coordinate Measuring Machine (2021) with PC-DMIS control delivers fast, high-accuracy dimensional inspection directly on the production floor. Designed for demanding manufacturing environments, it verifies machined components, detects process variations, and integrates seamlessly into production cells. Ideal for automotive, aerospace, precision machining, and high-volume CNC manufacturing, it reduces scrap, improves quality control, and maximizes productivity with real-time measurement and inspection.
Specs
Never run a part
Last calibration was 2023
Software PC-DMIS 23
Trigger Probe
all other tooling and specs need to be confirmed by buyer
Measuring envelope: 27.95" (X) × 39.76" (Y) × 26.77" (Z)
Work capacity: 34.50" (X) × 54.72" (Y) × 31.22" (Z)
Max Workpiece Weight: 2,000 lbs
overall size: 87.01" (L) × 69.06" (W) × 108.66" (H)
Weight: 3,711 lbs
Performance & Motion Resell CNC
Max 3D velocity: 520 mm/s
Acceleration: 1,732 mm/s²
X, Y, Z travel: 27.56" / 39.76" / 26.77"
Electrical & Setup Hexagon+1
Power: 110/220 VAC (no shop air required)

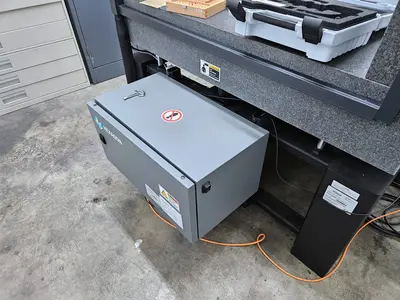

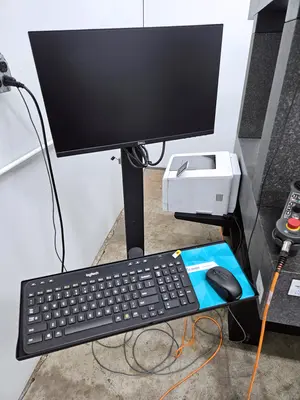

Self-contained unit with integrated computer, controller, and interface boxes
Accuracy Nexus
ISO 10360-2 (2009) reference: 3.1 μm + 0.05 + (3.0 + 0.2) L / 1000 at 20 °C
Temperature Range: 15–40
Equipped With
Never run a part
Last calibration was 2023
Software PC-DMIS 23
Trigger Probe

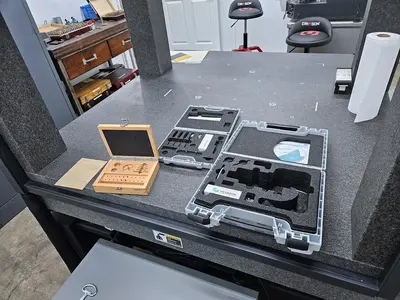

all other tooling and specs need to be confirmed by buyer
