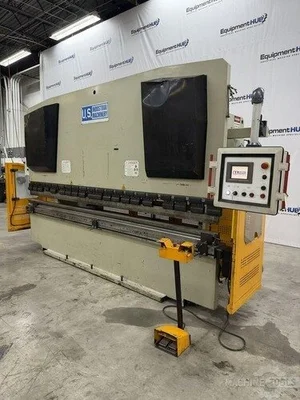

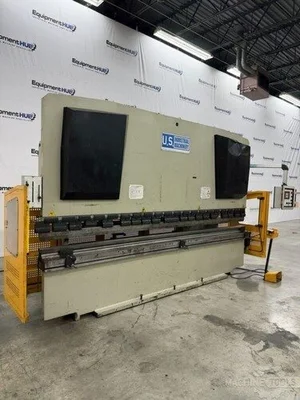

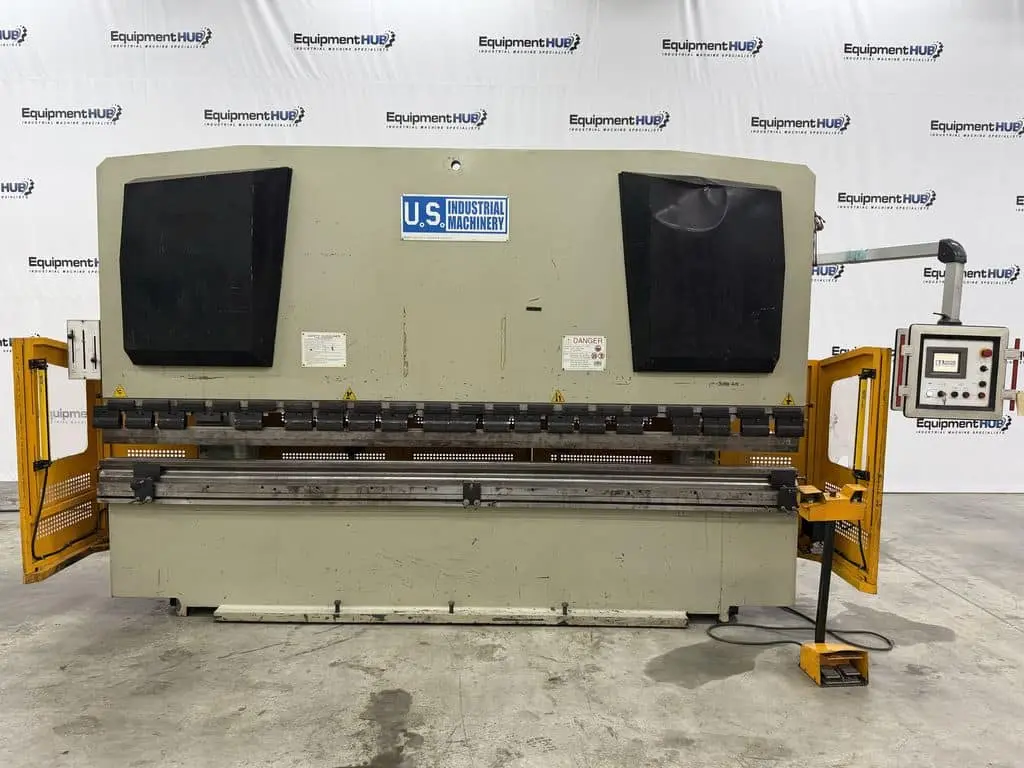

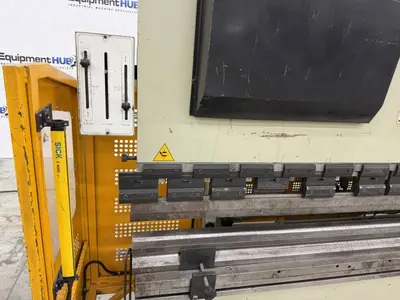

USED U.S. INDUSTRIAL US200-13AC

General Info

Stock #: 120260014
Stock #: 120260014
Location: Decatur, GA

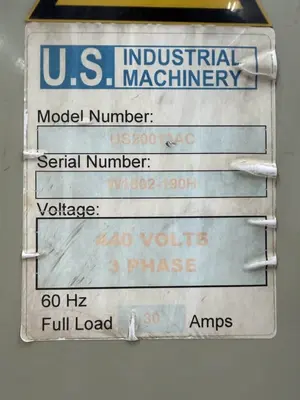

Brand: Us Industrial

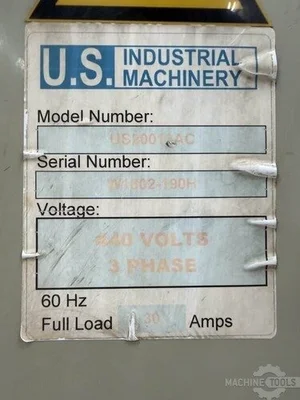

Model: US20013AC
Serial #: W1802-190H
Approx. Shipping Weight: 30,000 Lbs.
Approx. Shipping Dimensions: 15'4" L x 7'6" W x 8'9" H
Loading Fee: Rigging Required

Specifications

Tonnage: 200 Tons
Length Of Working Table: 157.4″
Distance Between Housings: 124″
Throat Depth: 12.5″
Stroke Adjustment Of Ram: 2.75″
Ram Stroke: 7"
Open Height: 17.5"
Rapid Ram Travel Speed: 2.4″/Sec.
Rapid Ram Retreat Speed: 2.0″/Sec.
Backgauge Travel: 24″
Motor HP: 20
Electrical: 220V/3PH

Equipped With

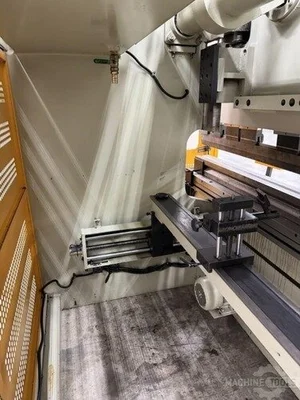

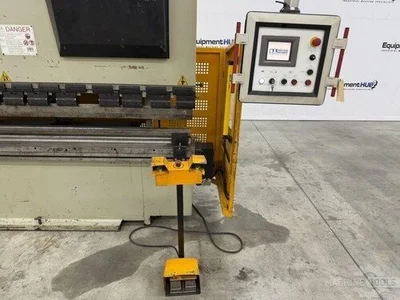

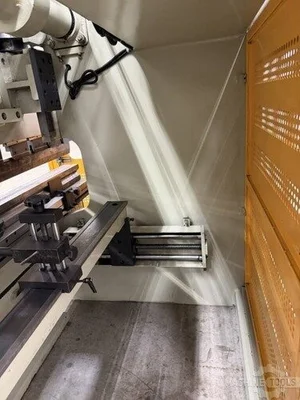

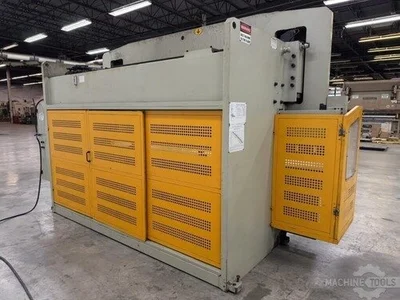

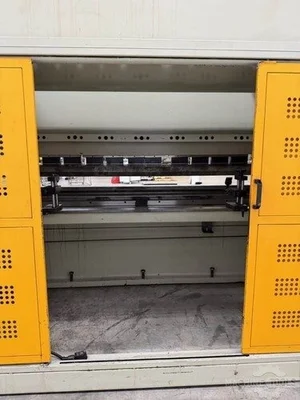

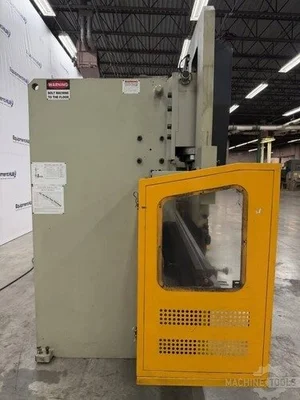

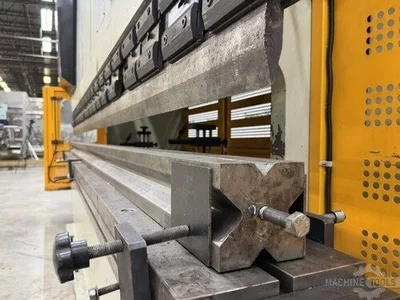

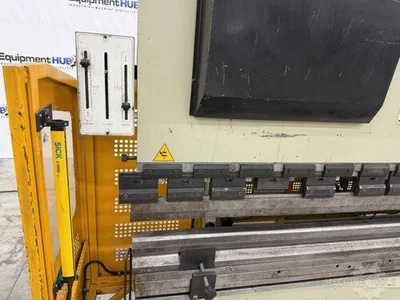

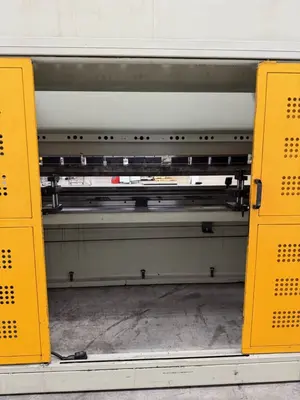

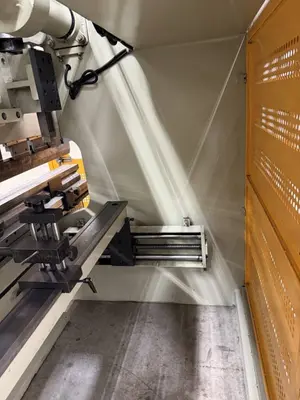

CNC Touchscreen Controller (2-Axis, X & R), AC Servo Driven CNC Backgauge, Sick C4000 Light Curtains, Segmented Quick-Clamp Upper Tooling, Multi-V Lower Die With Bolt-On Clamps, Crowning, Dual-Button Foot Pedal (Up/Down), Full Rear Safety Enclosure With Perforated Doors And Viewing Windows, Mitsubishi Plc And Vfd Drives, Abb Contactors, Hydraulic Pressure Gauge, Press Brake Bending Chart, Press Brake Lubrication Chart Die

Additional Info
The US Industrial Press Brake can be demoed upon request. Check out the video on the listing to see it in operation.
