USED 2013 SEYI SLS2-176

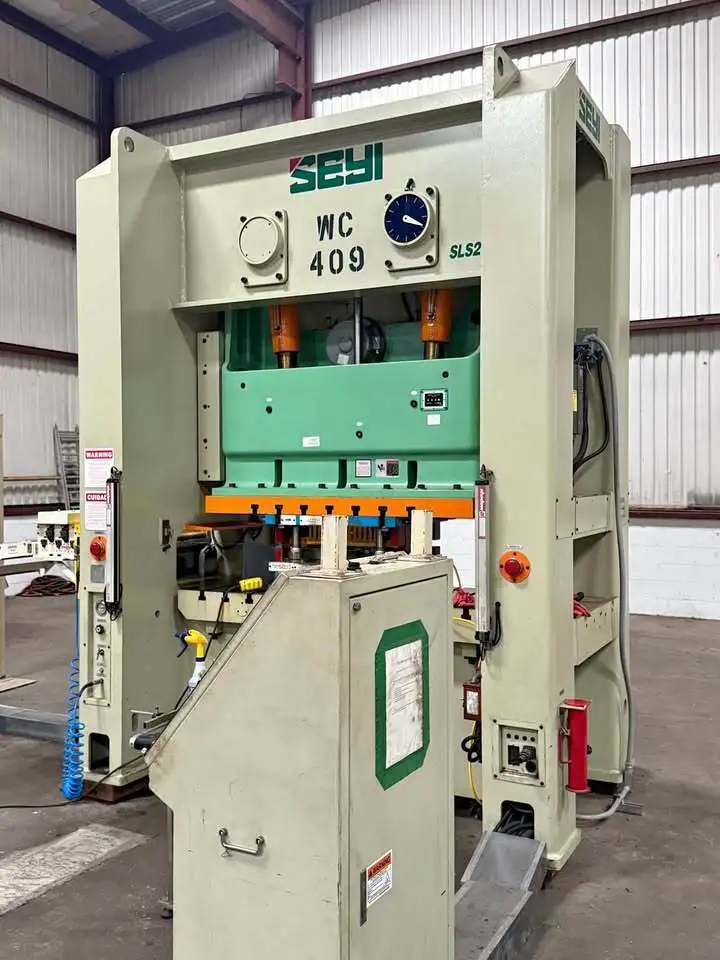

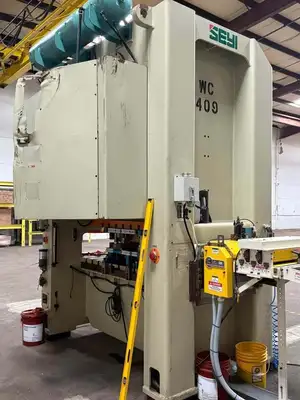

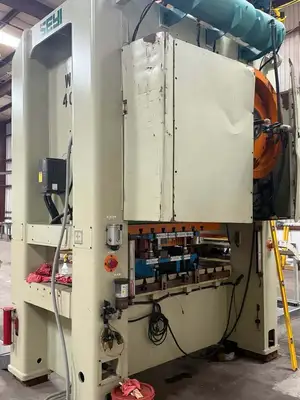

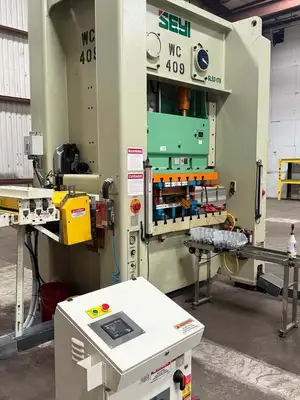

Seyi SLS2-176H Straight Side Two Point Double Crank Press (2013)

Capacity - 176 us TON
Stroke - 5.12"
Max Die Height - 15.75" SDAU over 6.3" bolster
Beb Area - 72.83" X 29.92" (RL X FB)
Slide Area - 61.42" X 25.59" (rL X FB) (t-slot)
Bolster PLate - 72.83" X 29.92" (RL X FB) X 6.3" THICK
Speed - 40-90 SPM (STROKES PER MINUTE)
Slide Adjustment - 3.94" motorized
Distance Between Uprights - 75"
Floor To Bed: 31" - 37.25" FROM FLOOR TO BOLSTER
Window Size: 26" X 13.5" (WIDE X HIGH)
Clutch - SEYI AIR CLUTCH
Press Controls: OMRON G3F-203SN RELAYS
Electric Motor - 20 HP 220/440V-3-60 DELTA VFD-B AC MOTOR DRIVE | 50/25 AMPS
APPROX. DIMENSIONS 115" X 104" (RL X FB) X 147" HIGH
APPROX. WEIGHT 46,000 LBS
