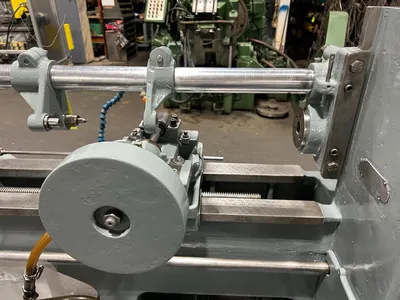

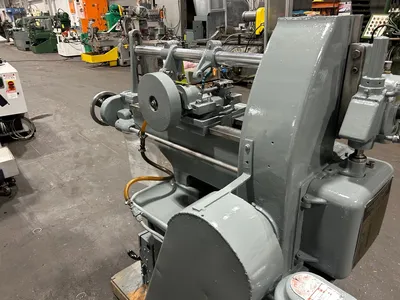

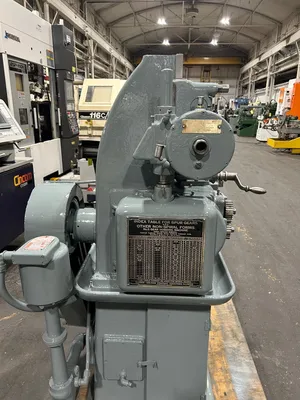

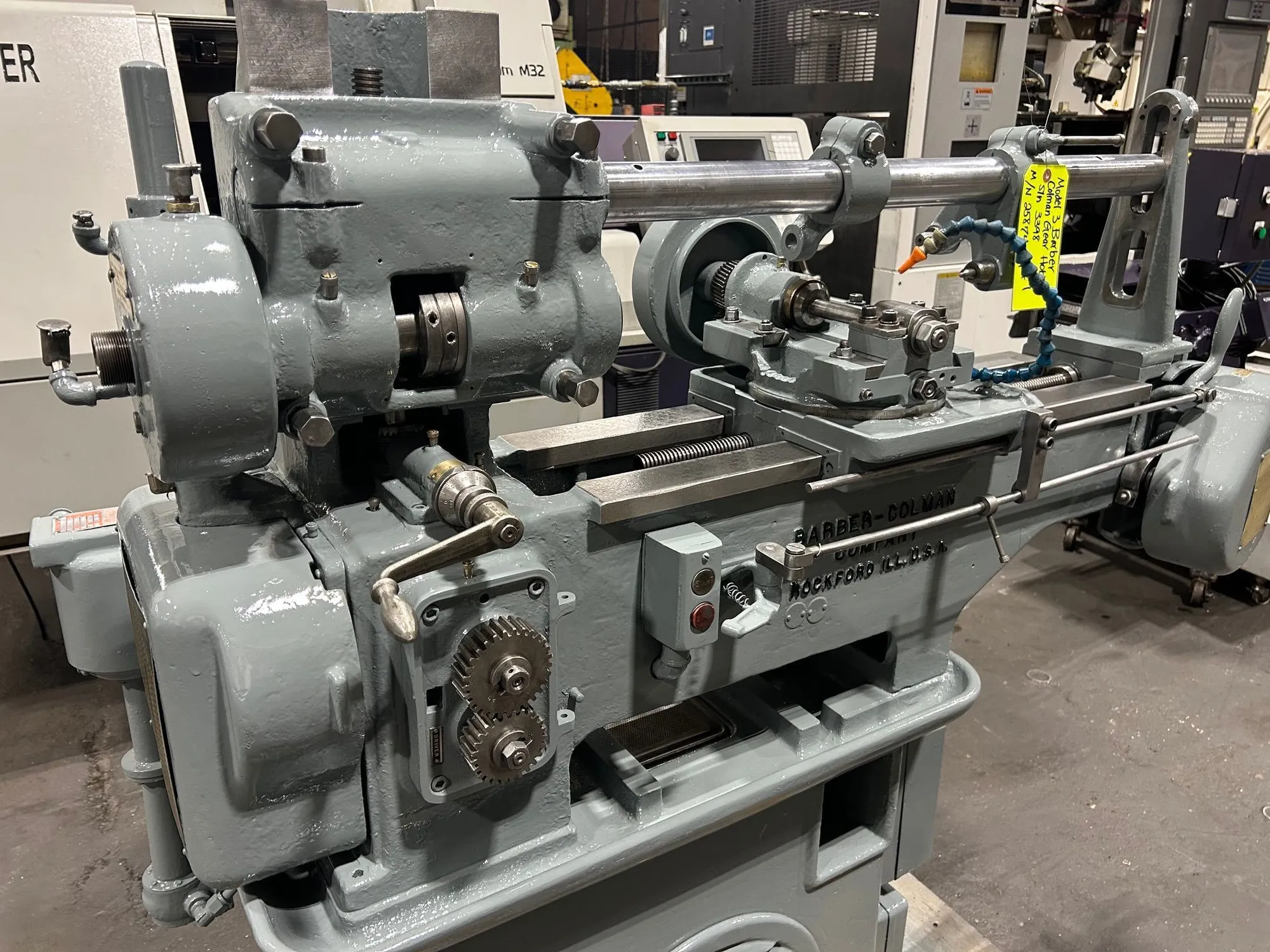

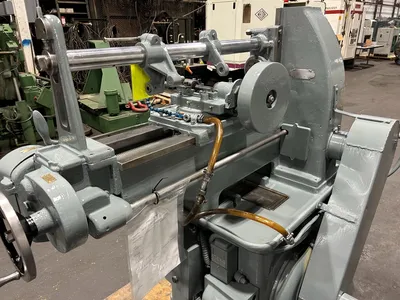

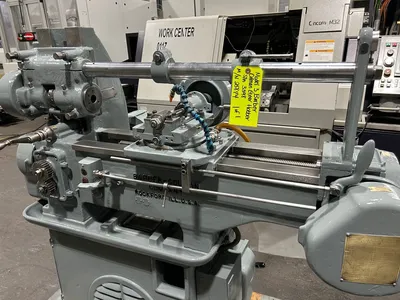

USED BARBER COLMAN #3
Overview
The Barber-Colman No. 3 is a legendary, horizontal gear hobbing machine. It is engineered to cut high-precision spur gears, helical gears, splines, pinions, and worm gears. It utilizes an indexing mechanism and a rotating hob cutter to continuously generate gear teeth.
Specs
Specifications:
Capacity, Diameter: 5"
Capacity, Face: 7"
Capacity, Diametral Pitch, Cast Iron or Steel: 12
Centerline of Work Spindle to Underside of Overarm: 3"
Maximum Travel of Hob Slide: 11-9/16"
Maximum Distance from Centerline of Work Spindle to Centerline
of Hob Spindle: 3-7/8"
Maximum Hob Diameter: 2-1/16"
Diameter Hob Spindle: 3/4"
Hob Spindle Speeds (8): 533,453,388,309,230,183,157,133 RPM
Work Spindle, Taper in Nose: No. 9 B&S
Work Spindle, Hole Diameter: 29/32"
Feed, Maximum, Per Revolution of Work: .150"
Feed, Minimum, Per Revolution of Work: .015"
Motor, Power: 2 HP
Motor, Speed: 1200 RPM
Drive: V Belt
Floor Space, Required: 61" x 30"
Weight of Machine, Approximate: 2,000#
