USED Highcon Beam 3
Overview

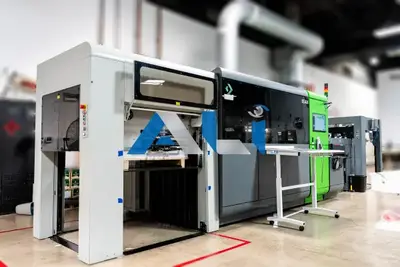

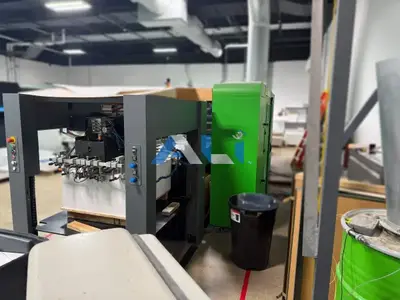

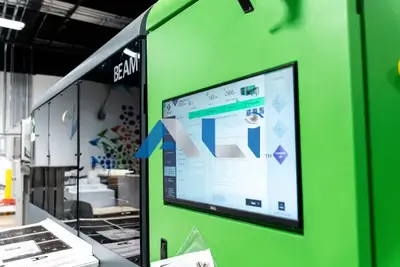

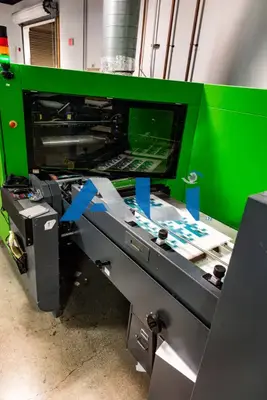

2019 HighCon Beam 3 Die Cutter
Great die cutter that was upgraded from Beam 2 to Beam 3 with low count. This is a great offering from Asset Liquidity's offset and bindery printing equipment.
Specs
Upgraded to Beam 3 in field in September 2024
Sheet count: 3,233,225
Type: Sheet Fed Laser Die Cutter

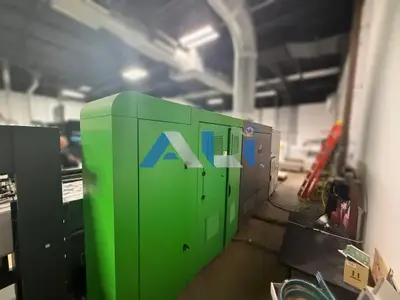

Comes with: Lauda chiller & Cyclone Exhaust unit
Max Format: 30” x 42” (760 x 1060 mm)
Min Format: 19.7” x 27.6” (50 x 700 mm)
Substrate
Catronboard & Labels cutting: 8 – 36 pt.
Cartonboard & Label creasing: 8 – 24 pt.
Microflute: 47 pt.
Corrugated: 78 pt.
Max throughput: 5000 s/h
Pile Height with pallet feeder: 3.6’
Pile Height with pallet delivery: 3.3’
Net cutting: 29” x 41” (745 x 1050 mm)
Gripper margin: .47 (12 mm)
Machine dimension: 28’ x 7’ x 7’
Weight: 8 tons
camera registration (so it's installed) but it didn't work for our application.
CAD light is on the machine but whom ever buys it will need a full CAD license in order to edit/make cut and crease files
