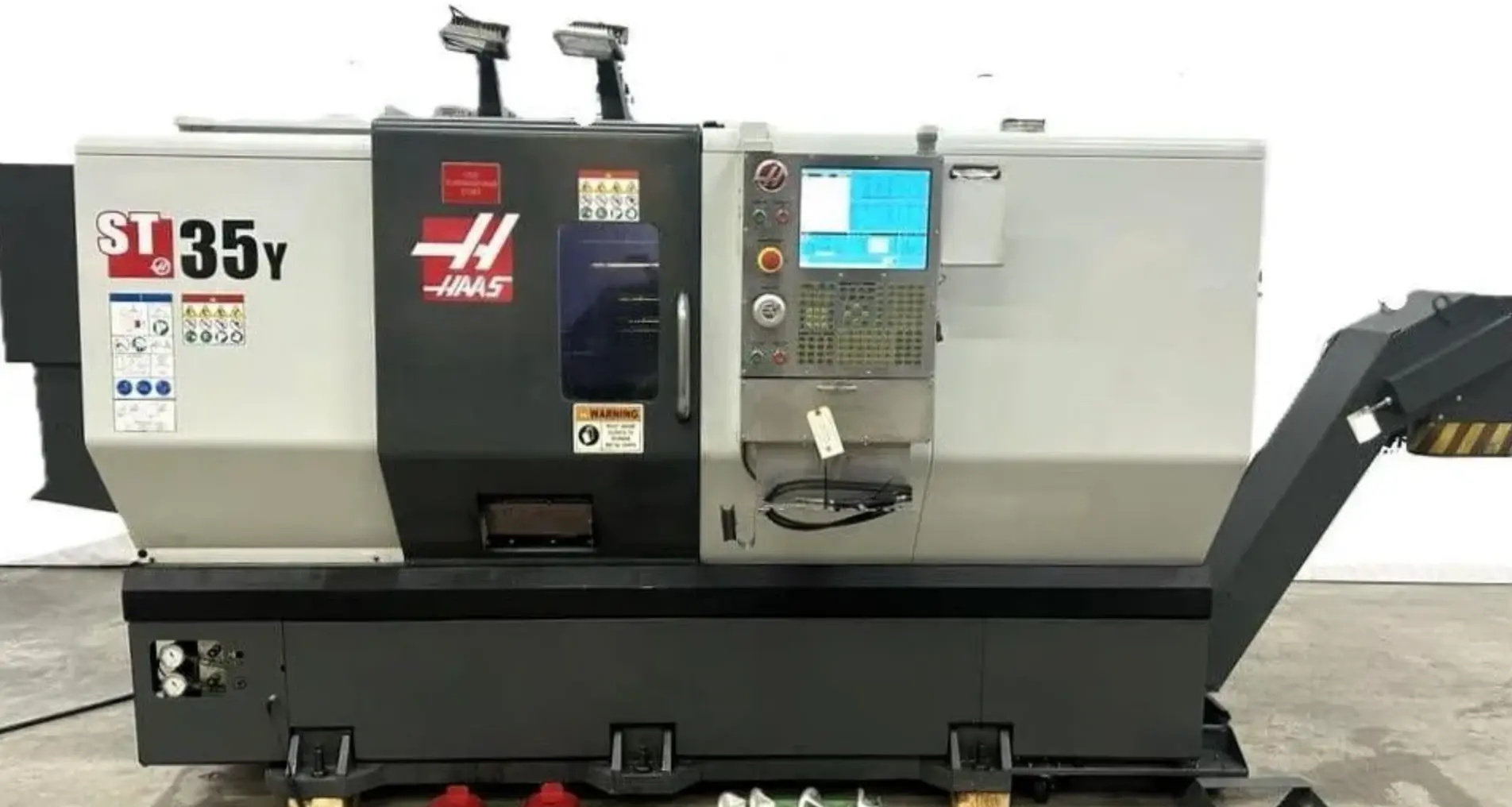

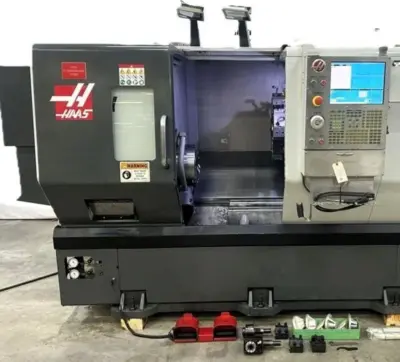

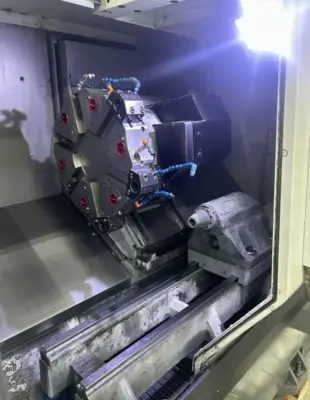

USED 2016 HAAS ST-35Y
Overview
Used CNC Lathe with live tooling, 12" chuck, 4" bar capacity, and 40 hp power. Features a 12-station turret, 31.75" swing, and 3200 RPM max speed. Includes Haas Next-Gen LCD, Hennig chip conveyor, and Loc-Line coolant system.
Specs
Swing Over Bed:31.75″
Max Cutting Diameter:12″
Max Cutting Length:32.5″
Bar Capacity:4″

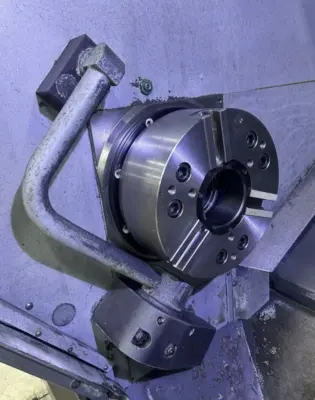

Chuck Size:12″
Spindle Nose:A2-8
Spindle Bore:4.62″
Draw Tube Bore:4.06″
Spindle Speed:0-3,200 RPM
Spindle Torque:425ft-lb @ 325RPM
Peak Horsepower: 40HP
X-Axis Travel:4.0"
Z-Axis Travel:32.5"
Turret:12 Station Hybird BOT/VDI
Coolant Capacity:55 Gallons
Electrical: 220V/3PH
Equipped With
Y-Axis Live Tooling
12-Station Hybrid BOT / VDI Turret

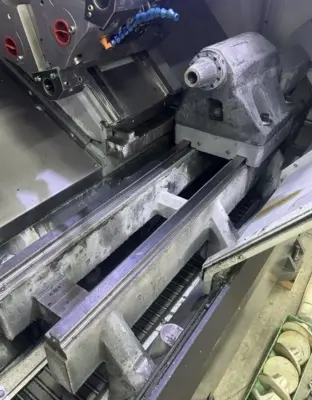

Hydraulic Programmable Tailstock

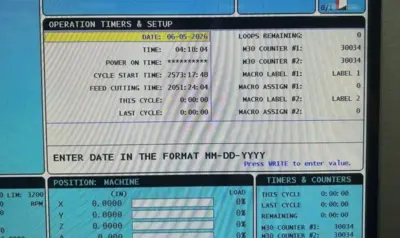

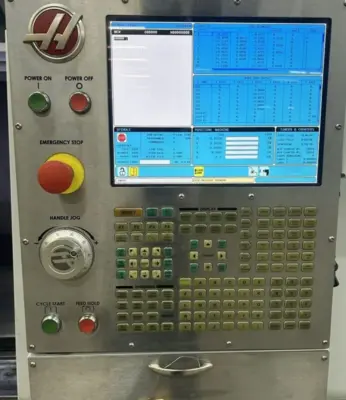

Haas Next-Gen Color LCD Widescreen Control
Box Way Construction
Hennig Chip Conveyor
Loc-Line Coolant System
40 HP Haas Vector Drive

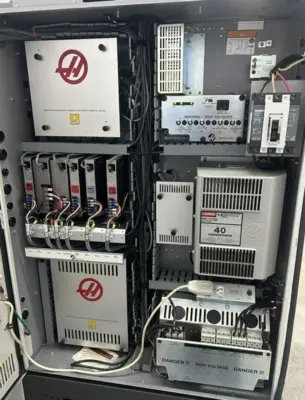

Servo Amplifiers (X, Y, Z, C-Axis, Live Tooling, Spindle, Tool Turret, Tailstock, Bar Feeder, Auto Door)
Wiper Kit (New-P/N93-1994)
