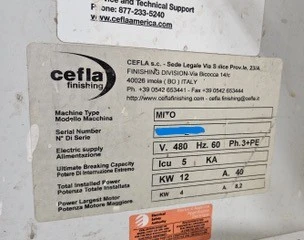

USED 2009 CEFLA/SORBINI MITO SYSTEM C/W SORBINI BRUSH

Complete Spraying System with SORBINI Cleaning Brush machine.
Reciprocating Feed Through System for Waterborne & Solvent-Borne Coatings: The max. flexibility and technology for the continuous spraying of any kind of raised panels.

Features:
- Machine designed with a solid structure:
LASER 3D; full accessibility, thanks to the wide use of glass superficies, access doors, and extractable parts. -- Conveying System with: CFB Belt with sealed edge, driven by inverter. -- Axis driven by the powerful brushless motor and by a sophisticated toothed belt handling system, with recycling sphere bearings. The best performances in speed, acceleration, and the softness in guns motion allows to achieve the max. application quality.

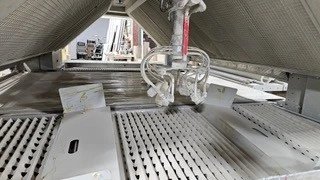

- The central axis holds: (1) Gun supporting arm (removable), equipped with quick-release (predisposed for max. 4 guns); complete with: Manual height adjustment, (3) high pressure lacquer feeding circuits with recycle; lacquer filters with stainless steel fittings.

- Exclusive pressurization flows analysis and sophisticated air diffusion plenum with double fan for air intake and filtration results in: Higher lacquer saving, better machine cleaning. Circulation provided by floor mounted MZ RLQ 560, Direct-drive 4 KW , 1755 RPM motor.

- Tanks with supporting areas for filters by COLUMBUS or ANDREAS-type filters.Electronic Scanner for: Shape reading and workpieces positioning; max. efficiency in managing the guns` spraying.TECHNICAL FEATURES:Total length of the machine: 4,650 mmTotal width of the machine: 3,850 mm (4,210 mm with fan)Machine structure height: 2,500 mmElectronic control unit with: PLC and software for machine managing.Main control cabinet: Pressurized, placed at the machine infeed, along the service side complete of cable and wiring system for connection to all the users.Spraying parameters management is operated by PLC:Working programs setup, measurements of the lacquered surface & lacquer consumption, 5" color touchscreen display for diagnostic and control; possibility to exchange data from and to PLC managing complete Lines.Possibility to manage pumps for color change/washing (up to 4 pumps).

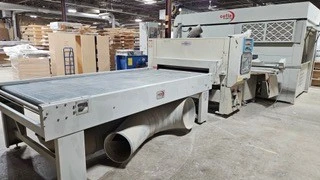

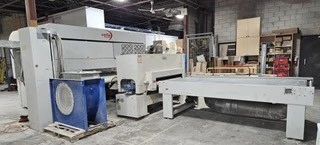

- Comes with: 2006 SORBINI/CEFLA VS/33-ACT-F, 460/3/60 Panel Cleaning Brush with brush for the top roll followed by a nozzle blow off station. (1) Head, 53" width cap. Top brush head; features timed rotating air blowers, air liner blower with nozzles. Upper mounted Anti-static ionization bar; 400 RPM brush speed.With CEFLA TM 3000, 600/3/60 V, infeed belt conveyor. -- Line is disconnected/dismantled per last photos
