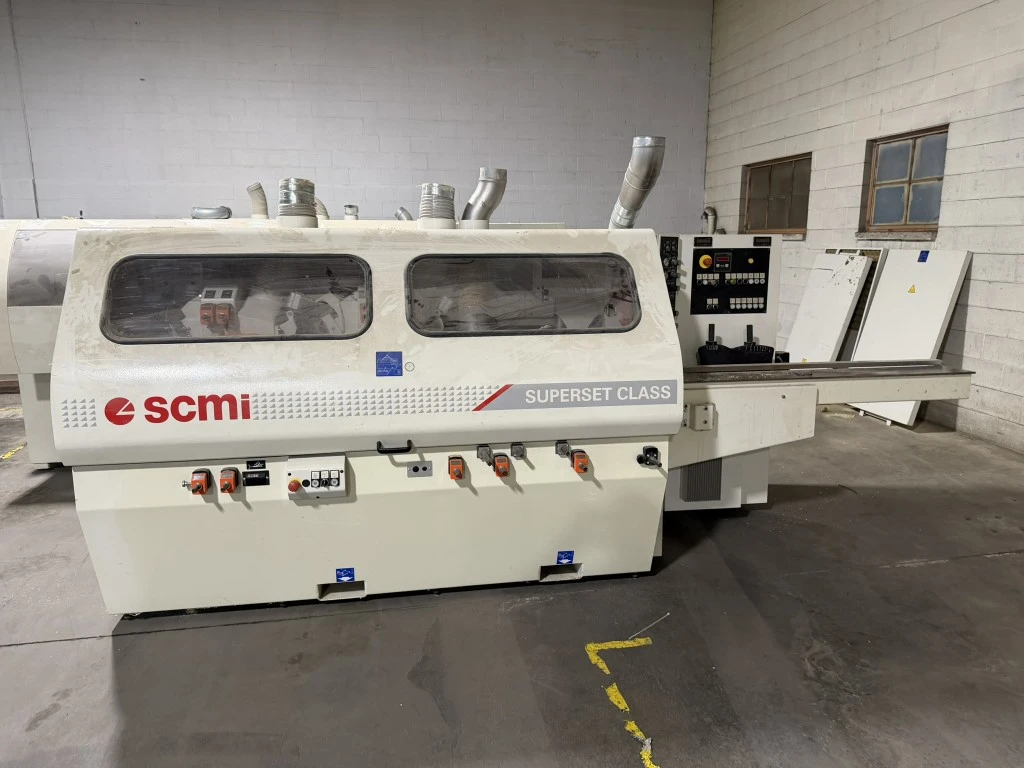

USED 2009 SCM SUPERSET CLASS

6-head moulder
4.72" x 9.44" capacity

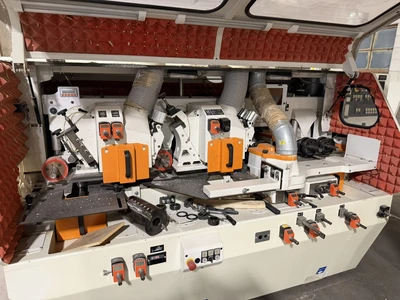

Head configuration:

Bottom 10 HP
Right 9 HP
Left 9 HP
Top 15 HP
Bottom 10 HP

All spindles 40mm diameter and 6 000 RPM
Pneumatic pressure on all feed wheels
78" infeed straightening bed
6.6 HP variable speed feed from 16 to 118 FPM
Electronic (LED) digital readout of working width and thickness Mechanical digital readouts for vertical and horizontal adjustment of all spindles except 1st bottom head
Powered top beam and top head with simultaneous or independent adjustment - enabling easy rapid set up "Set Up" rapid setting system on top and left vertical heads to accommodate different tool diameters
Pneumatically loaded receding chip breakers for both top heads
2-sector pressure shoe placed after second top horizontal spindle with 40 mm stroke
(2) powered feed rollers on the work table
Pneumatic exclusion from control panel of powered feeding unit place before first bottom head
Equipped with "Control 20 Electronic Controller" for set up The "Control 20" controls four different axes features a 2-line display industrial grade PLC and is capable of storing up to 300 programs
Control 20 performs the following functions: Horizontal movement of left vertical spindle (Width) vertical movement of both top horizontal spindles (Thickness) and vertical movement of right and left vertical spindles (Axial)
Manual centralized lubrication
Electro mechanical motor brakes for all spindles
Lighted safety enclosure

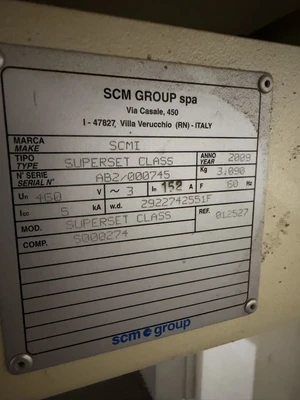

Power requirements: 115 amps @ 460 volt
Dust extraction requirements: 6 000 CFM @ 5 000 FPM
Machine weight: 6 780 lbs
