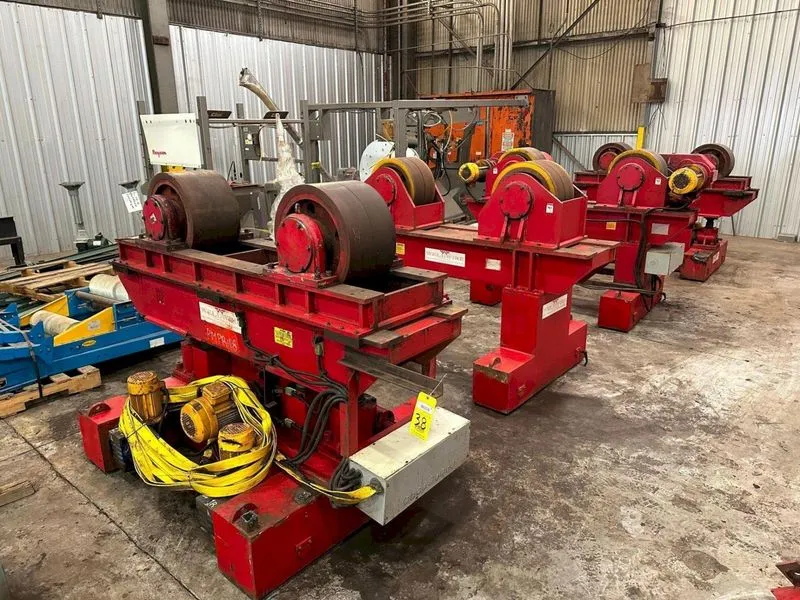

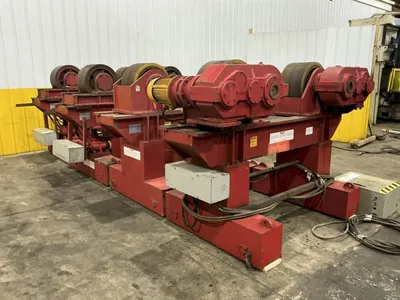

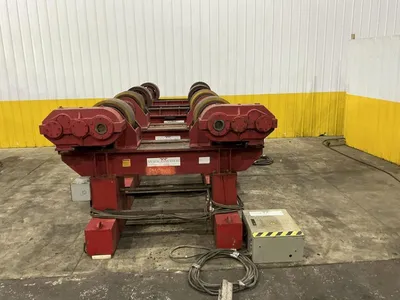

300 TON X 120" DIAMETER WELDWIRE MODEL #CAS-150 TRACK MOUNTED POWERED TANK TURNING ROLLS, 1 DRIVE & 3 IDLERS: YOBRO #25736

1 DRIVE ROLL & 3 IDLERS:
OVERALL CAPACITY .............. 330 TONS (300T METRIC)
YEAR NEW ...................... 2014
TRACK MOUNTED ................. YES, ADJUSTABLE LENGTH

DRIVE ROLL:
SERIAL ........................ 35698
YEAR NEW ...................... 2014
MODEL ......................... CAS-150
ROTATION CAPACITY ............. 165 TONS (150T METRIC)
LOADING CAPACITY .............. 82.5 TONS (75T METRIC)
ROTATION SPEED ................ 4 TO 40 INCHES PER MINUTE
TANK / PIPE DIAMETER .......... 36" TO 126" (900 - 3200 mm)
RUBBER WHEELS ................. YES
DIAMETER OF WHEELS ............ 20" (500 mm)
WIDTH OF WHEELS ............... 10-3/4" (140 mm X2)
HEIGHT FLOOR TO TOP OF ROLL ... 64"
FORWARD & REVERSE ............. YES
TRACK MOUNTED WHEELS .......... YES
DISTANCE BETWEEN RAIL WHEELS .. 54"
MOTOR ......................... 10 HP

IDLER ROLLS:
NUMBER OF IDLER ROLLS ......... 3
SERIAL ........................ 356998
YEAR NEW ...................... 2014
MODEL ......................... CASI-150
LOADING CAPACITY PER IDLER .... 82.5 TONS (75T METRIC)
TANK / PIPE DIAMETER .......... 36" TO 126" (900 - 3200 mm)
RUBBER WHEELS ................. YES
DIAMETER OF WHEELS ............ 20" (500 mm)
WIDTH OF WHEELS ............... 10-3/4" (140 mm X2)

2 IDLERS ARE POWERED LIFT AND TRAVEL:
VERTICAL LIFT - POWERED ....... 3" (75 mm)
TRACK MOUNTED WHEELS .......... YES
POWERED TRAVEL ................ YES
PENDANT CONTROL ............... YES
MOTOR ......................... 3 HP X 2

Brand
WELDWIRE
Type
Rolls, Power Tank Turning
Stock No.
25736
