USED 2019 MAKINO U3

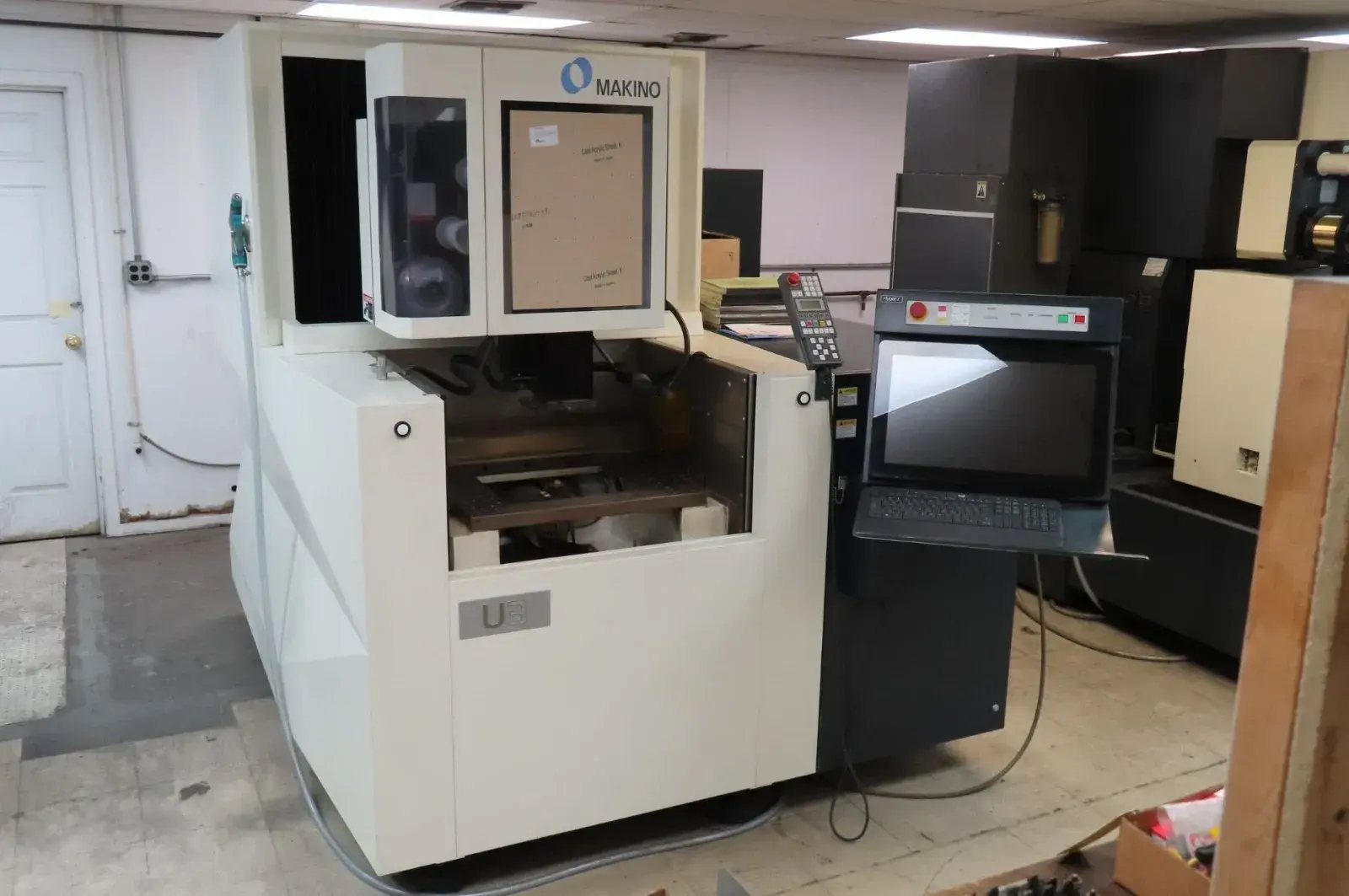

Makino U3 CNC Wire Type Electrical Discharge Machine EDM (2019)

X-Axis Travel: 370 mm (14.56")
Y-Axis Travel: 270 mm (10.63"
)Z-Axis Travel: 220 mm (8.66")
U/V Axis Travel: ±50 mm (±1.96")
Max Workpiece Dimensions: 770 × 590 × 220 mm (30.3" × 23.2" × 8.7")
Max Workpiece Weight: 600 kg (1,332 lbs)Wire System
Wire Electrode Size Range: 0.10 mm to 0.30 mm (0.004" to 0.012")
Wire Guides: PICO Round Wire Guide system for high repeatability (±5μm) without vertical wire alignment
Threading: Jet-less Automatic Wire Threader (AWT)
Taper Cutting Capacity: ±15° at 100 mm (3.94") thickness
Table Size: 630 × 460 mm (24.8" × 18.1")
Inside Tank Dimensions: 790 × 610 mm (31.1" × 24.1")
