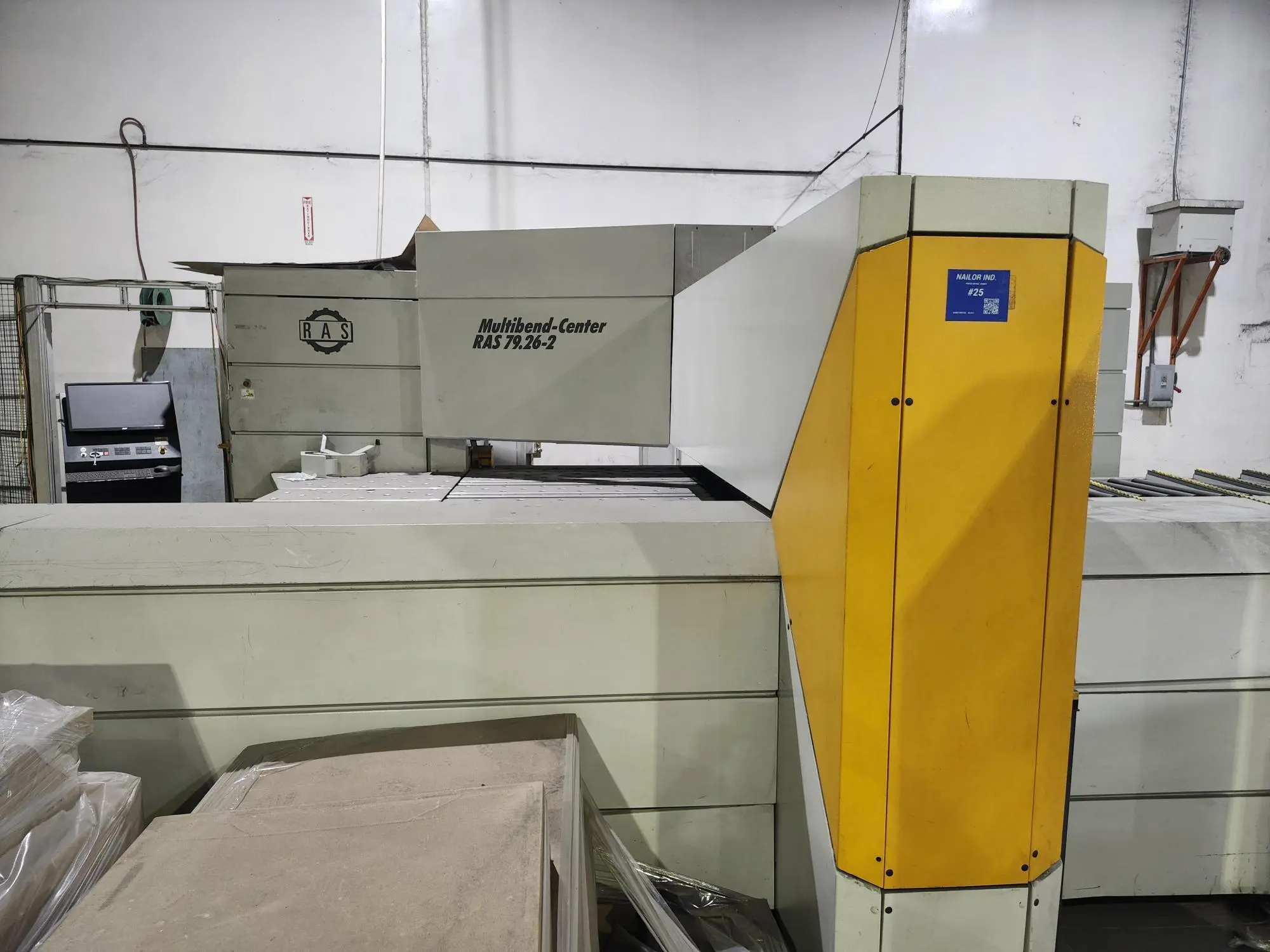

USED 2013 RAS MULTIBEND CENTER 79.26

If you want to bend precision parts, fully automatically, at high speeds, in high quantity, regardless of batch-size, with the highest levels of flexibility and total repeatability, welcome to the next level of metal fabrication! Dynamic servo motors, an extremely fast tool changer, scratch-free folding technology and flexible tools emphasize the uniqueness of the Multibend Center for automatic bending.
Specifications
Technical Data Multibend-Center (mm) RAS 79.26-2
Working length 2560 mm
Material thickness max (400 N/mm²) 2.0 (2.5) mm
Box height max (four sides) 203 mm
Blank length max 2660 mm
Blank width max 1500 mm
Dimensions (Basic machine) 5900 x 5800 mm
Technical Data Multibend-Center (inch) RAS 79.26-2
Working length 100.8″
Material thickness max (58,000 PSI) 14 (13) ga
Box height max (four sides) 8″
Blank length max 104.7″
Blank width max 59″
Dimensions (Basic machine) 232″ x 229″

Max Thickness 0.08"
Max Thickness (gauge) 14 gauge
Overall Length 100"
Multibend-Center ECO (mm)
Working length max 2560 mm
Blank width max 1500 mm
Material thickness max (400 N/mm²) 2.0 (2.5) mm
Box height max (four sides) 203 mm
Blank length max 2660 mm
Blank width max 1500 mm
Machine dimensions 8050 x 5950 mm
Multibend-Center ECO (inch)
Working length max 100.8″
Material thickness max (58,000 PSI) 14 (13) ga
Box height max (four sides) 8″
Blank length max 104.7″
Blank width max 59″
Machine dimensions 317″ x 234″
Equipped With
Automatic loading and unloading
Automatic blank squaring
Automatic folding sequences, highest level of productivity
Automatic tool setup
Highest level of precision and repeatability
Scratch free bending, no wear of tools
One-click part programming
Small floorspace required
