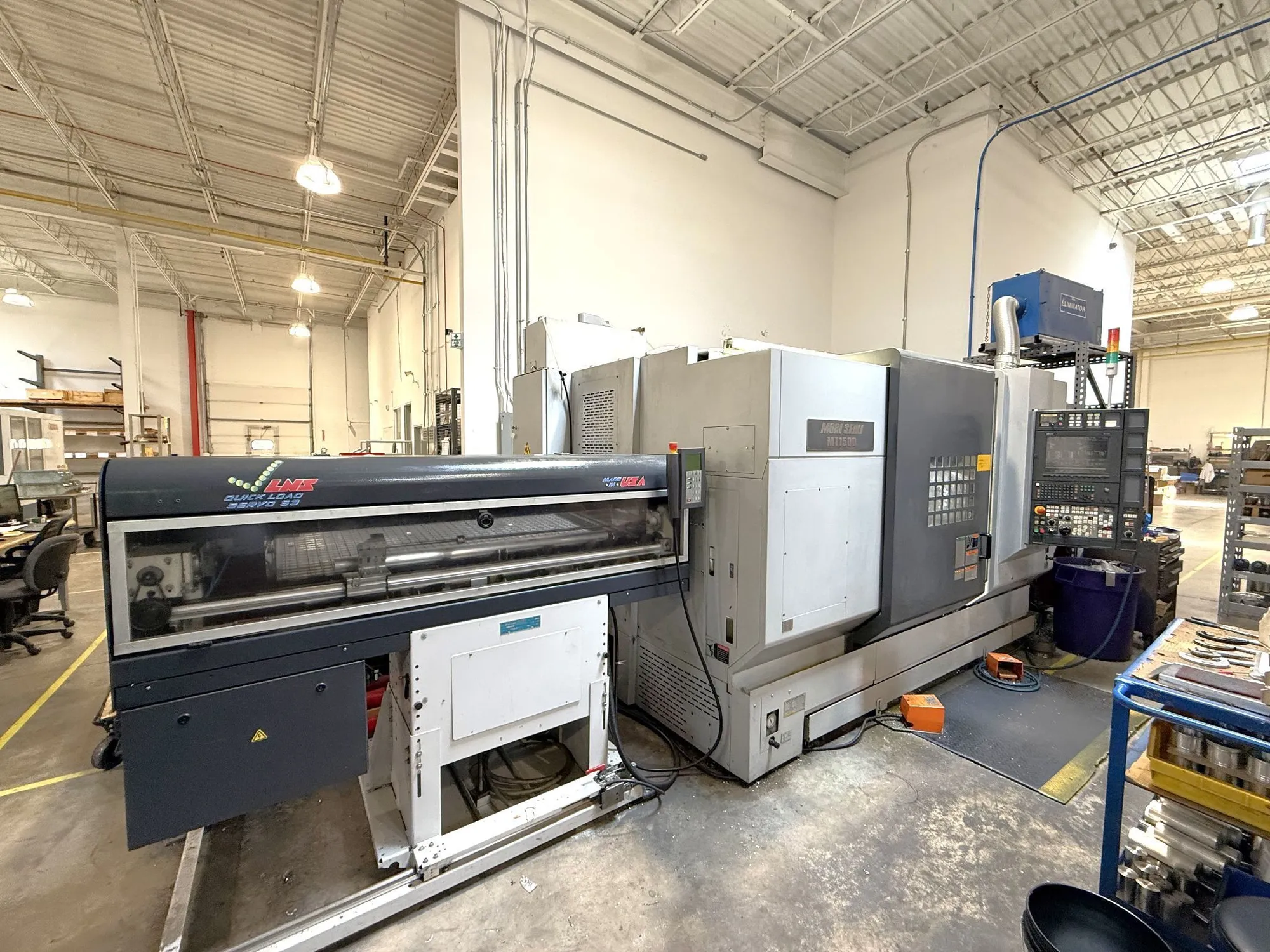

USED 2005 MORI SEIKI MT-1500SZ
Overview
Description
5-Axis, C-Axis, Sub Spindle, Lower Turret, Barfeed. This 2005 Mori Seiki MT-1500SZ multi-axis cnc lathe also includes HP coolant, parts conveyor and chip conveyor.
*** Machines runs excellently except the B-axis *** Priced cheap to move!
Specifications
| SWING OVER BED | 25.6" | 650.24 mm |
|---|---|---|
| SWING OVER SADDLE | 17.3" | 439.42 mm |
| MAX CUTTING DIAMETER | 15.7" | 398.78 mm |
| MAX CUTTING LENGTH | 36.24" | 920.5 mm |
| DISTANCE BETWEEN CENTERS | 40" | 1,016 mm |
| X-AXIS TRAVEL | 22.5" | 571.5 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | ±2.8" | ±2.8" |
| Z-AXIS TRAVEL | 42.4" | 1,077 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.55" | 64.77 mm |
| SPINDLE BORE | 2.87" | 72.898 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 4,500 RPM | 4,500 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 945 in/min. | 24 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 629 in/min. | 16 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,179 in/min. | 29.9 m/min. |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 6" | 152.4 mm |
| SUB SPINDLE - BAR CAPACITY | 1.77" | 44.958 mm |
| SUB SPINDLE - SPINDLE BORE | 2.22" | 56.388 mm |
| SUB SPINDLE - SPINDLE NOSE | 140mm | 140mm |
| SUB SPINDLE - SPINDLE MOTOR | 15 hp | 11.2 kW |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| B-AXIS ROTATION | ±120° | ±120° |
| TURRET TYPE | VDI | VDI |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 12,000 RPM | 12,000 RPM |
| LIVE MILLING MOTOR | 24.7 hp | 18.4 kW |
Equipped With
MORI SEIKI MSX-501 CNC CONTROL
C-AXIS
B-AXIS (NOT CURRENTLY WORKING)
6' LNS QUICK LOAD SERVO S3 (2 and 5/8")
PARTS CONVEYOR
LNS TURBO HB CHIP CONVEYOR
CHIPBLASTER HIGH PRESSURE COOLANT PUMP (2008)
TFP ELIMINATOR MIST COLLECTOR
OIL SKIMMER
MISCELLANEOUS TOOLING
** MACHINE CUTTING PRIMARILY PLASTIC, STAINLESS STEEL, & BRASS
** IN PLANT, UINDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
*** B-AXIS HAD ISSUES, CURRENT OWNER RECENTLY DISCONNECTED IT. MAIN AND SUB-SPINDLE ARE GREAT, LOWER TURRET WITH LIVE MILLING IS GREAT.
-- BUY AS FIXER-UPPER, OR AS MAIN/SUB/LIVE MACHINE... OR MAKE AS A GLORIFIED PARTS MACHINE FOR YOUR OWN MT-1500SZ
