USED LOOPCO 54-40 SL

The Loopco 54” x 0.187” x 40,000 lb. slitting line is a robust machinery solution ideal for processing metal coils. This used line comes equipped with a 54” maximum width and a 0.187” max thickness capacity, providing flexible slitting options for various applications. It can handle coils weighing up to 40,000 lbs., making it well-suited for demanding industrial tasks. Key components include an entry coil car, mandrel uncoiler, entry section with hydraulic features, and dual slitter heads with one needing a rebuild.
The line also includes a Nova entry crop shear from 2010, Sweed scrap choppers with dual heads, and a looping pit table for efficient scrap handling. It offers various hydraulic enhancements such as a hydraulic peeler table, ejector, and recoiler with a 58" wide mandrel, supported by a 100 HP DC motor. The recoiler comes with a 20” coil ID and integrated hydraulic systems for gripping, expansion, and push-off functions.
Designed with operational efficiency in mind, the slitting line includes an exit turnstile with four C-hook arms for powered rotation, ensuring smooth coil management. The addition of a free-standing overarm separator and dual drag tension pads contribute to its operational precision. Although one slitter head requires rebuilding, this Loopco line remains a valuable asset for high-capacity slitting tasks.

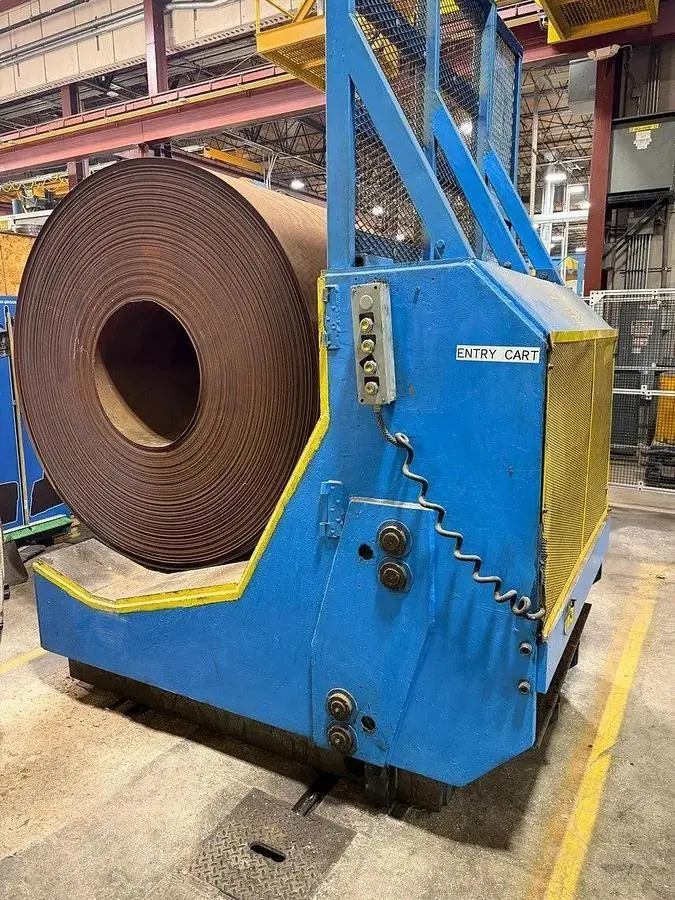

Entry Coil Car
Above-Floor L-Shaped Design

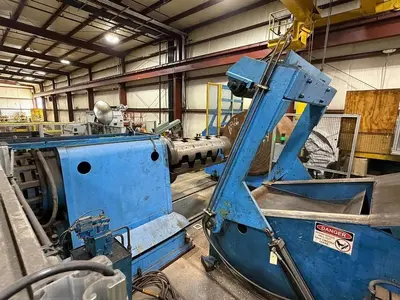

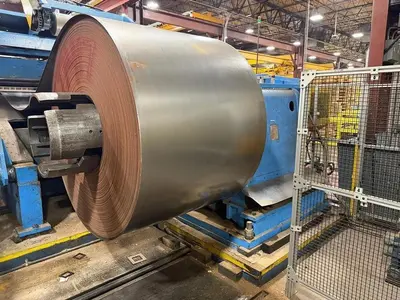

Mandrel Uncoiler
20"-24" Pumpkin Tooth Mandrel
Hydraulic Slide Base
Hydraulic Expansion
Water-Cooled Brake

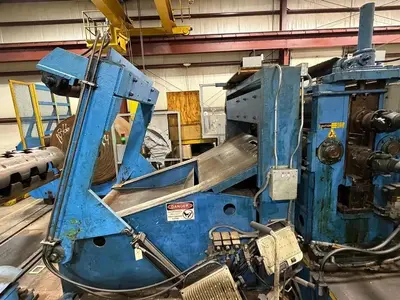

Entry Section
Hydraulic Peeler Table
Powered Hold-Down Roll
Pinch Rolls

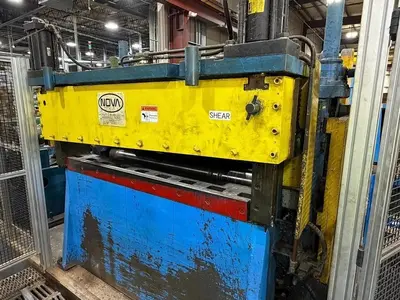

Nova Entry Crop Shear
Year: 2010

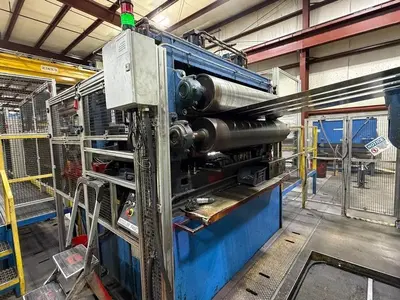

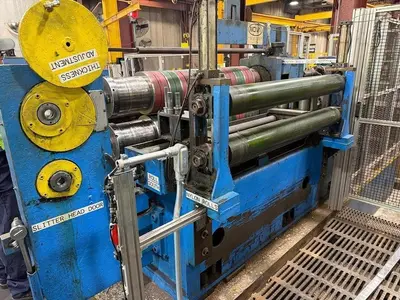

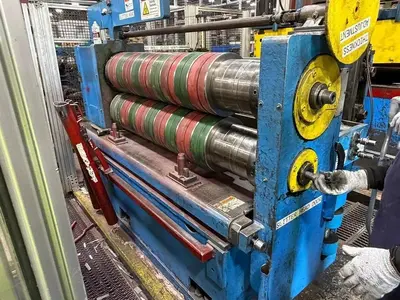

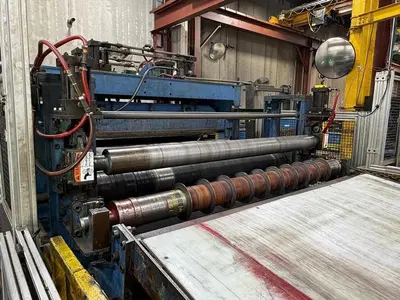

Two (2) Slitter Heads
8" Diameter Arbors
Swinger Outboard Support
AC Motor Assist
One (1) Slitter Head Needs Rebuild

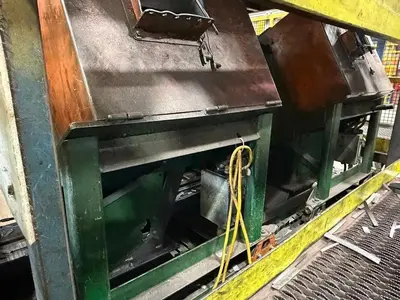

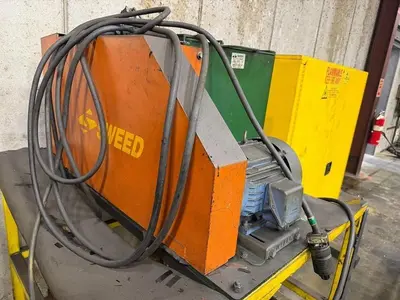

Sweed Scrap Choppers
Year: 2010
Dual Chopper Heads
Spare Chopper Head Included
Scrap Conveyor
Looping Pit Tables
Nova Tension Stand
Entry Separator Bar
Dual Drag Tension Pads
Exit Pinch Rolls

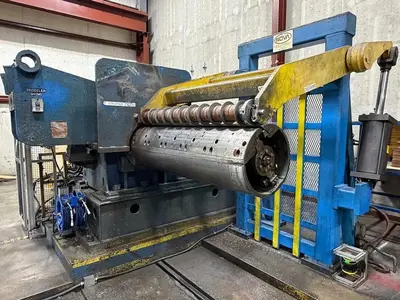

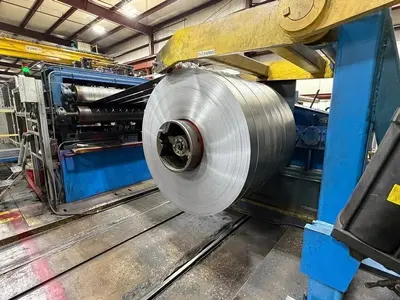

Recoiler
58" Wide Mandrel
20" Coil ID
Hydraulic Gripper
Hydraulic Expansion
Hydraulic Push-Off
100 HP DC Motor
Free-Standing Overarm Separator

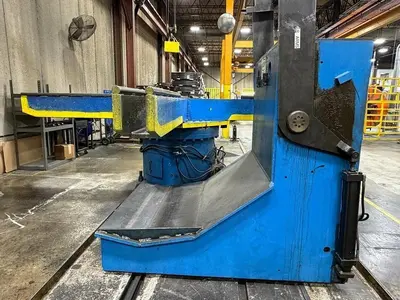

Exit Coil Car
Above-Floor L-Shaped Design
Coil Keeper Arm
Exit Turnstile
Four (4) C-Hook Arms
Powered Rotation
Additional Information:
One (1) slitter head needs rebuild.
