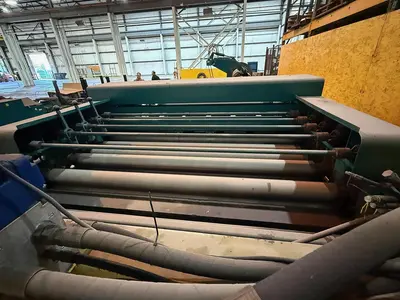

USED 2004 IOWA PRECISION SLEAR 2
Overview
The Iowa Precision 72” x .075” x 20,000# Multi-Blanking/Cut-To-Length Line, model Slear 2, offers robust cutting and precision capabilities. Designed to handle CRS, aluminum, galvanized, and pre-painted materials, it accommodates coil widths ranging from 6” to a maximum of 72” with a thickness range of .015” to .075”. The unit is built to manage a coil weight of up to 20,000 pounds, ensuring it can handle heavy-duty applications with ease. Operating with a line speed of 20 to 150 feet per minute, it facilitates efficient processing in left-to-right direction.
Key features include an entry coil car with powered lift and traverse, a mandrel-type uncoiler with powered expansion, and a loop control with a dancer arm. The SLEAR unit itself includes an extending blade peeler, slitter head, and powered pinch rolls, complemented by a flattener and down-cut shear on a traversing track. It's equipped with a manual adjustable stacker for precise handling and a powered side discharge conveyor with a 10,000-pound capacity.
Designed for efficiency, the line operates in a compact space requirement of 25’ x 45’. The system is controlled via a main operator console with an Allen Bradley touchscreen and PLC, ensuring seamless and precise operation. An array of spare parts, including tampers and shear blades, is provided to support maintenance and continuous reliable functioning.

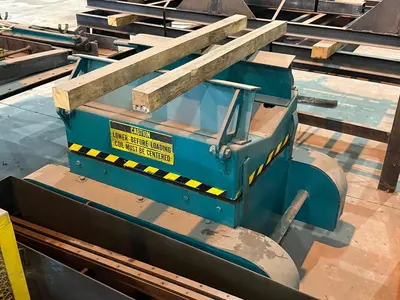

Entry Coil Car:
Low Boy Type
Floor Mounted
Powered Lift And Traverse

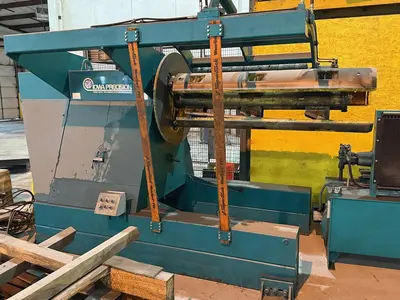

Uncoiler:
Mandrel Type
Powered Expansion
Feed-Up Drive
Hold-Down With Powered Snubber
Loop Control With Dancer Arm

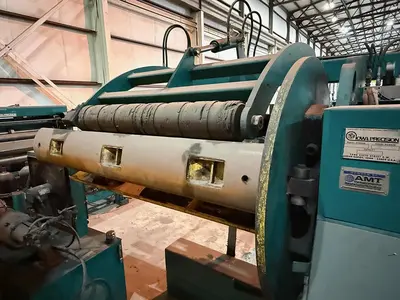

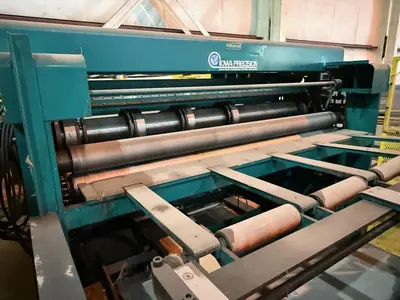

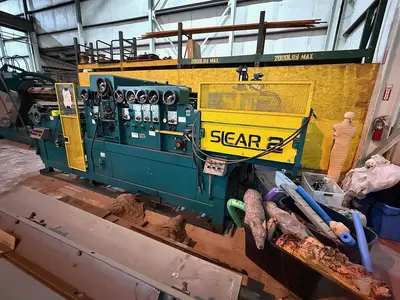

SLEAR Unit:
Extending Blade Peeler
Powered Tamper Roll
Manual Side Guides
Powered Entry Pinch Rolls
Slitter Head With Hub-Type Tooling
6” Diameter Arbor
Powered Pinch Rolls #2

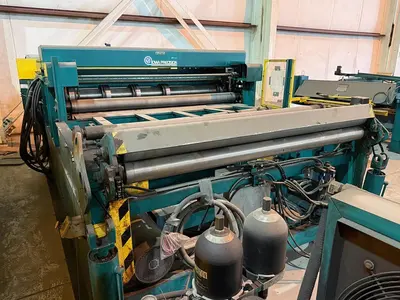

Flattener With Six (6) Work Rolls In 3/3 Configuration
Powered Exit Pinch Rolls

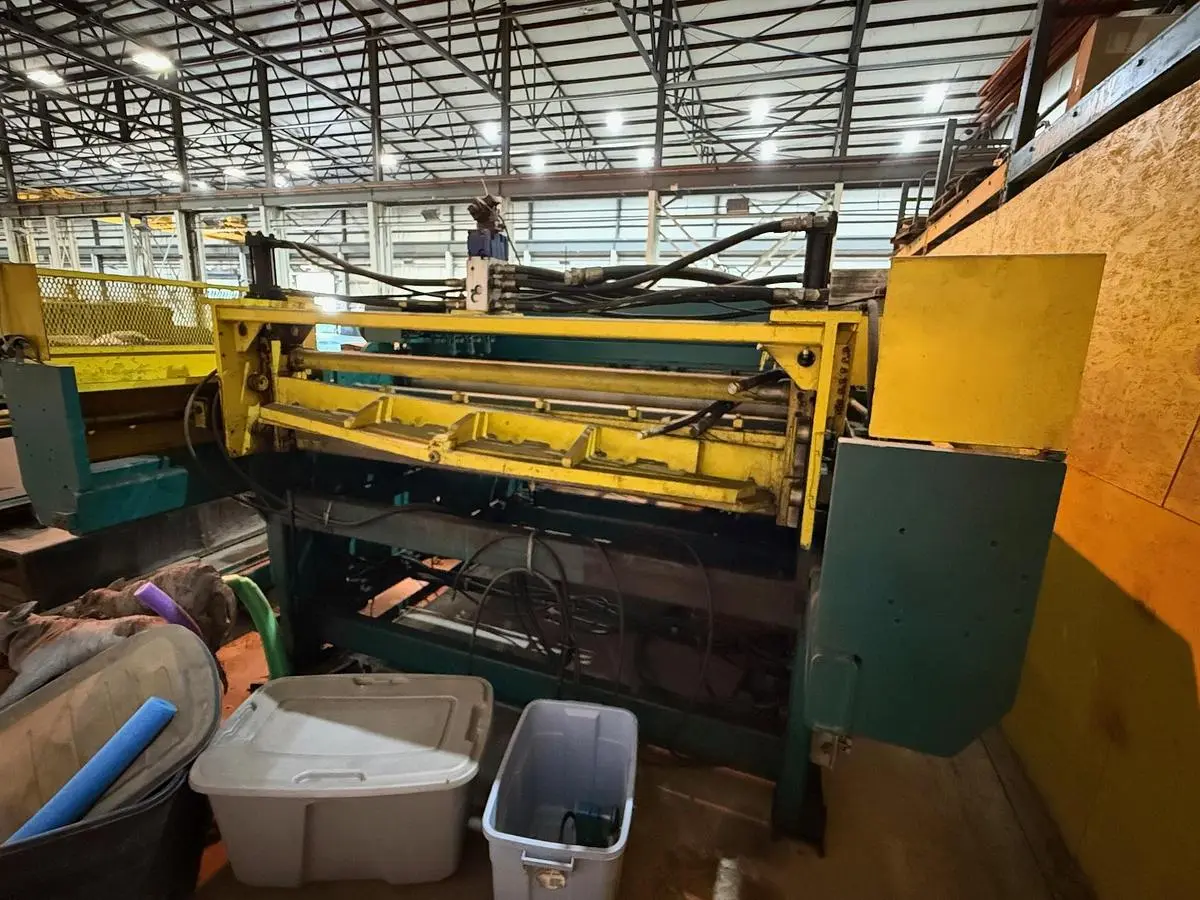

Down-Cut Shear On Traversing Track
Single Rake Blade

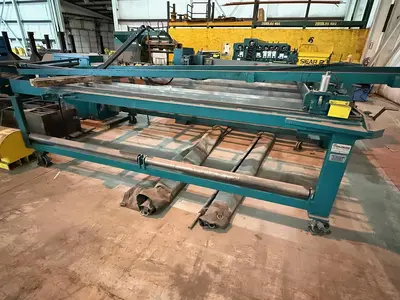

Stacker:
Manual Adjustable End Stop
Manual Adjustable Side Tampers

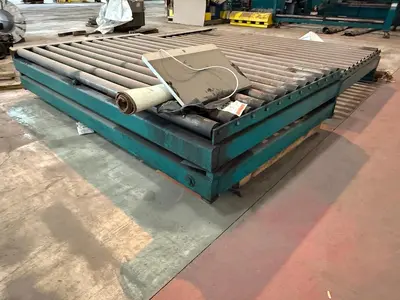

Lift Table With Powered Roller Conveyor Top
Two (2) Sheet Tampers
Four (4) Blank Dividers

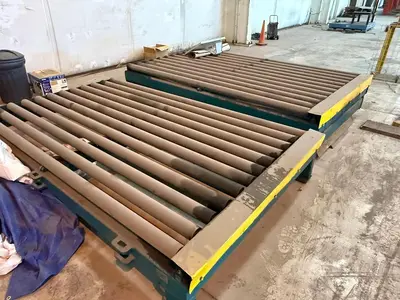

Powered Side Discharge Conveyor:
10,000# Capacity
Electronics:

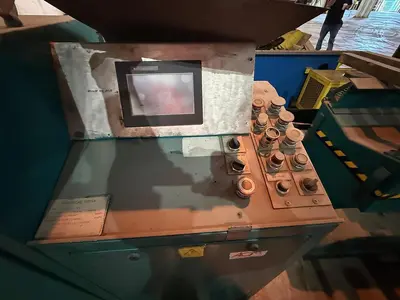

Main Operator Console With Allen Bradley Touchscreen And PLC
Auxiliary Control Consoles
AC/DC Cabinet

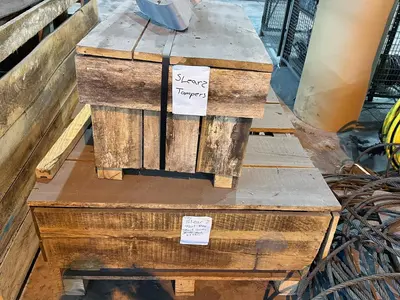

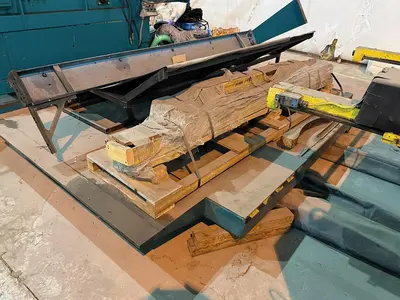

Spare Parts:
Tampers
Shear Blades
Miscellaneous
Specs
Material: CRS, Aluminum, Galvanized, Pre-Painted
Maximum Coil Width: 72”
Minimum Coil Width: 6”
Thickness Range: .015” – .075”
Maximum Shear Strength: 45,000 PSI
Maximum Yield Strength: 45,000 PSI
Maximum Coil Weight: 20,000#
Coil I.D.: 20” – 24” (Nominal)
Line Direction: Left To Right
Mode Of Operation: Front Loop
Line Speed: 20 – 150 FPM
Stacker Length: 1’ – 10’
Maximum Bundle Size: 18" High x 10,000 Lbs. at 10' Length
Required Floor Space: 25’ x 45’
