USED 2022 PRIMA POWER LASER GENIUS +
Overview
10 kW| 2022, LOW HOURS
Prima Power Genius+ 10kW Fiber Laser (2022) is a high-performance CNC laser cutting system designed for heavy-duty industrial production and automated lights-out manufacturing. Capable of processing mild steel, stainless steel, aluminum, copper, and brass with exceptional precision, it excels in automotive, HVAC, machinery, transportation, and architectural metal fabrication applications requiring speed, accuracy, and superior cut quality.
Specs
Power: 480V / 3 Phase / 60 Hz

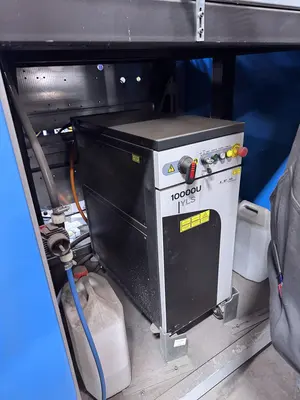

Laser Source: IPG YLS-10000U Fiber Laser (10 kW)
Table Size: 5' x 10' (1500 x 3000 mm)
Country of Manufacture: Italy
Mild Steel: 1.25" (32 mm)
Stainless Steel: 1.5" (40 mm)
Aluminum: 1.0" (25 mm)
Brass: 0.50" (12 mm)
Copper: 0.50" (12 mm)
Laser Power: 10,000 Watts
Positioning Accuracy: ±0.0016" (±0.04 mm)
Repeatability: ±0.0008" (±0.02 mm)
Simultaneous Axis Speed: Up to 11,000 IPM (280 m/min)
Acceleration: Up to 2.8 G
CNC Control: Prima Power Open CNC Platform
Drive System: Linear Motors

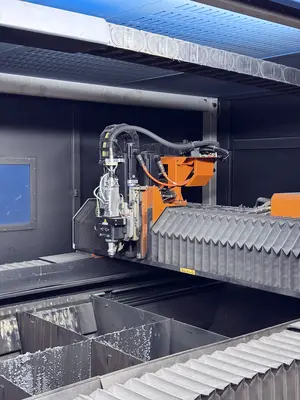

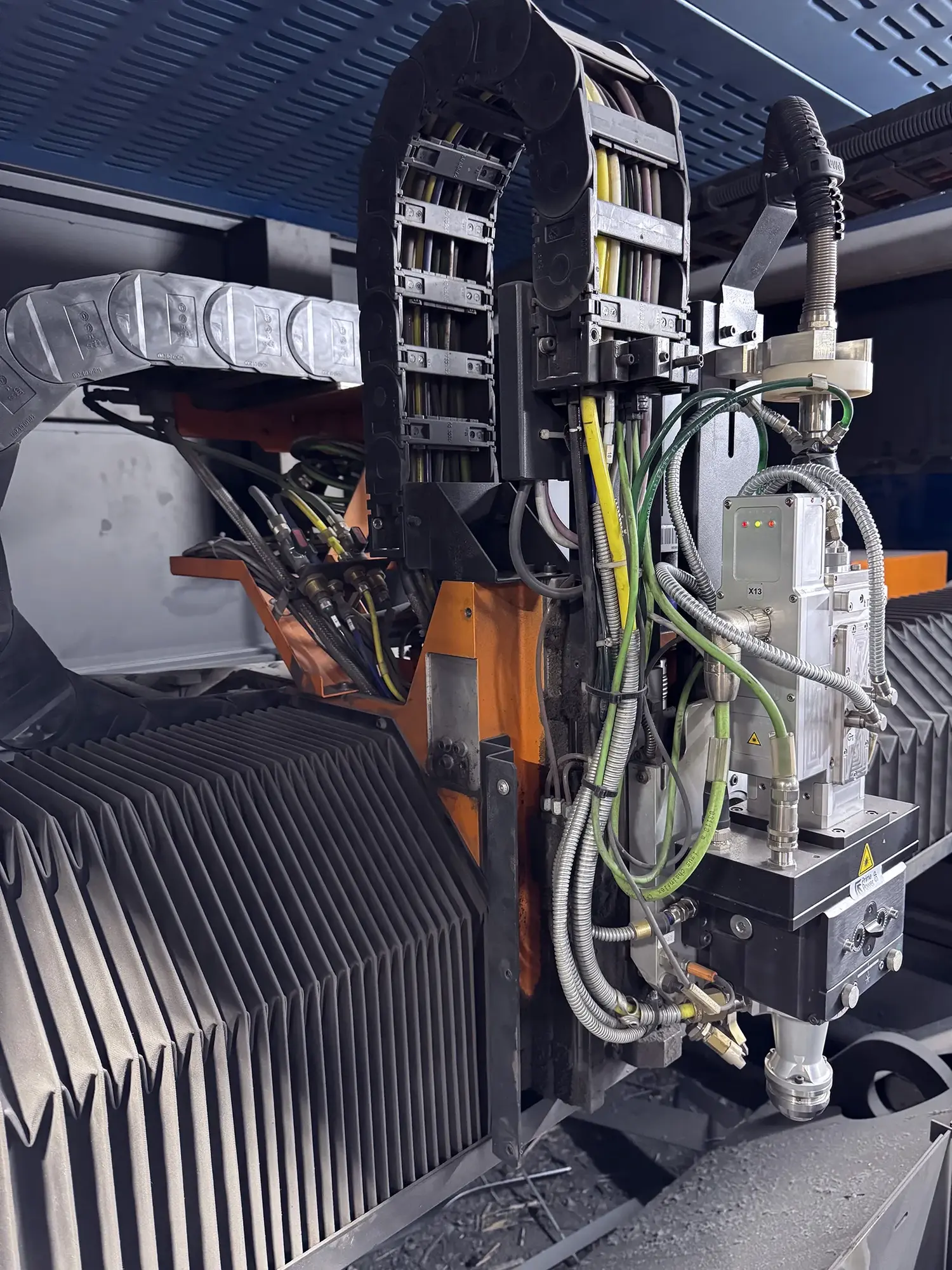

Cutting Head: Prima Power High-Dynamics Autofocus Head
Pallet Exchange Time: Automatic
Volt: 480 Volt
Total Load Current: 122.12 Amps
Largest Motor FLA: 40 Amps
Recommended Service: 150-200 Amp Dedicated Circuit
Equipped With
BRAND NEW UPGRADED LASER HEAD
Elevator (that allows continuous running)
10 kW IPG YLS Fiber Resonator

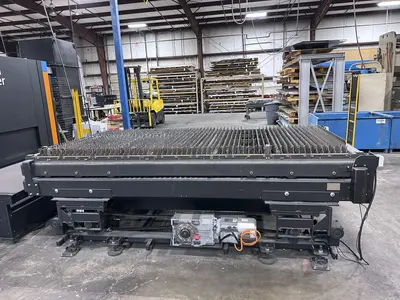

Dual Shuttle Tables
Prima Power Autofocus Cutting Head
Capacitive Height Sensing
Linear Motor Drives
Enclosed Safety Cabin
Touchscreen CNC Control
Automatic Nozzle Calibration System
Automatic Focus Control
Integrated Slag Collection Bins
Bellows-Protected Linear Axes
Programmable Gas Selection System
Automatic Edge Detection
Integrated Chiller System
Safety Light Curtains and Interlocks
