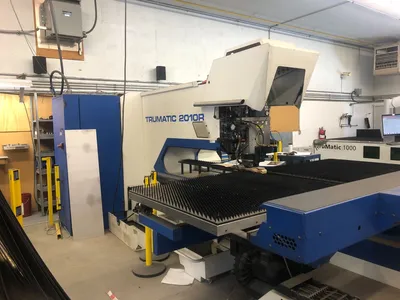

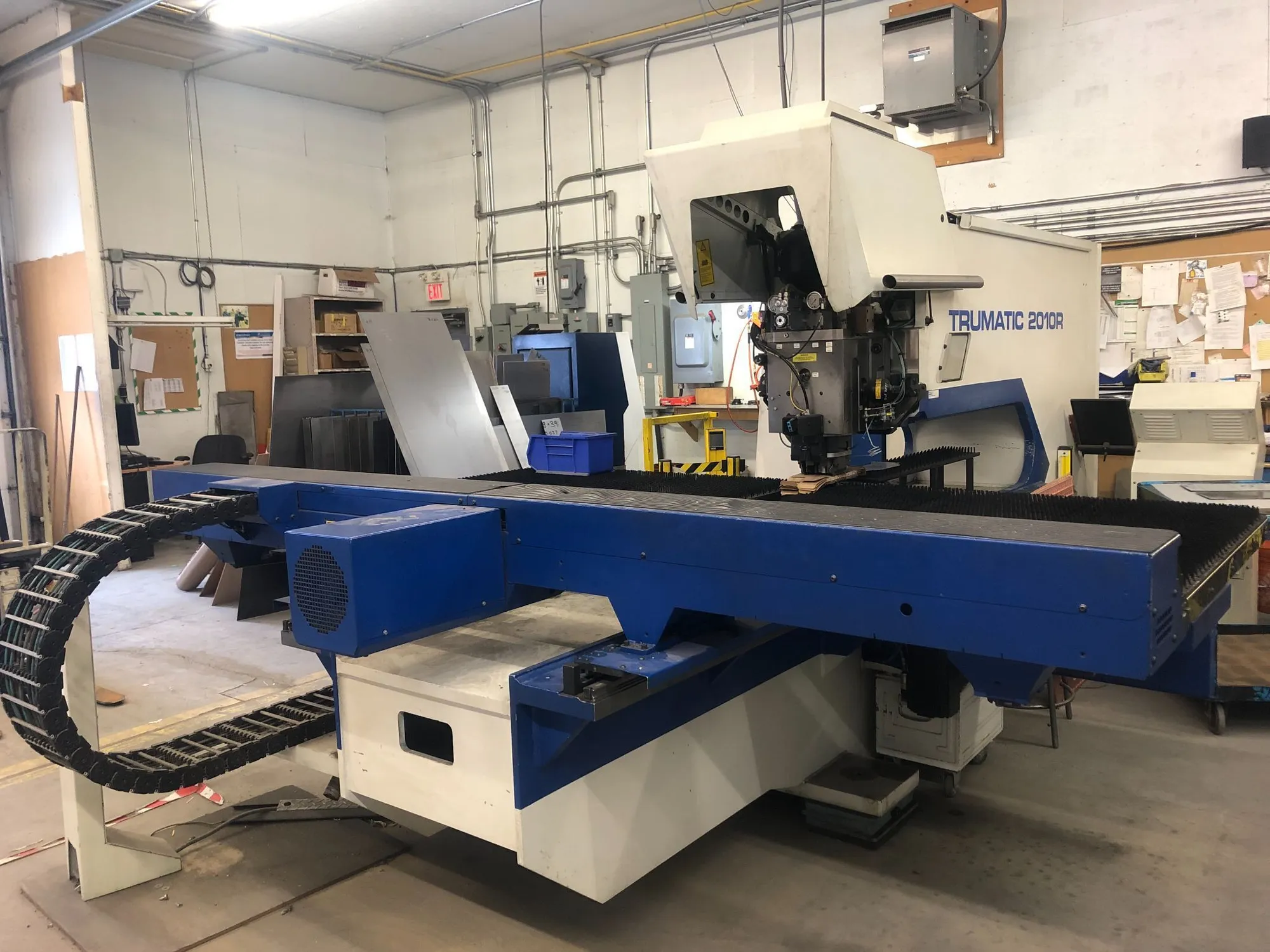

USED 2003 TRUMPF Trumatic 2010R
Overview
Specs
Working range
(X x Y) without repositioning 50" x 50"
Capacities
Max. sheet thickness 0.25"
Max. punching tonnage 20 tons
Max. workpiece weight 175 lbs
Speeds
X axis 3600 ipm
Y axis 2400 ipm
Simultaneous (X and Y) 4300 ipm
Stroke rate, punching .040" pitch 900 1/min
Stroke rate, punching 1.00" pitch 420 1/min
Stroke rate, with marking/beading option 2200 1/min
C axis 3 rotations/sec
Tools
Max. number of tools 10
Rotation of all tools 360° bi-directional
Tool change time:
Single tool/ Multitool 3.5 sec./0.9 sec.
Max. punch diameter 3" (all tool stations)
Max. forming height 0.500"
Programmable parts chute
Max. part size 8" x 8" Automatic sorting into two containers
Accuracy
Positioning accuracy +/-0.004"
Repeatability +/-0.0012"
Drive
X/Y/C axis Maintenance-free, digital AC motors
Punching head Hydraulic with closed loop control
Control
Basis: BOSCH Type 3
Platform PC Pentium for Windows NT
Program storage 64 MB
Floppy drive 3.5"
Workshop programming ToPs Light
Dimensions and weights (approx.)
Space requirements 22' x 24
Height 8'
Weight 25,000 lbs
Equipped With
*Specifications subject to buyer verification.
