USED 2021 CLOOS CS-30
Overview

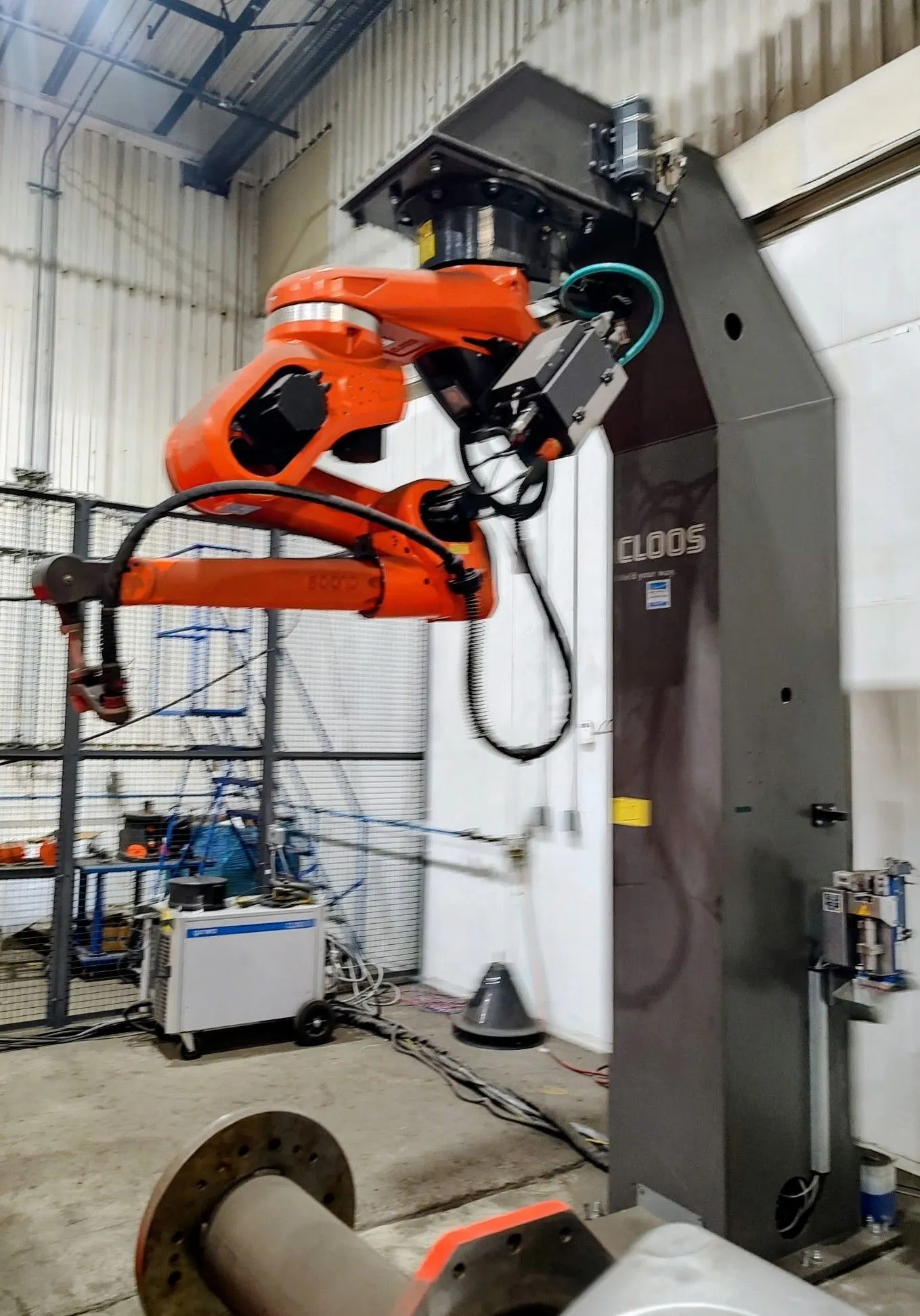

The CLOOS CS30 Robotic Welding Cell with QIROX QC2 Control is a high-performance automated welding system designed for precision arc and MIG/MAG welding. Engineered for high-volume production, it delivers consistent weld quality, faster cycle times, and reduced operator fatigue. Ideal for fabrication shops and industrial manufacturers, it efficiently handles repetitive welding tasks and supports advanced processes, including laser-hybrid welding applications. A reliable solution for boosting productivity, accuracy, and automation in modern welding operations.
Specs
WORKING SPACE: 177"
POSITIONER MAX. LOAD PER STATION IN N: 2,248 LBS
POSITIONER MAX. LOAD PER STATION: 2,248 LBS
POSITIONER MAX. TILTING MOMENT: 9.64567e-5"
POSITIONER MASS MOMENT OF INERTIA: 30.72 LB/FT²
POSITIONER MAX. TURNING SPEED: 120°/SEC
POSITIONER FACE PLATE DIAMETER: 15.75" X 15.75"
POSITIONER CLAMPING LENGTH: 137"
POSITIONER FREE TURNING RADIUS: 59"
POSITIONER: DH-TC-10KN
POSITIONER TYPE: 2 STATION
ROBOT PAY LOAD: 22 LBS
ROBOT SWIVEL RANGE:
- AXIS-1: +170°/-170°
- AXIS-2: +125°/-90°
- AXIS-3: +80°/-210°
- AXIS-4: +179°/-179°
- AXIS-5: +135°/-135°
- AXIS-6: +270°/-270°
- AXIS-7: +120/-120°
ROBOT SWIVEL SPEED:
- AXIS-1: 184°/SEC
- AXIS-2: 184°/SEC
- AXIS-3: 177°/SEC
- AXIS-4: 497°/SEC
- AXIS-5: 542°/SEC
- AXIS-6: 528°/SEC
- AXIS-7: 90°/SEC
OPERATING RANGE: Ø240.15”
OPERATING RANGE AXIS-5 +90°: Ø182"
OPERATING RANGE HEIGHT: 122.83”
PAY LOAD: 22 LBS
REPEATABILITY: (+/-) 0.0039”
COLLISION RADIUS: 41.34”
FLOOR SPACE: Ø 19.69”
WEIGHT: 772 LBSKG YOUR Price
Equipped With
CLOOS QIROX QC2 CONTROL
CLOOS QRC-410 ROBOT
QINEO PULSE 451 PRO MIG/MAG POWER SOURCE
