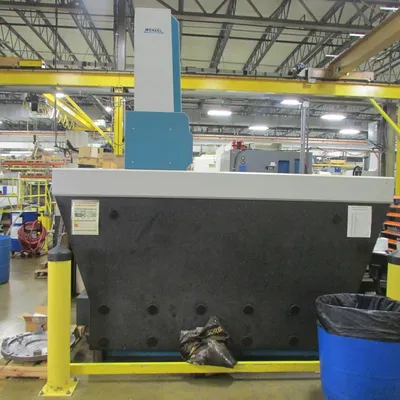

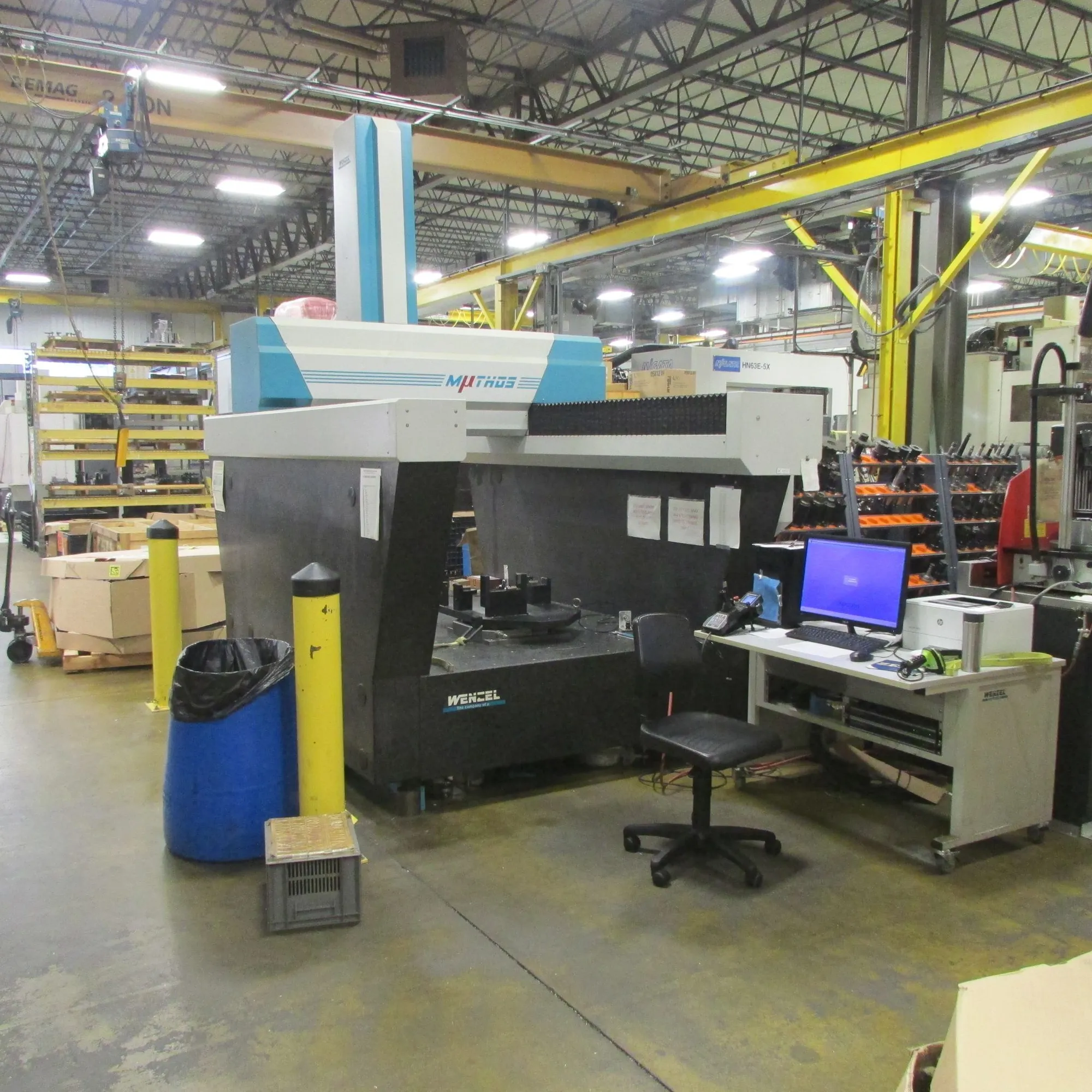

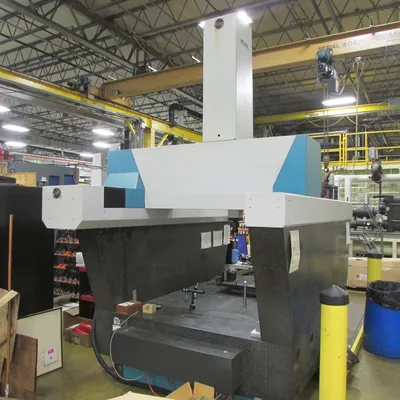

USED WENZEL Mythos
Overview
Wenzel Mythos Coordinate Measuring Machine CMM, The Muthos is an extremely accurate precision measuring centre with a measuring range of 1000 x 1600 x 800 mm (p. 3). It is suitable for workshops and can be used in direct proximity to production machinery (p. 3). It distinguishes itself by its high dynamic performance due to a structure which is characterized by a high level of stiffness (p. 3).The Muthos can be used within a large temperature range and fulfils the high requirements of scanning probe systems (p. 3). The technical advantages, high flexibility, and efficiency make this series of machines the solution for all fields of industry where fast and highly accurate measuring results are needed . The main application areas for the Muthos lie in series measurement for production monitoring in engine manufacturing and in aerospace technology
Specs
Wenzel Mythos Coordinate Measuring Machine CMM
Measuring Range
Dimensions: 1000 x 1600 x 800 mm (p. 5)
Accuracy & Maximum Permissible Error (MPE)
Temperature range 18 – 22 °C: \(\text{MPE}_E \ [\mu\text{m}] = 1.5 + L/300\)
Temperature range 15 – 30 °C: \(\text{MPE}_E \ [\mu\text{m}] = 1.5 + L/250\)
Temperature range 30 – 40 °C: \(\text{MPE}_E \ [\mu\text{m}] = 1.5 + L/150\)
Probing Error: \(\text{MPE}_P \ [\mu\text{m}] = 1.7\) (p. 5)
Scanning Error: \(\text{MPE}_{\text{THP}} \ [\mu\text{m}] = 3\) (72 s)
Temperature Gradient1 K/h; 1 K/m (p. 5)
Kinematics (Speed & Acceleration)Axis-related speed (v): max. 400 mm/s
Vectorial speed (v): max. 680 mm/s (p. 5)Axis-related acceleration (a): max. 1.5 m/s²
Vectorial acceleration (a): max. 2.6 m/s² (
