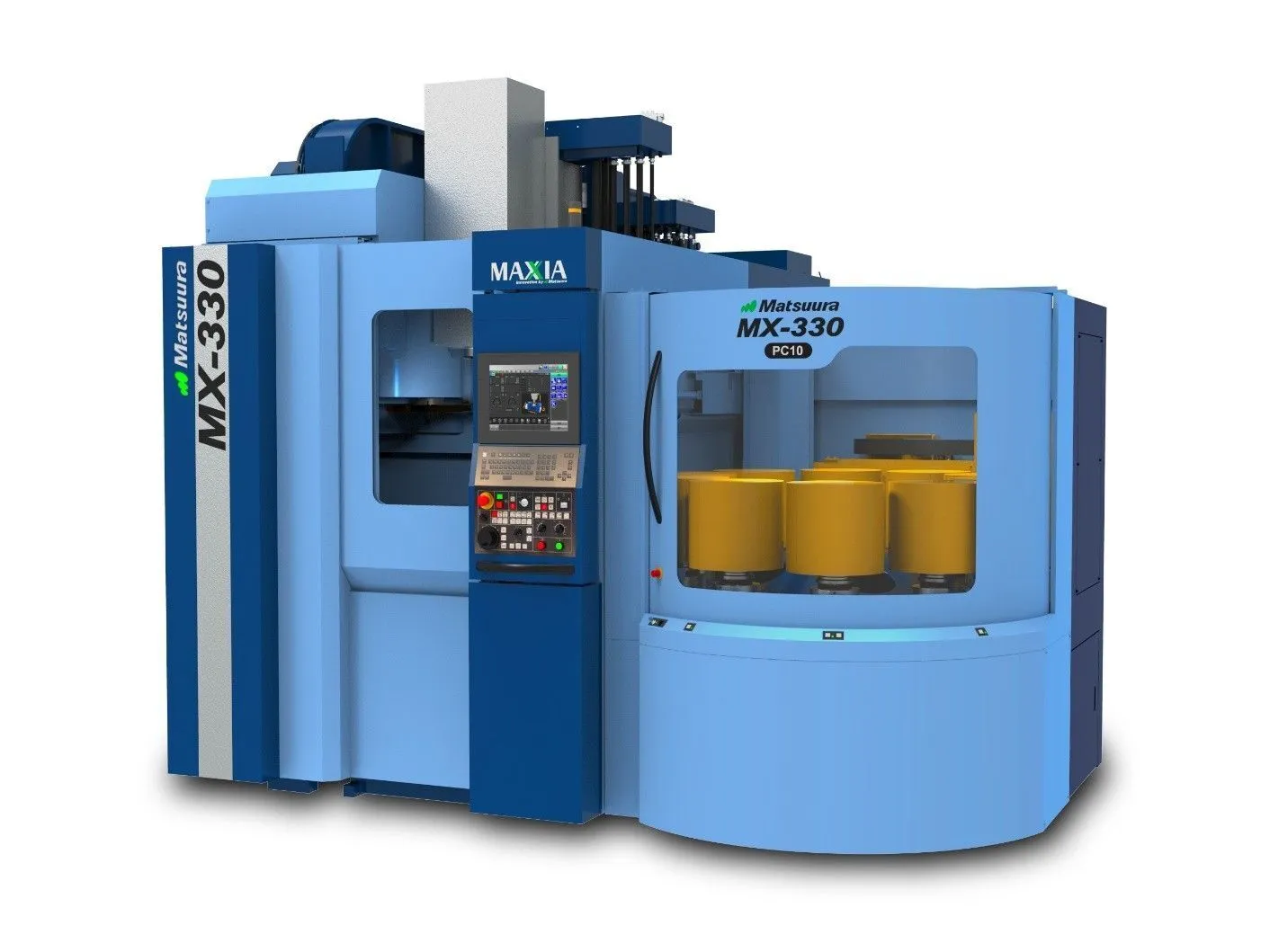

NEW MATSUURA MX330 PC10

SPINDLE OPTIONS-
20,000 RPM HIGH-SPEED HSK-A63 OIL-AIR LUBRICATED SPINDLE WITH COVER
INCLUDES 2 YEAR WARRANTY ON ALL SPINDLE COMPONENTS

PALLET CHANGER OPTIONS-
10 PALLET CHANGER – INCH PALLETS

MANUAL PALLET ROTATION AT WORK STATION

TOOL OPTIONS-
90 TOOL CHAIN

PROBING OPTIONS-
SPINDLE PROBE – RENISHAW OMP-400

LASER TOOL SETTER – RENISHAW NC4 BLUE

MACHINE OPTIONS-
8 SETS OF EXTRA M-FUNCTIONS
FOR 3RD PARTY OPTION INTEGRATION – INCLUDES RELAY BOARD

SCALE FEEDBACK FOR (X,Y,Z) AXIS/ HEIDENHAIN SCALE

AIR BLOW FOR CHIP SWARF REMOVAL

ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION

3 COLOR PATROL LIGHT
RED, YELLOW, GREEN

AIR DRIVEN ROTARY WIPER ON OPERATOR WINDOW

WEEKLY TIMER
ALLOWS FOR AUTOMATIC SHUT-DOWN & AUTO START-UP WITH SPINDLE WARM UP

COOLANT OPTIONS-
PREPARATION FOR 1,000 PSI THROUGH SPINDLE COOLANT WITH VACUUM FUNCTION
NO PUMPS—PREP ONLY

PREPARATION FOR MIST COLLECTOR

SOFTWARE OPTIONS-
SPINDLE LOAD MONITORING FUNCTION
ALLOWS AN OPERATOR TO TEACH REFERENCE TORQUE VALUES FOR THE FEED AND SPINDLE AXIS FOR A NEW TOOL. WHEN A TOOL REACHES A WARNING LEVEL THE OPERATOR IS NOTIFIED. IF THE TORQUE VALUES REACH ANOTHER LIMIT THE MACHINE IS HALTED.

TOOL PRECHECK FUNCTION
THE CONTROL DETERMINES A LIST OF REQUIRED TOOLS FOR THE NEXT PALLET PROGRAM AND ENSURES THAT THE CORRECT TOOLS ARE AVAILABLE BEFORE BEGINNING TO CUT.

3D MODEL OF WORK ENVELOPE IN STEP FORMAT

EZ-5 V2 WITH CALIBRATION BALL

OPERATION STATUS MONITORING FUNCTION

CONVEYOR OPTIONS-
MOSNIC RD-3C CHIP CONVEYOR WITH DRUM FILTER
FILTERS CHIPS DOWN TO 50 MICRONS IN SIZE

FANUC PACKAGES -
MMU VALUE PACKAGE
o TOOL OFFSET PAIRS 999-PAIRS
o ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS
o OPTIONAL BLOCK SKIP 9
o QUICK PROGRAM RESTART
o COORDINATE SYSTEM ROTATION
o TOOL LIFE MANAGEMENT
o PART PROGRAM STORAGE SIZE 8 MEGABYTES
o HIGH-SPEED SKIP
o COMMON VARIABLE EXPANSION (#100-#199/ #500-#999)

HIGH SPEED/ HIGH PRECISION PACKAGE + 5 AXIS PACKAGE-
o IZ-2/150NF
o SMOOTH TOLERANCE CONTROL
o HIGH SPEED SMOOTH TCP
o OPTIMAL TORQUE ACCELERATION & DECELERATION
o DATA SERVER PACKAGE WITH ETHERNET CONNECTIVITY AND 4 GIGABYTE OF PROGRAM STORAGE
o LARGE CAPACITY MEMORY (16 GB SSD)
o TILTED WORK PLANE COMMAND
o 3-DIMENSIONAL COORDINATE SYSTEM CONVERSION
o 3-DIMENSIONAL MANUAL FEED
o MANUAL INTERRUPTION OF 3-DIMENSIONALCOORDINATE
o RETRACTION OF 3-DIMENSIONAL RIGID TAPPING
o 3-DIMENSIONAL ROTARY ERROR COMPENSATION
o 3-DIMENSIONAL CUTTER COMPENSATION
o WORK SET-UP ERROR COMPENSATION
o INVERSE TIME FEED
