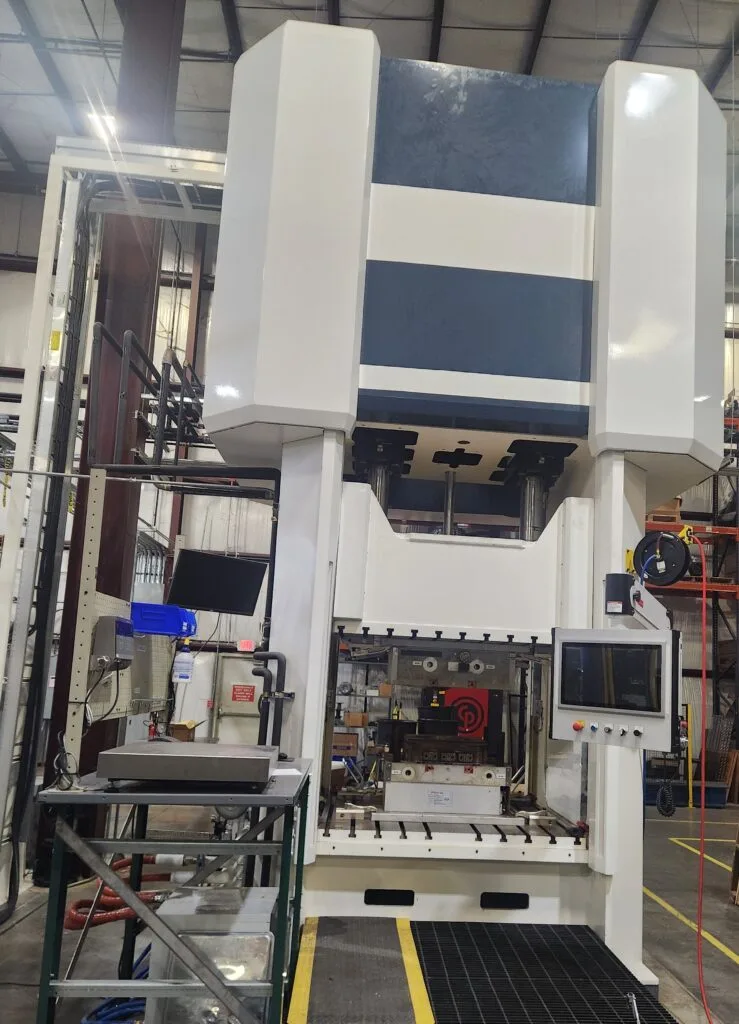

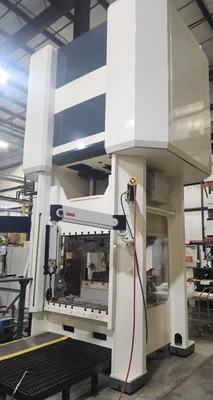

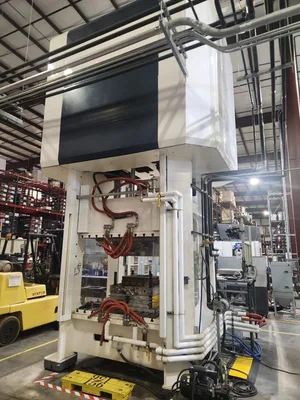

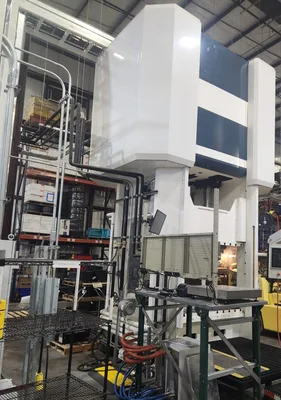

USED 2023 BECKWOOD LSP-250-6464

Capacity: 250 Ton

– Linear Servo Press’s Nitches:
– Off center loading
– Draw and Punching Work with Nitrogen Die Systems
– Heated Platen Applications
– Precision Forming
– High Cleanliness Requirements
– Capacity: 13 to 250 Tons
– Stripping Capacity: 187 Tons
– Day Light: 60″
– Stroke: 36”
– Shut Height: 24″
– Slide Area: 64” x 64″
– Bolster Area: 64” x 64”
– T-Slots: 6″ Centers – Ram and Bolster
– Fast Approach / Retract Speed: 0.01 to 6 in/sec
– Pressing Speed: 0.01 to 0.6 in/sec
– Dwell Capability: Infinite – Near zero energy drawn to maintain the dwell (brake holds tonnage)
– Window: ?″ Wide x ?″ Tall – Must Confirm

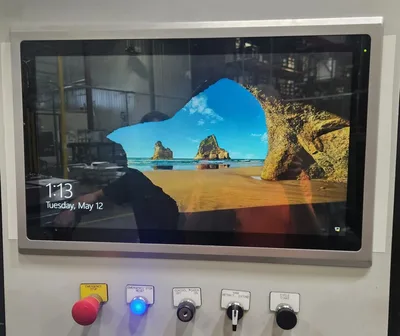

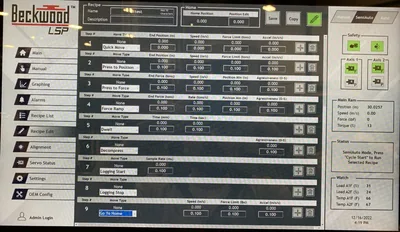

– Press Control: Allen Bradley CompactLogix 5069-L306ER – Programmed for up to 15 Steps
– Pressing Motor: Two @ 22 kW (Two @ ~30 HP)
– Fast Approach Motor: Two @ 30 kW (Two @ ~40 HP)
– Power: 480 Volt, 3 Phase, 60 Hz
– Full Load Amps: 295 Amps
– Pneumatics: 90 psi minimum (estimated 2 SCFM)
– Weight: 81,500 lbs
– Manufacturing Date: 6-2023
