USED Pfaudler 4,000 Gal Pfaudler Glass Lined Reactor, 100/90#

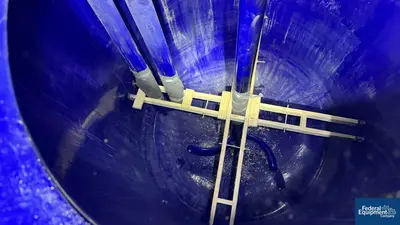

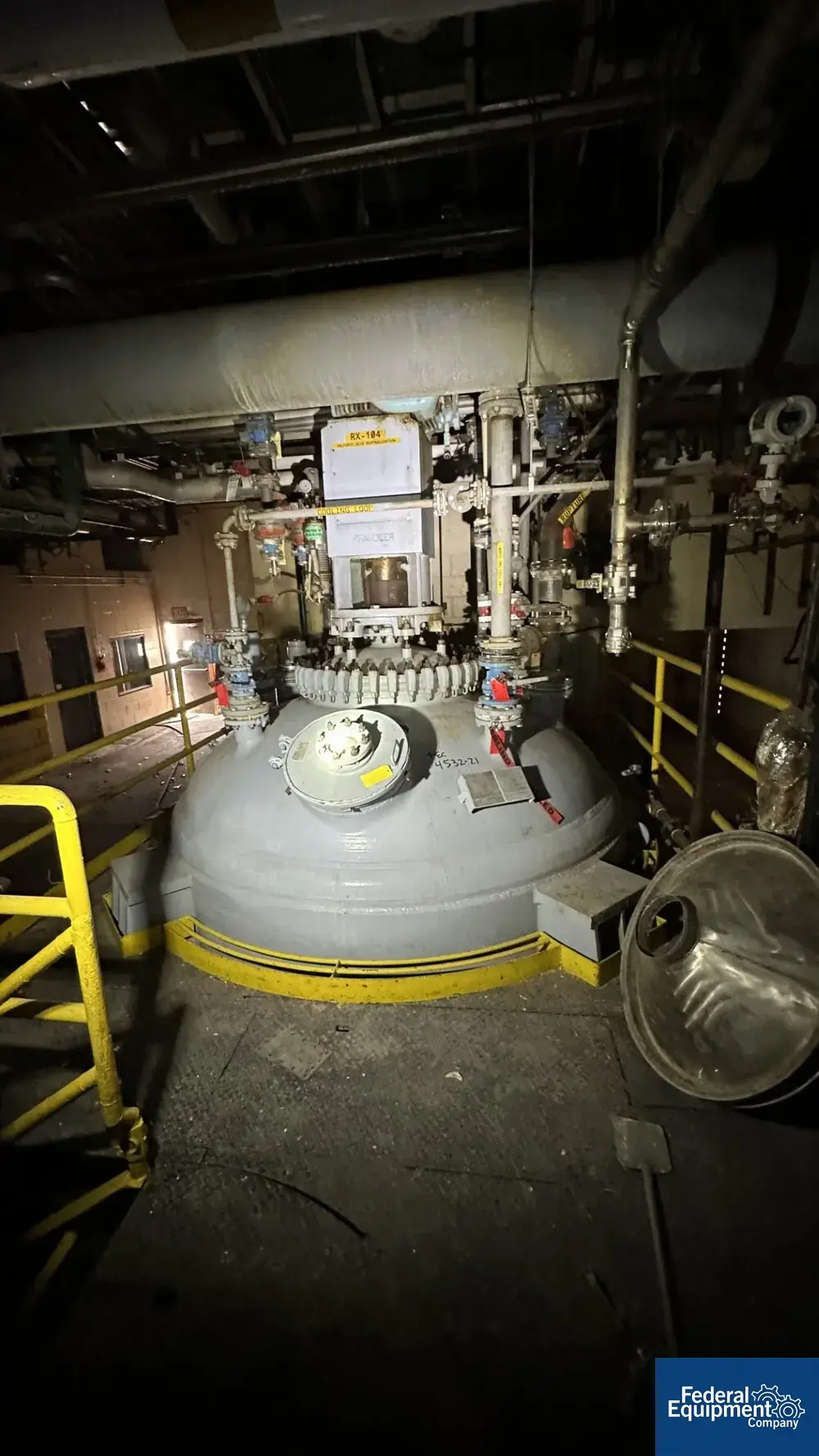

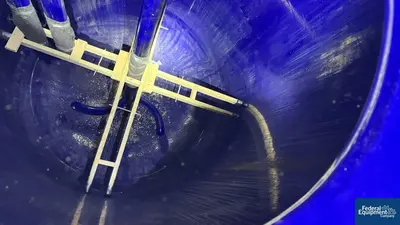

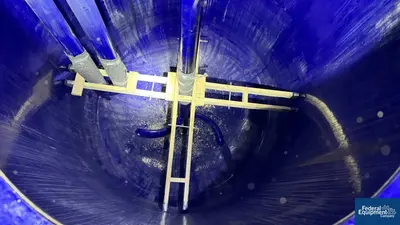

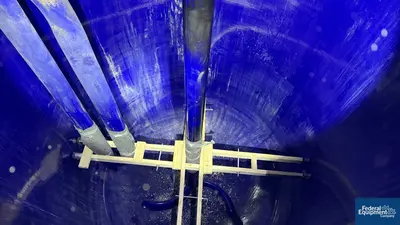

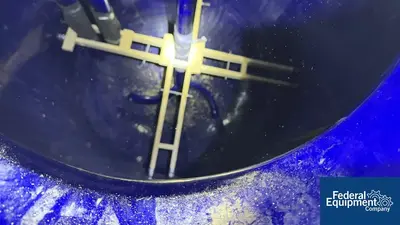

Used 4,000 gallon Pfaudler glass lined reactor, model RA96-100-90, rated 100 psi and full vacuum at 450 f internal, jacketed for 90 psi at 450 f, 7RW Pfaudler agitator drive with mechanical seal, 3 blade retreat curve agitator, D baffle, serial# J014707, national board# 48792, built 1997. Vessel reglassed by Pfaudler, serial# J022506, 1998.

National Board Number: 48792
Year of Construction: 1997
Material of Construction: Glass Lined
Agitated: True
Serial Number: J014707
Jacket Pressure: 90
Jacketed: True
Capacity (Gallons): 4000
National Board: True
Vacuum Rated: True
Drawings: True
Internal Pressure (PSI): 100
