USED Pfaudler 5,000 Gal Pfaudler Glass Lined Reactor, 90/125#

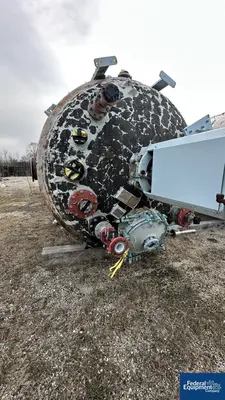

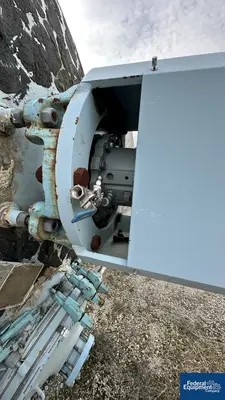

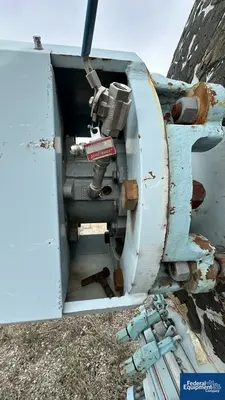

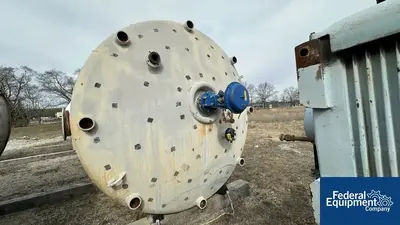

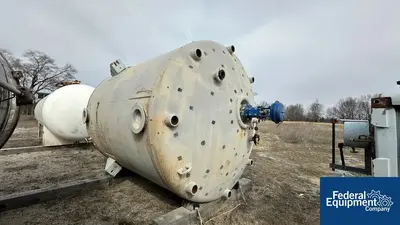

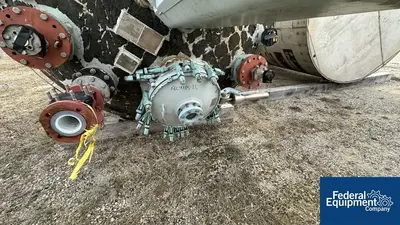

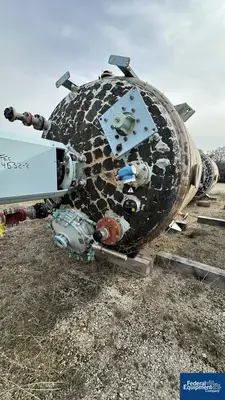

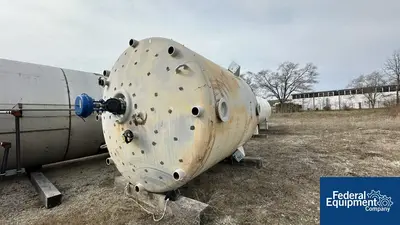

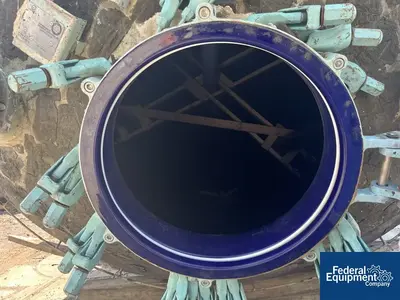

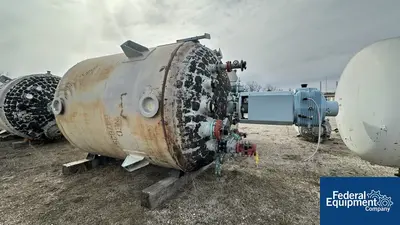

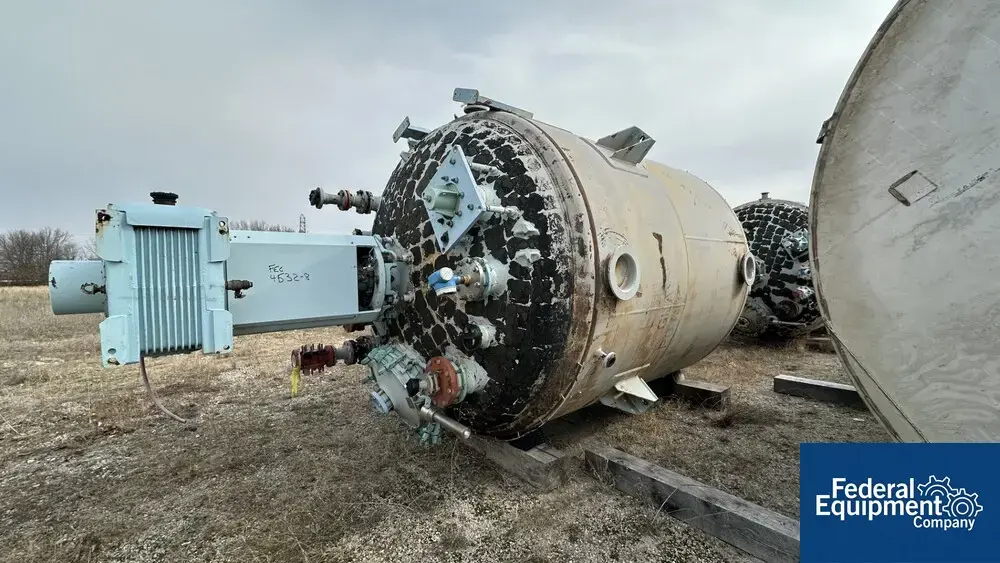

Used 5,000 gallon Pfaudler glassed lined reactor, model KC108-5000, approximately 108" inner diameter x 117" straight side, rated 90 psi and full vacuum at 400 f internal, jacketed for 125 psi and full vacuum at 400 f, 10SRW Pfaudler agitator drive with mechanical seal, 75/50 hp, 1800/1200 rpm, 460 volt xp motor, 4 blade agitator, baffle, 9119 glass, serial# J010979, national board# 48747, built 1997, reglassed by Pfaudler in 2018, serial# 4251322.

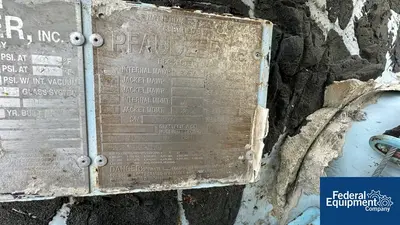

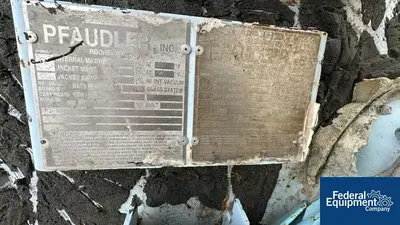

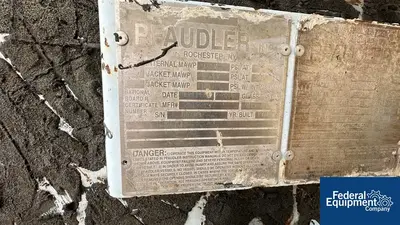

National Board Number: 48747
Year of Construction: 1997
Material of Construction: Glass Lined
Agitated: True
Serial Number: J010979
Jacket Pressure: 125
Jacketed: True
Capacity (Gallons): 5000
National Board: True
Vacuum Rated: True
Drawings: True
Internal Pressure (PSI): 90
