Flexcon Well-Rite WR60R Pressure Tank System – 20 Gallon Hydro-Pneumatic Water Pressure Tank

Flexcon Well-Rite WR60R Pressure Tank System – Good Condition

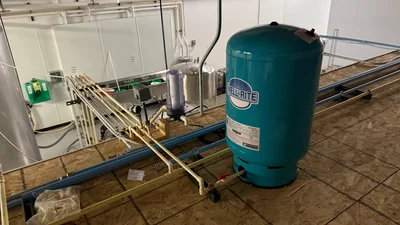

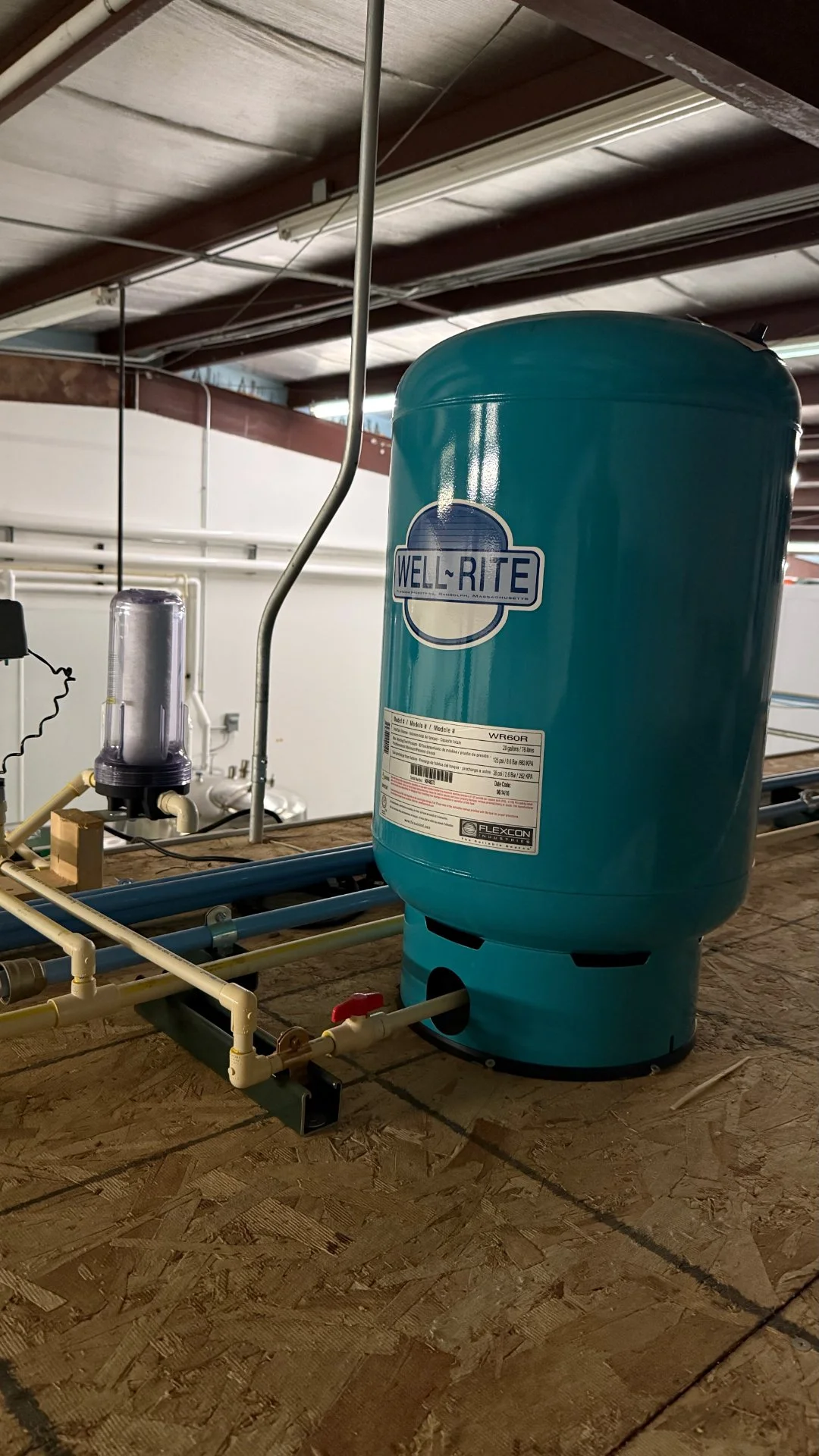

This Flexcon Well-Rite WR60R pressure tank system, sourced from a recent cold brew coffee plant closure, features a 20-gallon pre-charged hydro-pneumatic pressure tank along with associated piping, controls, and filtration components. It is in good working condition and is ideal for applications requiring water pressure stabilization and boosting.

Key Features:
• Model: Well-Rite WR60R
• Tank Capacity: 20 Gallons (76 Liters)
• Maximum Working Pressure: 125 PSI
• Factory Pre-Charge: 38 PSI
• Connection Size: 1" NPT Stainless Steel Connection
• Tank Diameter: 16"
• Tank Height: 29"
• Construction: 16-Gauge Steel Shell
• Certification: NSF/ANSI 61 Certified
• Ideal for: craft breweries, beverage producers, irrigation systems, and commercial water distribution
• Built with durable, industry-grade components

Note: A reasonable decommissioning fee will be added to cover our professional onsite removal and loading services.

FREIGHT IS AVAILABLE! Message now for a quote.

Flexcon Well-Rite WR60R pressure tank system featuring a 20-gallon pre-charged hydro-pneumatic pressure tank with associated piping, controls, and filtration components. Designed for water pressure stabilization, pressure boosting, water storage, irrigation systems, reverse osmosis systems, and commercial water distribution applications.

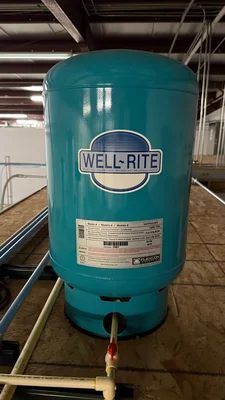

The system is built around a Flexcon Well-Rite WR60R diaphragm-style pressure tank utilizing a butyl rubber diaphragm and polypropylene water chamber to separate air and water while reducing pump cycling and maintaining consistent system pressure.

Manufacturer

Flexcon Industries

Model

Well-Rite WR60R

Specifications

Tank Capacity: 20 Gallons (76 Liters)
Maximum Working Pressure: 125 PSI
Factory Pre-Charge: 38 PSI
Connection Size: 1" NPT Stainless Steel Connection
Tank Diameter: 16"
Tank Height: 29"
Tank Weight: Approximately 36 lbs
Construction: 16-Gauge Steel Shell
Certification: NSF/ANSI 61 Certified

Features
Flexcon Well-Rite WR60R Pressure Tank
Heavy-Duty Steel Construction
Butyl Rubber Diaphragm
Stainless Steel Water Connection
Factory Pre-Charged Design
Pressure Stabilization And Pump Protection
Integrated Piping And Valving
Includes Mounted Water Filter Housing
Suitable For Potable Water Applications
Reduces Pump Cycling And System Wear
Applications
Well Water Systems
Brewery Utility Water Systems
Pressure Booster Systems
Irrigation Systems
Reverse Osmosis Systems
Commercial Water Distribution
Industrial Process Water Systems
Condition

Used. Removed from service in a commercial facility. Includes tank, piping, valves, filter housing, and associated mounted components shown. Cosmetic wear consistent with normal use. Buyer should inspect and verify system configuration prior to installation.

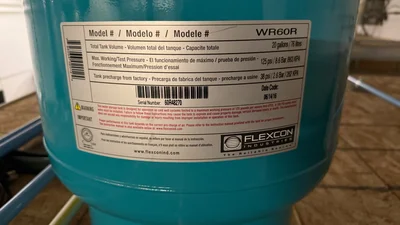

Nameplate Information

Model: WR60R
Serial Number: 60R48270
Date Code: 06/14/2016
Capacity: 20 Gallons / 76 Liters
Maximum Pressure: 125 PSI
Factory Pre-Charge: 38 PSI
