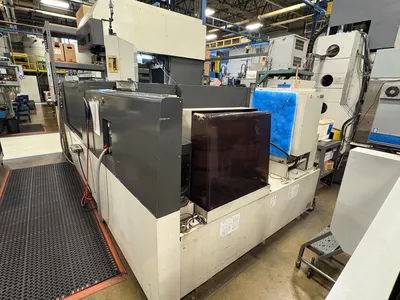

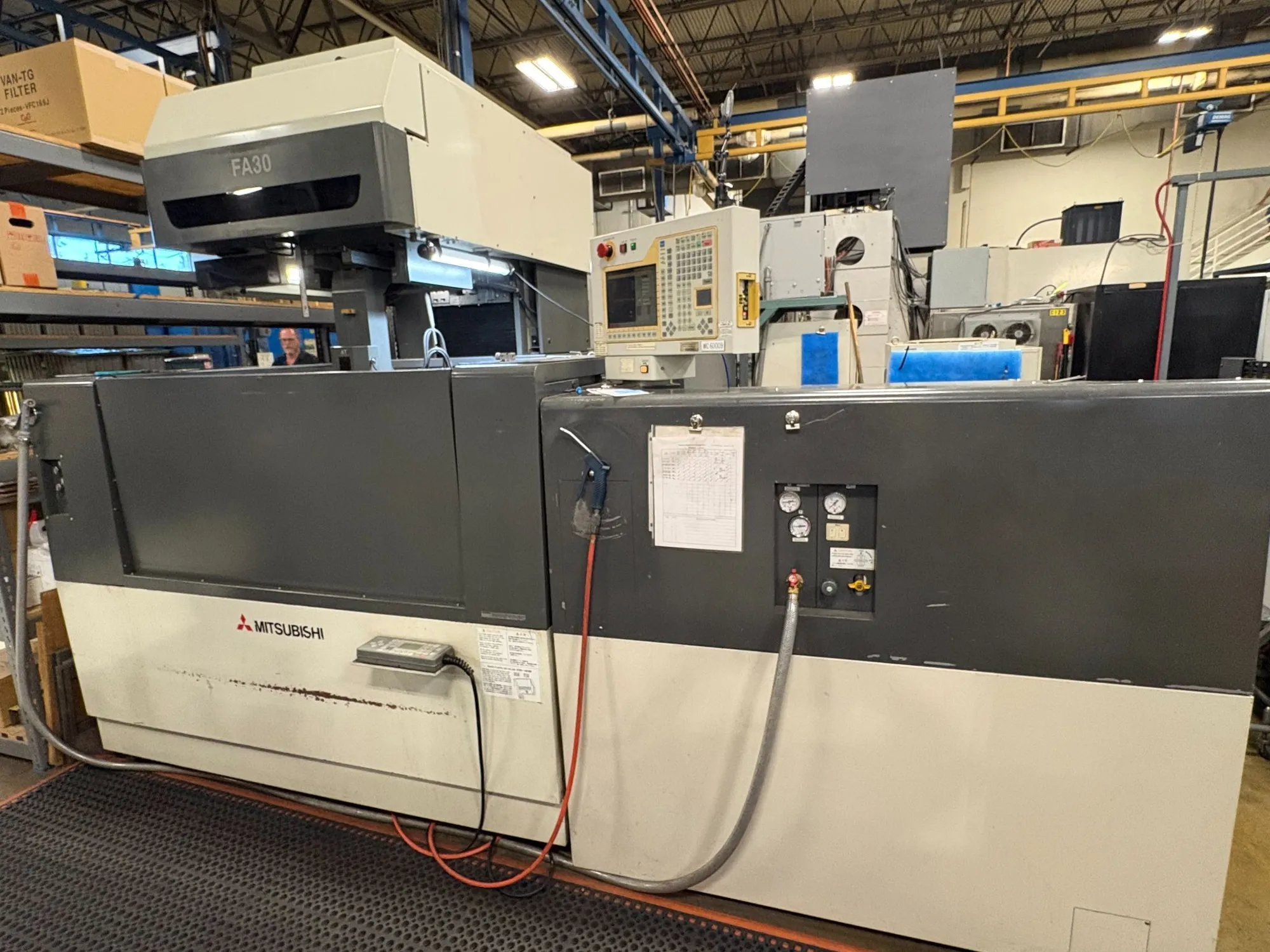

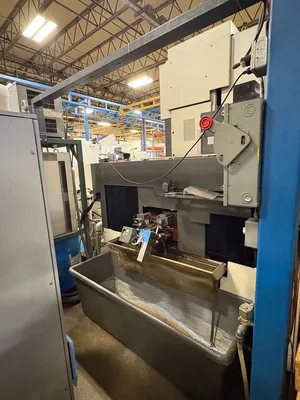

USED 2001 MITSUBISHI EDM FA-30M

Mitsubishi FA-30M Wire Type Electrical Discharge Machine EDM (2004)
Travels:
750 mm (X-Axis)
500 mm (Y-Axis)
350 mm (Z-Axis)
U/V Axis Traverse: ± 75 mm each
Table Dimensions: 1,100 mm × 875 mm
Max Workpiece Dimensions: 1,300 × 1,000 × 345 mm
Max Workpiece Weight: 3,000 kg
Maximum Taper Angle: ± 15° (at 260 mm plate thickness)
Wire Electrode Diameter: 0.1 mm to 0.3 mm (usually 0.2 mm - 0.25 mm standard)
Machine Dimensions: Approx. 2,600 × 2,650 × 2,150 mm
Total Machine Weight: Approx. 4,600 k
