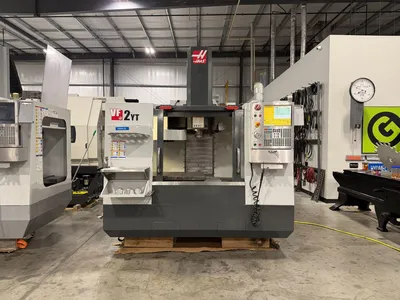

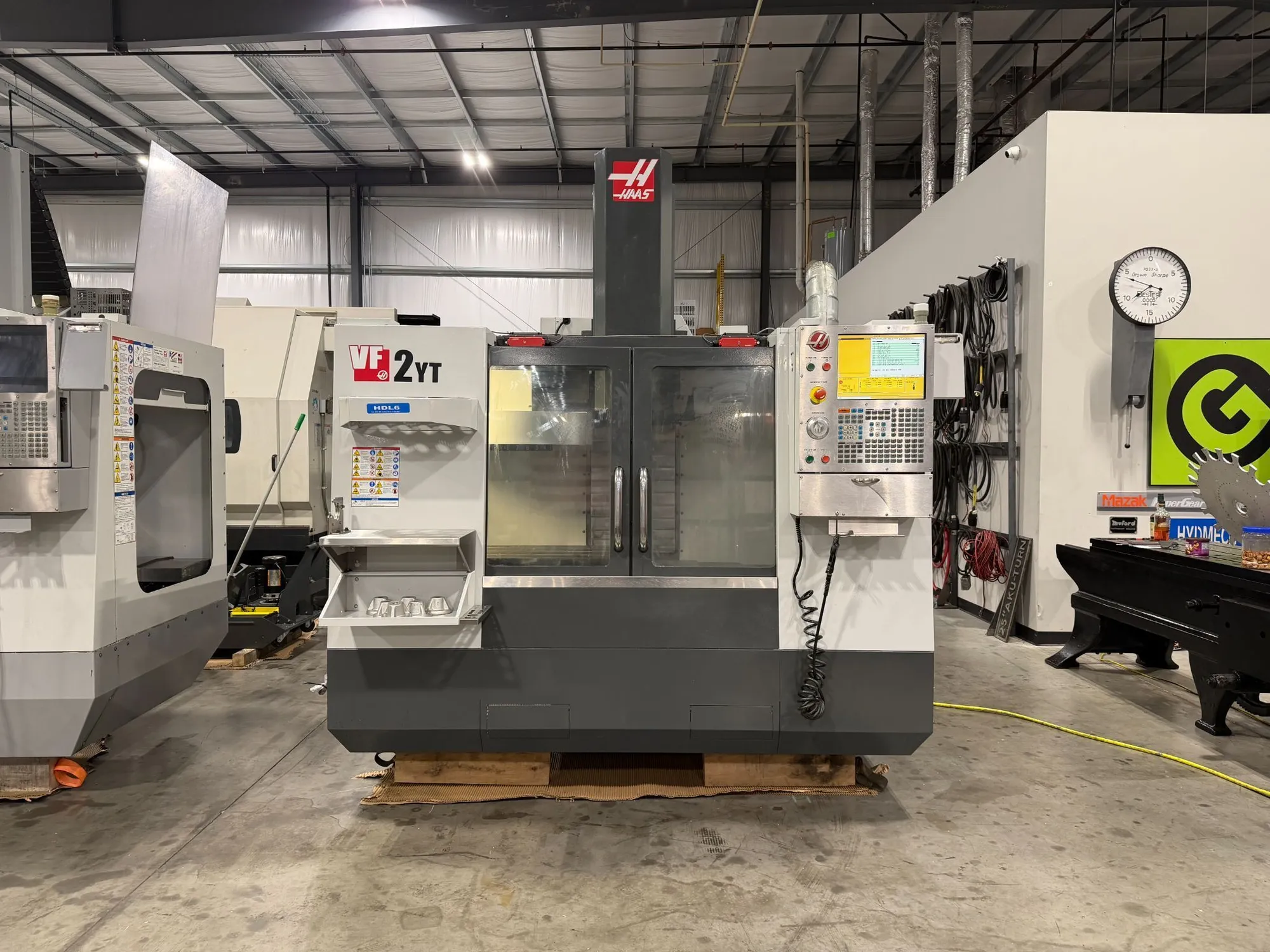

USED 2012 HAAS VF-2YT
Overview
Description
This 2012 Haas VF-2YT is a 40-taper CNC vertical machining center with extended Y-axis travel, a 36 in x 18 in table, and a 20-tool automatic tool changer. Final configuration, options, hours, and operating condition should be confirmed during inspection.
Specifications
| X | 30" | 762 mm |
|---|---|---|
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 36" | 914.4 mm |
| Dimensions | Approx. shipping dimensions: 106 in L x 101 in W x 101 in H | Approx. shipping dimensions: 106 in L x 101 in W x 101 in H |
| Weight | Approx. shipping weight: 7,800 lb | Approx. shipping weight: 7,800 lb |
Equipped With:
Haas CNC control
20-pocket carousel automatic tool changer
36 in x 18 in table
40-taper spindle
8,100 RPM spindle
3-phase electrical service, 195-260V per auction listing
55-gallon coolant tank standard model feature
Rigid tapping standard model feature
Specifications:
Travels: 30 in X-axis, 20 in Y-axis, 20 in Z-axis
Table size: 36 in x 18 in
Table capacity: 3,000 lb evenly distributed
Spindle speed: 8,100 RPM
Spindle power: 30 HP
Spindle taper: CT or BT 40
Tool changer: 20-tool carousel
Rapids: 1,000 IPM X/Y/Z
Coolant capacity: 55 gal
Electrical: 3 phase, 195-260V per auction listing; Haas standard low-voltage spec 220 VAC, 70A full load
Approx. shipping weight: 7,800 lb standard configuration
Equipped With
Haas CNC control
20-pocket carousel automatic tool changer
36 in x 18 in table
40-taper spindle
8,100 RPM spindle
3-phase electrical service, 195-260V
55-gallon coolant tank
Rigid tapping
