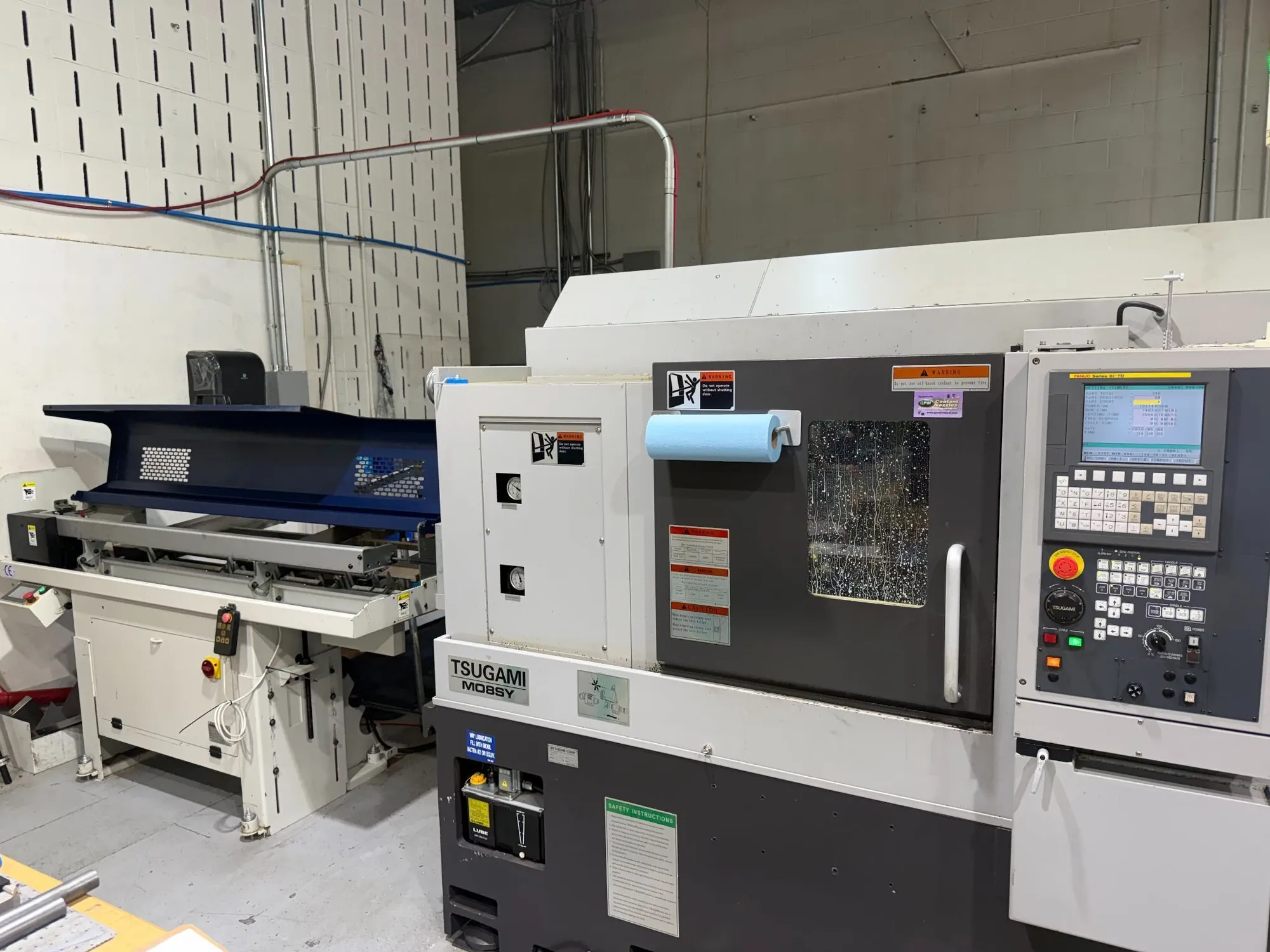

USED 2015 TSUGAMI MO8SY

California, United States
166Listings|111Followers
Overview
5-Axis or More CNC Lathes

TSUGAMI M08SY CNC Multi-Axis Lathe, 2015 model with Y-axis, milling capability, and sub spindle. Professionally maintained, this used unit offers robust performance for precision tasks. Ideal for enhancing productivity and efficiency in demanding environments.

Specs
Turning Length
14.96"
379.98 mm
Distance Between Spindles
19.92"
505.97 mm
Chuck Size 1
8"
203.2 mm
Spindle Nose 1
A2 - 6
A2 - 6
Spindle Bore Diameter 1
2.87"
72.898 mm
Bar Capacity 1
2.5"
63.5 mm
Spindle Speeds 1
4,500 RPM
4,500 RPM
Spindle Horsepower 1
15 hp
11.2 kW
Chuck Size 2
6"
152.4 mm
Spindle Nose 2
FLAT NOSE
FLAT NOSE
Bar Capacity 2
2"
50.8 mm
Spindle Speeds 2
4,500 RPM
4,500 RPM
Spindle Horsepower 2
10 hp
7.5 kW
X1 - Axis Travel
8.7"
220.98 mm
Z1 - Axis Travel
15.75"
400.05 mm
Y1 - Axis Travel
3.94"
100.08 mm
C - Axis Indexing 1
0.00
0.00
C - Axis Indexing 2
0.00
0.00
W - Axis Travel Sub Spindle
19.92"
505.97 mm
Rapid Traverse Rate - X1
945 ipm
Rapid Traverse Rate - Z1
1062 ipm
Rapid Traverse Rate - Y1
472 ipm
Turret Tool Positions 1
12 station
12 station
Turret Rotary Tool Speeds 1
5,000 RPM
5,000 RPM
Turret Rotary Tool Horse Power 1
5 hp
3.7 kW
Machine Weight
13,007 lb
5,899.9 kg
Control
CNC (FANUC 0I - TD CNC COLOR CONTROL)
CNC (FANUC 0I - TD CNC COLOR CONTROL)
Weight
0.00
0.00
Equipped With

FANUC OI - TD CNC CONTROL
8.4" COLOR LCD
8", 6" 3 JAW HYDRAULIC CHUCKS
ROYAL COLLET CHUCKS FOR BOTH SPINDLES
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
TOOL EYE
WORK CATCHER
RIGID TAP ON THE MILLING HEAD
CUSTOM MACRO
VARIABLE LEAD THREAD CUTTING
EDGE MAGAZINE SHORT BAR LOAD SYSTEM
BARFEED INTERFACE
PATROL LIGHT
