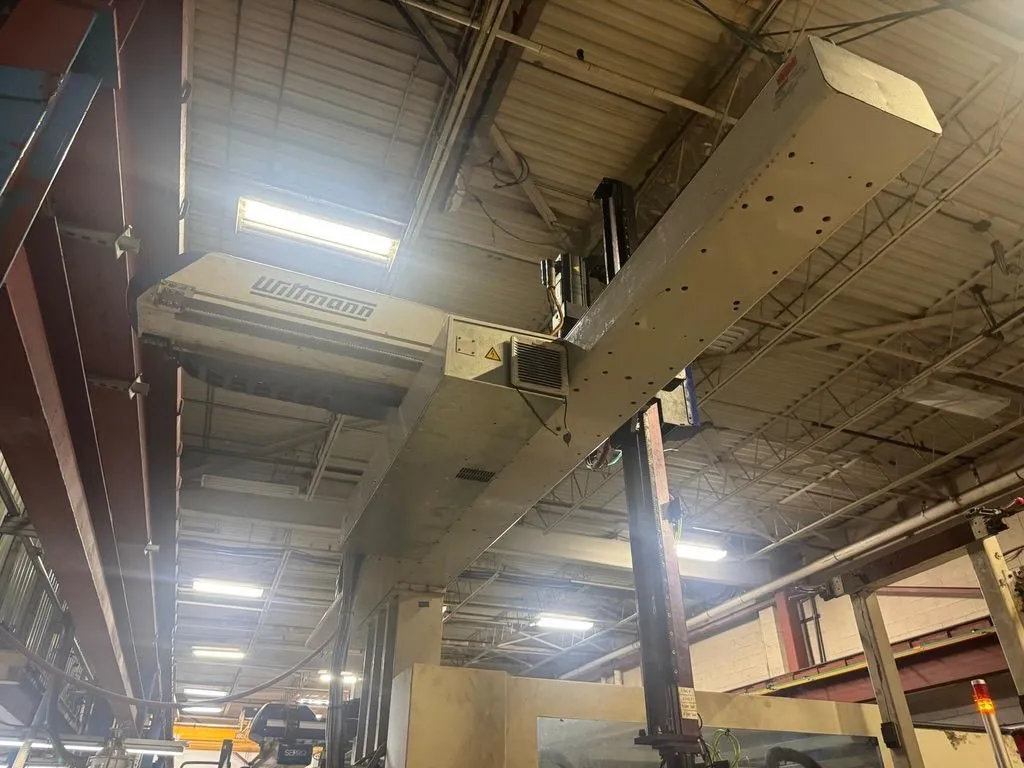

USED 2013 WITTMANN WB 32-0591

Electrical
Power supply: Per ID plate on robot
Manual speed limit: 250 mm/sec
Servo precision: 0.01° increments

Pneumatics
Air pressure required: 60–100 PSI (4–7 bar)
Shutoff pressure: 50 PSI (3.5 bar)
X-axis air/cycle: 1.1 ft³ at 90 PSI
A-axis air/cycle: 1.3 ft³ at 90 PSI
Vacuum per circuit: 0.4 ft³/s

Controller: R8
Interface: Touch screen + mechanical buttons
IMM interface: SPI & Euromap 12
E-stop: Cross-linked with IMM
EcoMode: Yes | SmartRemoval: Yes | ACD: Yes
Noise: ≤ 70 dB(A)
Series: Middle Series — 300 to 1,200T IMM
