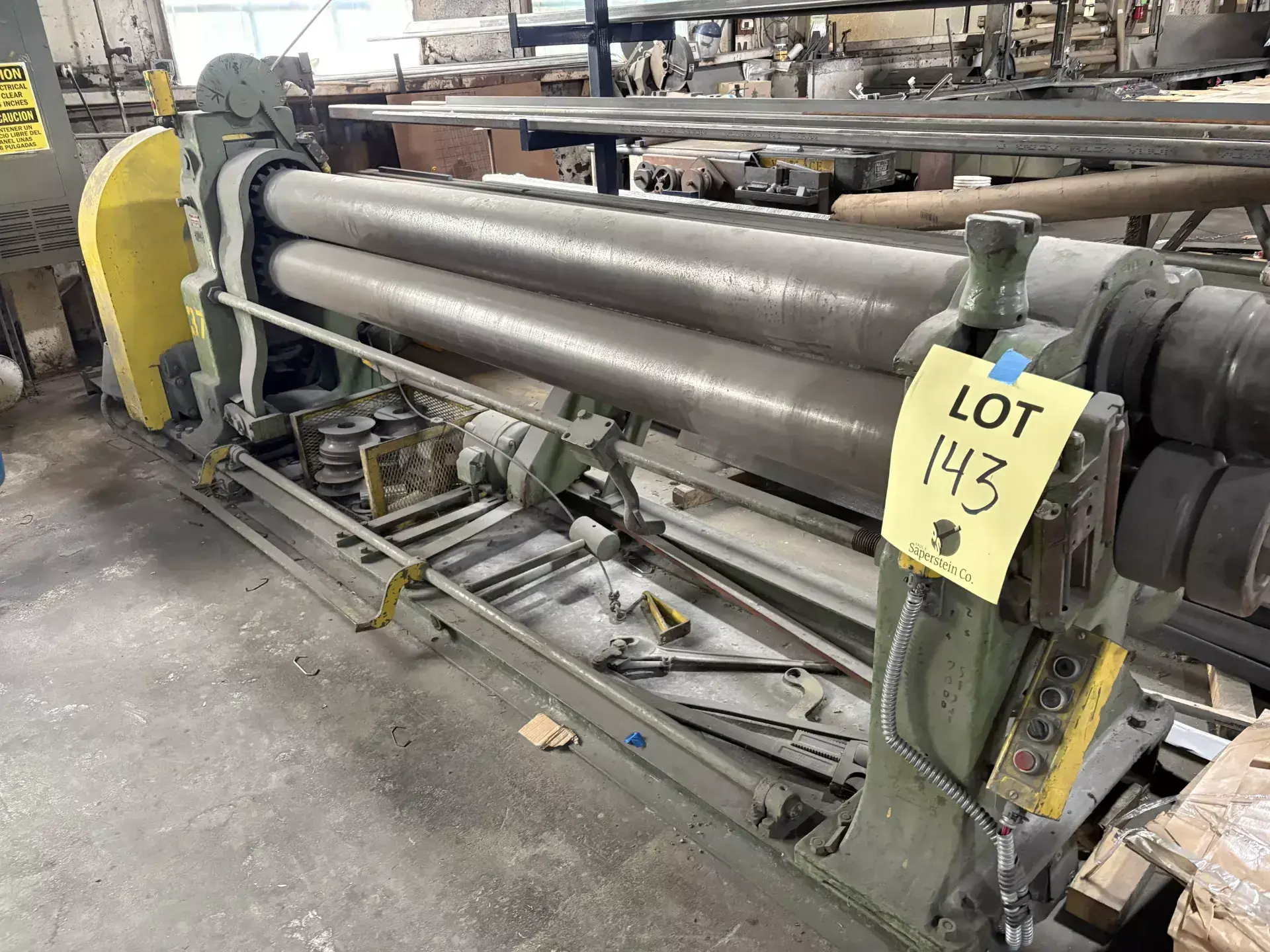

USED HENDLEY & WHITTEMORE 8-G

8’ x 1/4” BELOIT HENDLEY & WHITTEMORE 3-ROLL INITIAL
PLATE BENDING ROLL W/ANGLE BENDING ATTACHMENT
Serial No 15446, Model 8-G

EQUIPPED WITH:
Angle Bending Roll Attachment
Manual Drop End
Power Rear Roll Adjustment
Power Driven Rolls (All)

CATALOG SPECIFICATIONS:
Bending Capacity, Rated 8’ x 1/4”
Roll length 98”
3-Rolls, Diameter 8”
Angle Bending Roll Attachment:
Roll Size 8”
Angle Capacity Leg-Out 30” Min Diameter 2-1/2” x 2-1/2” x 1/4”
Angle Capacity Leg-In 30” Min Diameter 2-1/2” x 2-1/2” x 1/4”
Motor Horsepower/RPM 10 HP/1800 RPM
Floor Space Required, L x W 156” x 48”
Weight Approximately 9800 LBS

F.O.B OUR WAREHOUSE
