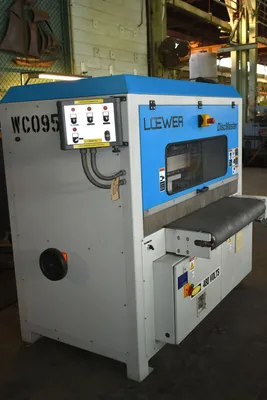

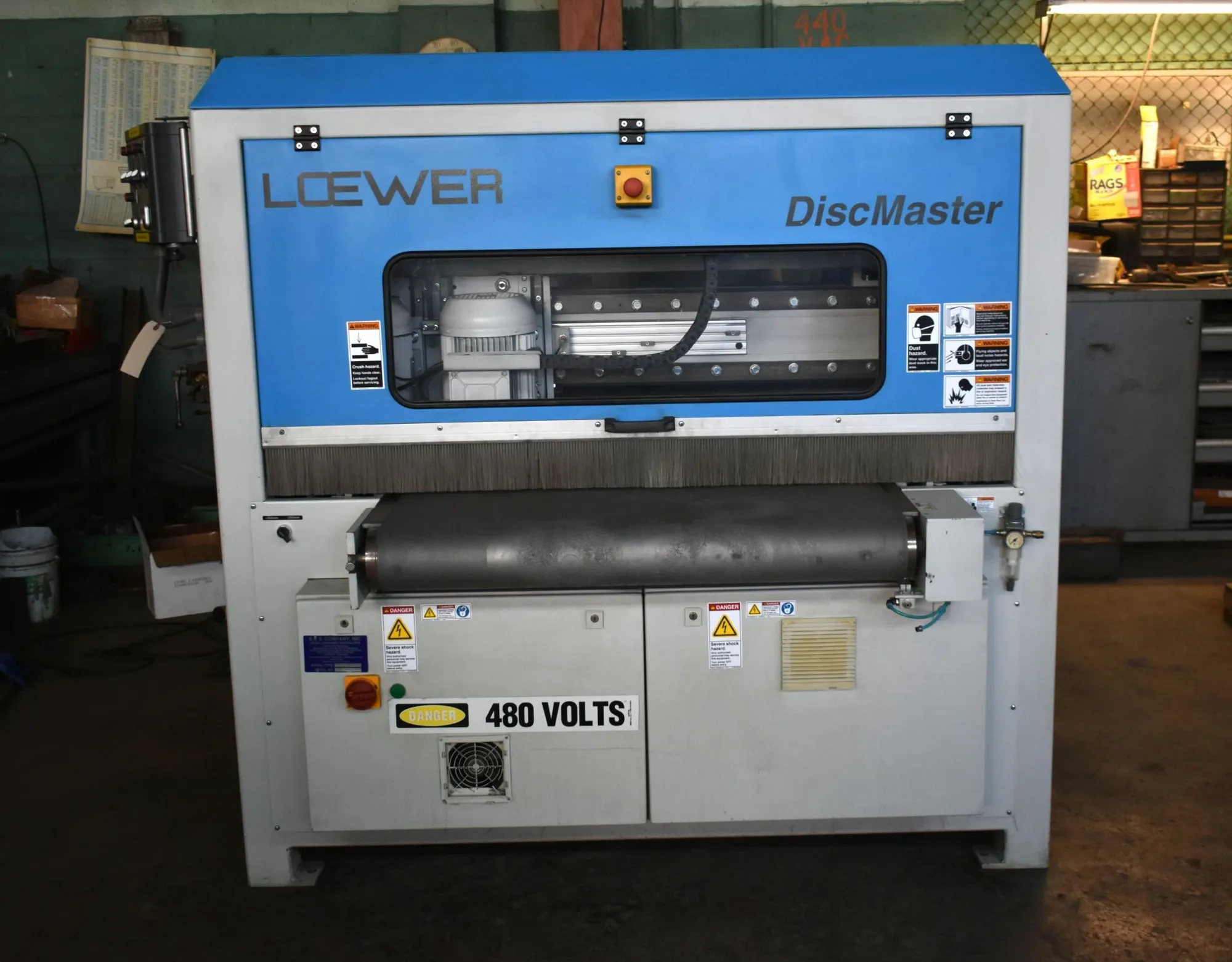

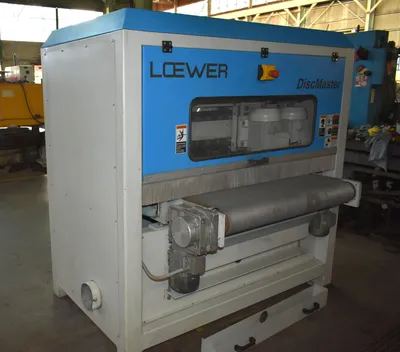

USED 2012 LOEWER DISCMASTER 4TD

40” (1000 MM) LOEWER “DiscMaster” THROUGH FEED ABRASIVE BELT
DEBURRING & EDGE ROUNDING DISC GRINDER SANDER
New 2012, Serial No 11477, Model 4TD-1000,
Series DiscMaster

EQUIPPED WITH:

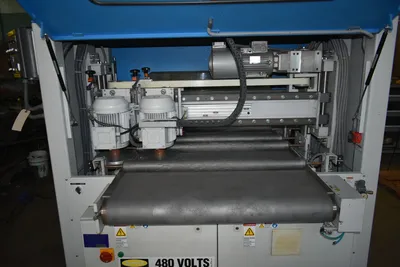

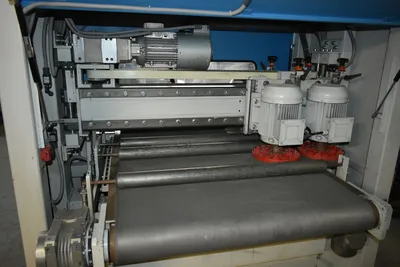

(4) 10” (250 MM) Motorized Disc Heads
(2) Infeed Deburring Disks & (2) Outfeed Edge Rounding Discs
Oscillating Drive Gear Motor & Tooth Belt w/Variable
Speed Via Frequency Inverter
Oscillating Stroke Over Full Width Of Feed Belt

CATALOG SPECIFICATIONS:
Working Width 39.37” 1000 MM
Material Thickness, Range .012” to 2.75”
Material Thickness, Range 0.3 MM to 70 MM
Smallest Part Size, L x W 0.78” x 0.78”
Smallest Part Size, L x W 20 MM x 20 MM
Disc Size 10” 250 MM
Feed Speed, Variable 1 to 5 M/MIN
Feed Speed, Variable 3 to 16 F/MIN
Overall Machine Length 63” 1600 MM
Overall Machine Width 75” 1900 MM
Electrical System 480/3/60
Weight Approximately 3750 LBS 1500 KG

NOTE: Machine Is Designed To Do Deburring & Edge
Rounding In One Pass. The Process Does All Inside
& Outside Edges At 360-Degrees Due To The Rotating
Oscillating Discs. This heavy-duty, through-feed
disc grinder is designed for uniform 360-degree
deburring and edge rounding of laser, plasma, and
water-jet cut metal parts in a single pass.
The machine uses quick-change tools
(such as SoftDisc, CompactDisc, or OxideDisc) to
easily switch between materials like steel,
stainless steel, and aluminum.

F.O.B. OUR WAREHOUSE
