USED 2006 ANDI STRATOS/NEST
Overview
Description
Lot Closes:: 7/8/2026 10:00:00 AM PT

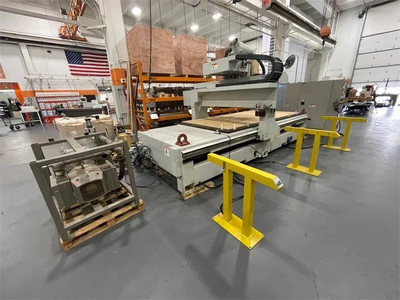

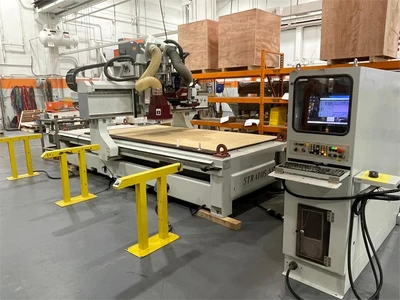

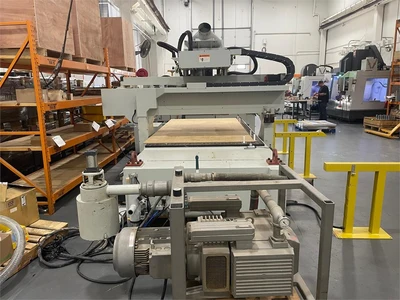

Andi "Stratos/Nest" CNC Router
See video of machine in operation

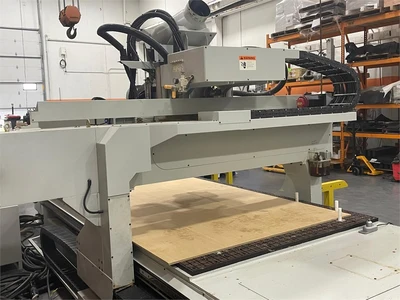

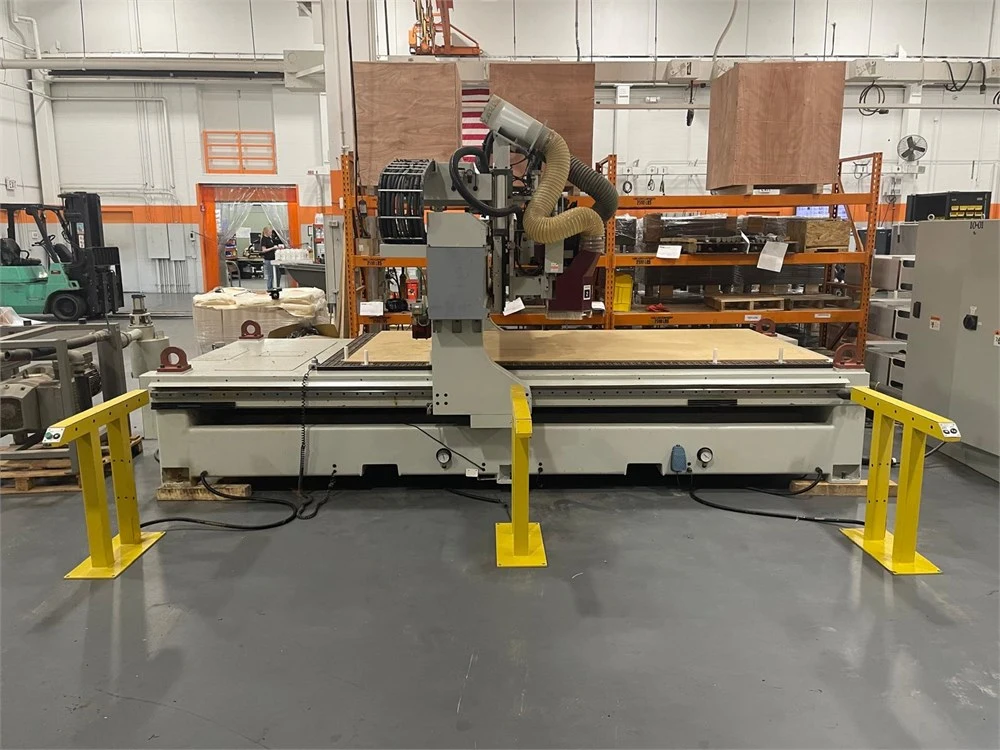

Fixed table, moving gantry
FANUC brushless AC servo motors driving precision ball screws on the Y and Z axes, helical rack-and-pinion on X axis

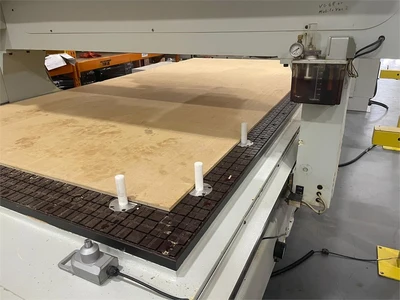

63" x 126" phenolic router table
Gridded for custom gasketing and fixturing
Pneumatic reference stops
3,400 mm (133.5") x axis stroke
2,180 mm (85.5") y axis stroke
250 mm (10") z axis stroke
1,417 IPM maximum feed speed for x and y axes
393 IPM maximum feed speed for z axis

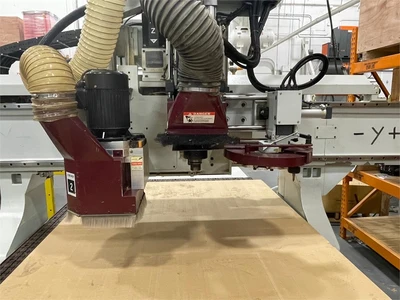

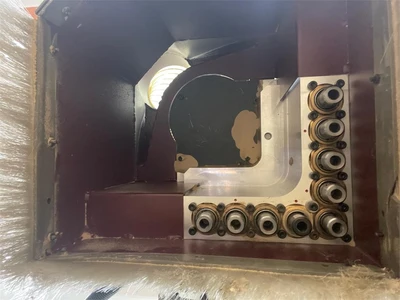

Drill unit with (9) vertical spindles, 2 HP motor

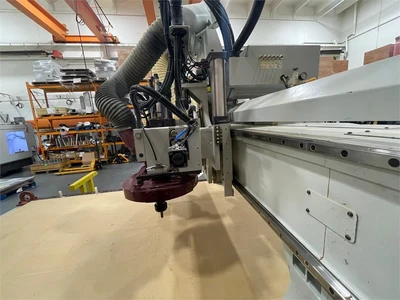

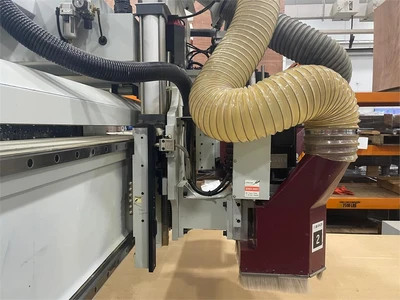

Router
14.75 HP
HSK, quick-change
Variable RPM
CW/CCW rotation

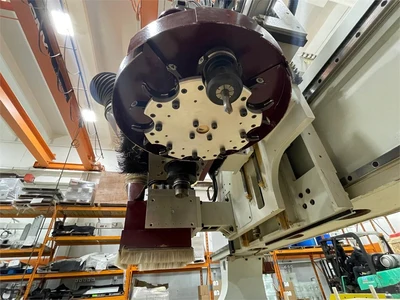

(8) position rotary tool changer
Tool length measuring device
Centralized lubrication system
Photo light safety barriers

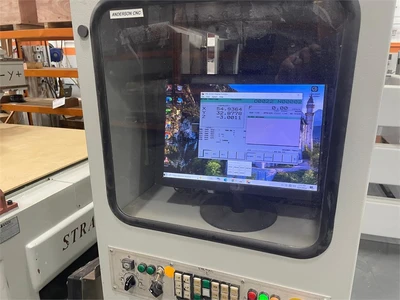

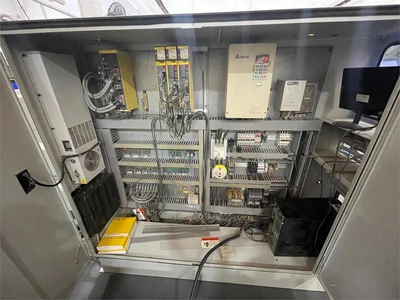

Control console
PC operating in Windows
Standard keyboard and mouse

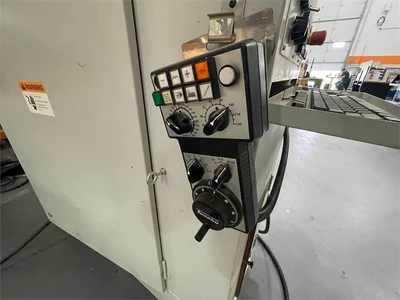

Remote control pendant

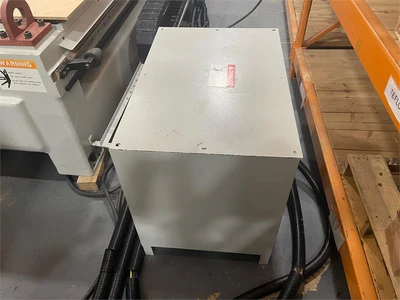

External electrical transformer

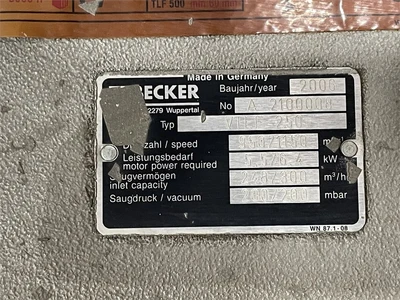

Becker "VTLF-250" vacuum pump
Rebuilt with new vanes
8.5 HP motor
300 m/hr. capacity

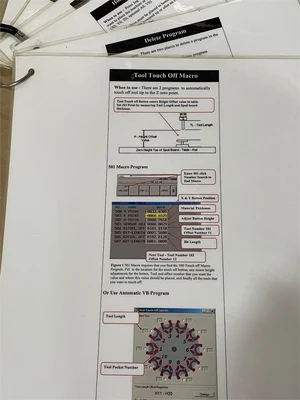

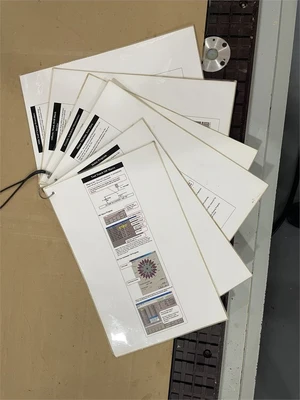

Custom made operation guide (see photos)
Tooling and tool holders NOT included
Specifications
| Weight | 10,000 Lbs | 10,000 Lbs |
|---|
Phase: 3 PHASE
Voltage: 460 VOLT
Buyer Inspection Period: By appointment only, contact Jack Ragan, [email protected], 503-806-4611
Load Out Period: July 9 - July 17, 2026 (by appointment only)
Estimated Dimensions: 25' L x 14' W x 8' H (as shown in photos, shipping dimensions TBD)
Seller Comment: Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
Load Fee: 1000.00
