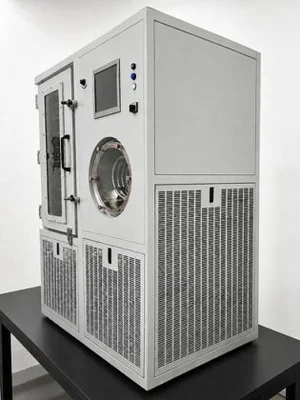

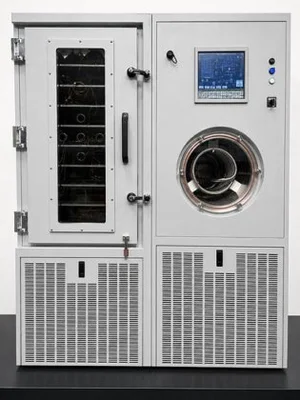

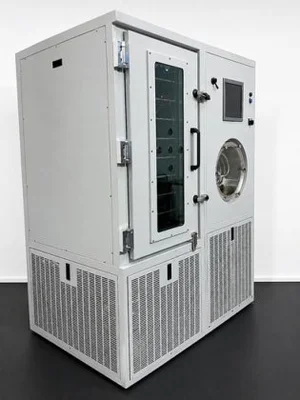

USED MECHATECH SYSTEMS LTD. LSG40 LYODRY GRANDE
Overview
Description
The MECHATECH SYSTEMS LSG40 LyoDry Grande Freeze Dryer is a fully automated lyophilization system designed for pilot-scale and production-scale freeze drying applications. It features nine temperature-controlled shelves, a large 30 kg ice condenser, touchscreen control, and advanced process automation for precise and reproducible drying of pharmaceutical, biological, and research samples. The system supports bulk and vial drying and offers optional stoppering capabilities.
Key Highlights:
- Fully automated operation with touchscreen interface- Nine temperature-controlled shelves
- Shelf temperature range from -40°C to +60°C
- 30 kg ice condenser capacity
- -55°C condenser temperature
- Stores up to 200 process profiles
- Data logging, analysis, and audit trail capabilities
- Automatic endpoint determination
- Optional hydraulic stoppering shelves
- Integral vacuum pump with optional dry pump
- Automatic hot gas defrost
- CFC-free refrigeration
- Suitable for bulk and vial freeze drying
Applications / Uses:
- Pharmaceutical lyophilization
- Biopharmaceutical manufacturing
- Pilot-scale process development
- Production-scale freeze drying
- Vaccine and biologics processing
- Research laboratories
- Food and beverage sample preservation
- University and government research applications
Typical Specifications (Summary):
- Shelf Quantity: 9
- Total Shelf Area: 1.69 m²
- Individual Shelf Size: 375 × 500 mm
- Shelf Temperature Range: -40°C to +60°C
- Temperature Accuracy: ±0.5°C
- Condenser Capacity: 30 kg
- Condenser Temperature: -55°C
- Control System: Touchscreen with programmable recipes
- Profile Storage: >200 process profiles
- Defrost Method: Automatic hot gas defrost
- Vacuum Pump: Integral rotary vane pump (optional dry pump)
- Construction: 316L stainless steel
- Optional Features: Stoppering, pressure control, IQ/OQ qualification, remote monitoring
Sameer Khanna
Sales Manager - BionexScientificUSA
(732) 672-5380Show moreShow lessClick to Request More Info
Specifications
Type: Lyophilizers (Freeze Dryers)
