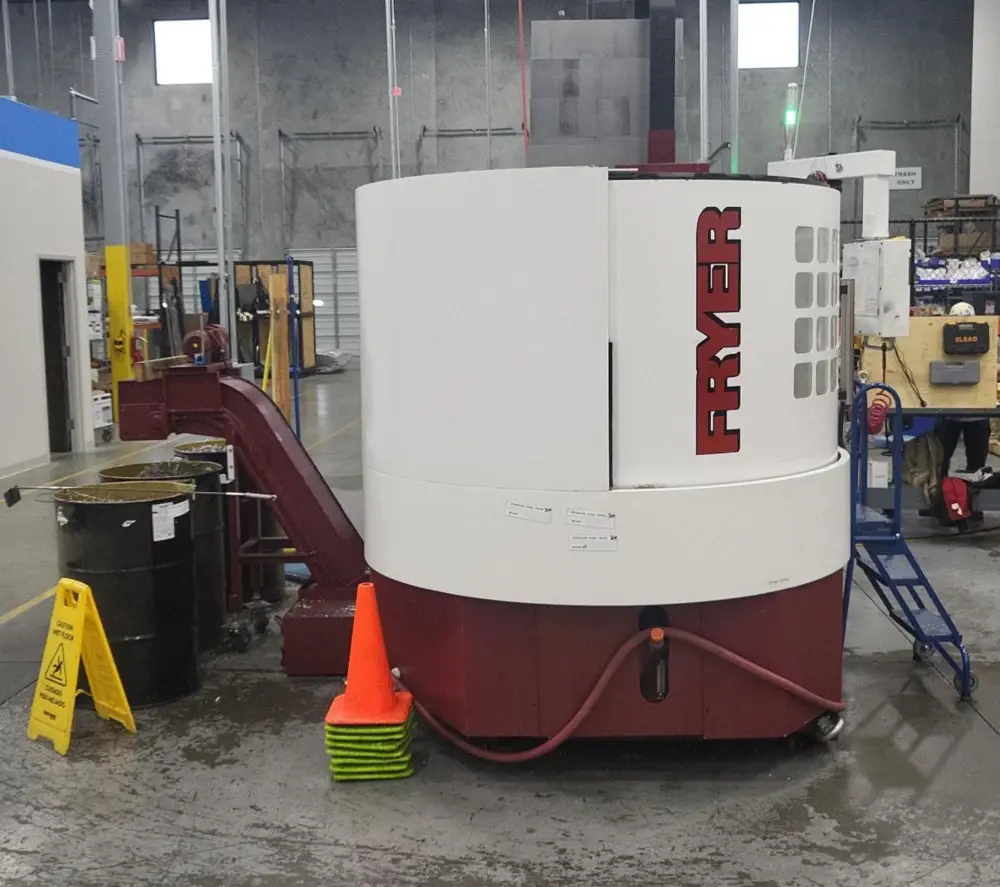

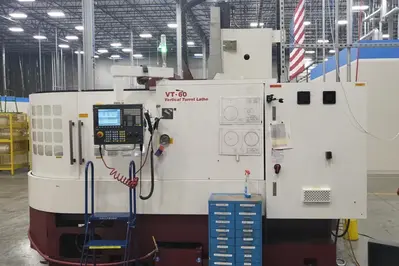

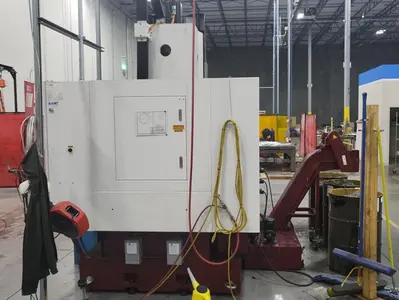

USED 2022 FRYER VT-60
Overview
Description
Used vertical boring mill features a 50" chuck, spindle speed of 500 RPM, and a 75 HP spindle motor. It offers a turret with 8 positions and live tooling. Max part weight capacity is 10,000 lbs. Equipped with a chip conveyor.
Specifications
| Table Dia | 50" | 1,270 mm |
|---|---|---|
| Swing | 60" | 1,524 mm |
| Power | 75 hp | 55.9 kW |
| RPM | 500 RPM | 500 RPM |

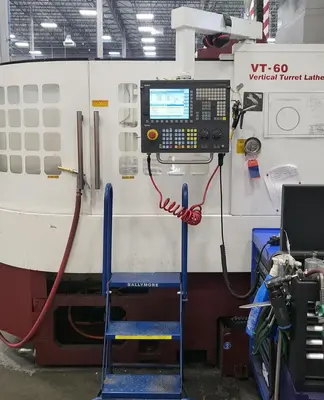

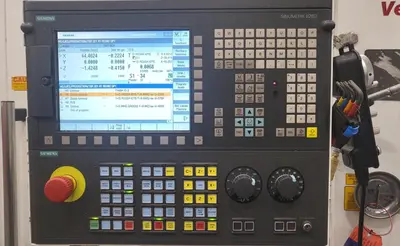

| Control | CNC | CNC |
| Dimensions | 162" x 79" x 148" | 162" x 79" x 148" |
| Weight | 32,000 Lbs | 32,000 Lbs |
Chuck Size 50"
Bar Capacity 2.6"
Spindle Speed 500 RPM
Distance Between Centers 32"
X-Axis Column Travel 34"
Z-Axis Travel 32"
Cutting Diameter Range 0 - 60"
Turret 8 Position
Turret Face to Spindle Center -3" - 31"
Turret Face to Spindle Nose 8" - 40"
Spindle Motor 75 HP
Live Tooling Spindle Motor/Speed 10 HP / 10 - 40,000 RPM
Max Part Weight 10,000 Lbs
Equipped With
BMT-65 Turret Tooling
Live Tooling
A2-15 Spindle Nose

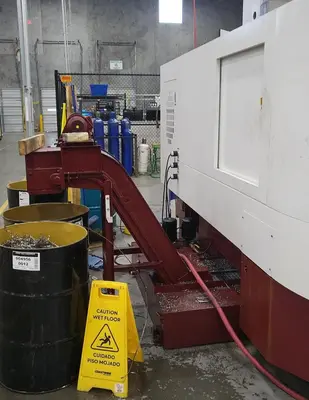

Chip Conveyor
