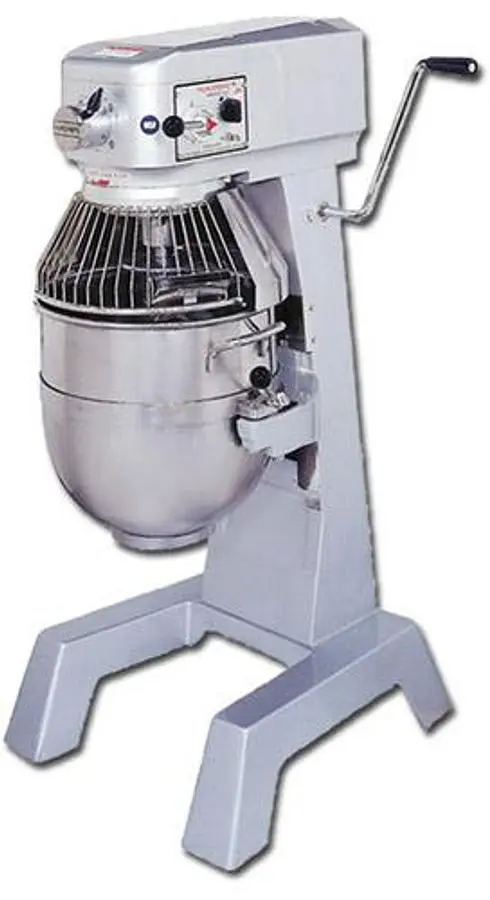

NEW THUNDERBIRD ARM-40

esign
Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

40-quart capacity
1-15minute timer for continuous or timed operation
Powerful 1.5 HP motor
115v/60/1, 30amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

 Standard Accessories

40-quart s/steel bowl.
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub

Optional Accessories

#12 taper hub meat grinder (ARM-02A)
#12 taper hub Vegetable shredder with plate holder (ARM-02B)
Bowl dolly
Reduction set
EXTENDED WARRANTY up to 6 years


Specifications
Motor:3-speed
1.5HP continuous
30 amps

Electrical:115/60/1
220v/60/1 and 220v/50/1 available

Speed Range:Beater: 46-150
Hub: 105-338

Weight:Net: 415lbs (189kg)
Ship: 490lbs (223kg)

Dimensions:Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)

Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)
