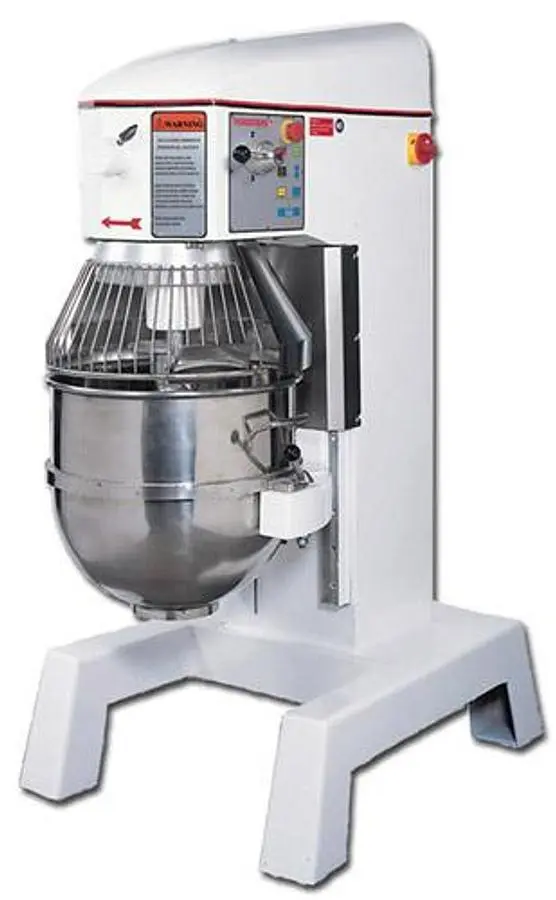

NEW THUNDERBIRD ARM-60

Design
Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

60-quart capacity
1-99minute timer for continuous or timed operation
Powerful 4Hp motor
220v/60/3 or 220x/60/1, 50amps (440v/60/3 and 440v/50/3 available at additional cost)
6-Speed (3 speed gear box with two speed motor)
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

 Standard Accessories

60-quart s/steel bowl.
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub

Optional Accessories

#12 taper hub meat grinder (ARM-02A)
#12 taper hub Vegetable shredder with plate holder (ARM-02B)
Bowl dolly
Reduction set
EXTENDED WARRANTY up to 6 years


Specifications
Motor:6-speed (3 speed gear box with 2 speed motor)
4Hp continuous
50 amps
Electrical:220/60/3 or 220/60/1
440v/60/3 or 440v/50/3
Speed Range:Beater: 18-100
Hub: 38-228
Weight:Net: 1018lbs (462kg)
Ship: 1180lbs (536kg)
Dimensions:Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 61.8'' (1569mm)
Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)
