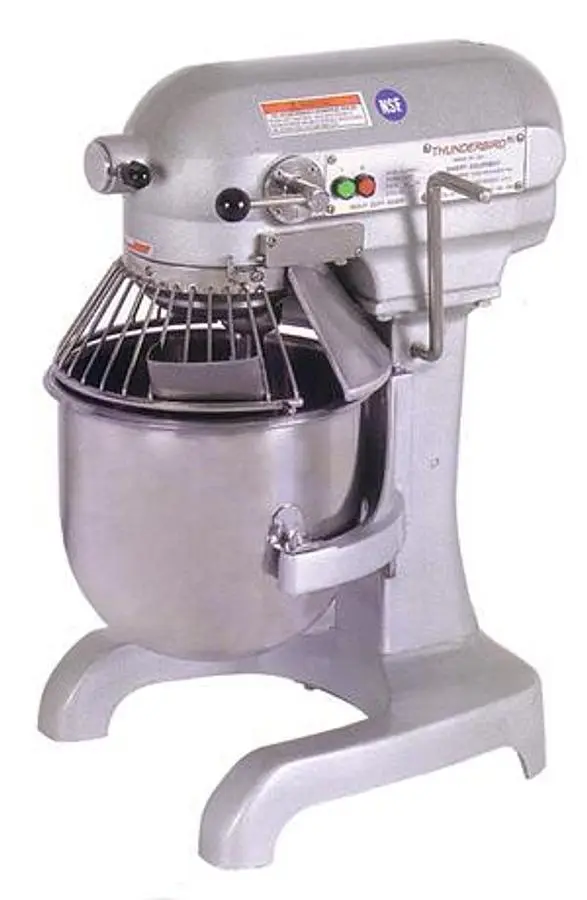

NEW THUNDERBIRD ARM-01

Design
Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

10-quart capacity
Powerful ½ HP motor
115v/60/1, 8.5amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#8 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

 Standard Accessories

10-quart s/steel bowl.
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub

Optional Accessories

#8 taper hub meat grinder (ARM-01A)
EXTENDED WARRANTY up to 6 years


Specifications
Motor:3-speed
1/2HP continuous
8.5 amps

Electrical:115/60/1
220v/60/1 and 220v/50/1 available

Speed Range:Beater: 40-142
Hub: 97-350

Weight:Net: 74lbs (34kg)
Ship: 83lbs (38kg)

Dimensions:Width: 14'' (360mm)
Depth: 18'' (460mm)
Height: 24'' (610mm)

Shipping:
Width: 19'' (485mm)
Depth: 19'' (485mm)
Height: 29'' (740mm)
