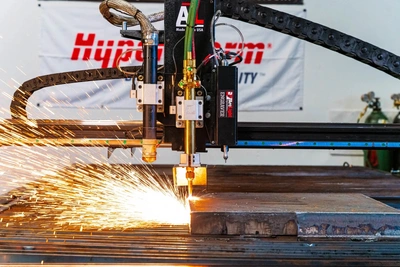

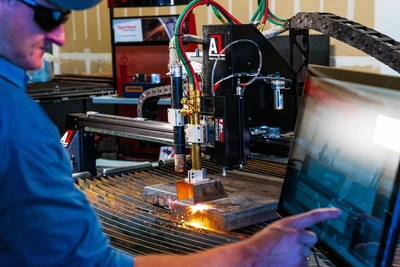

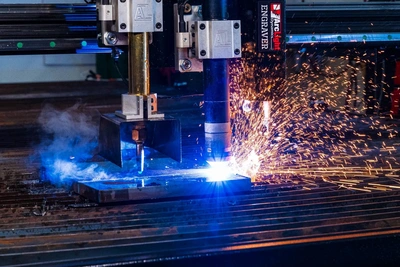

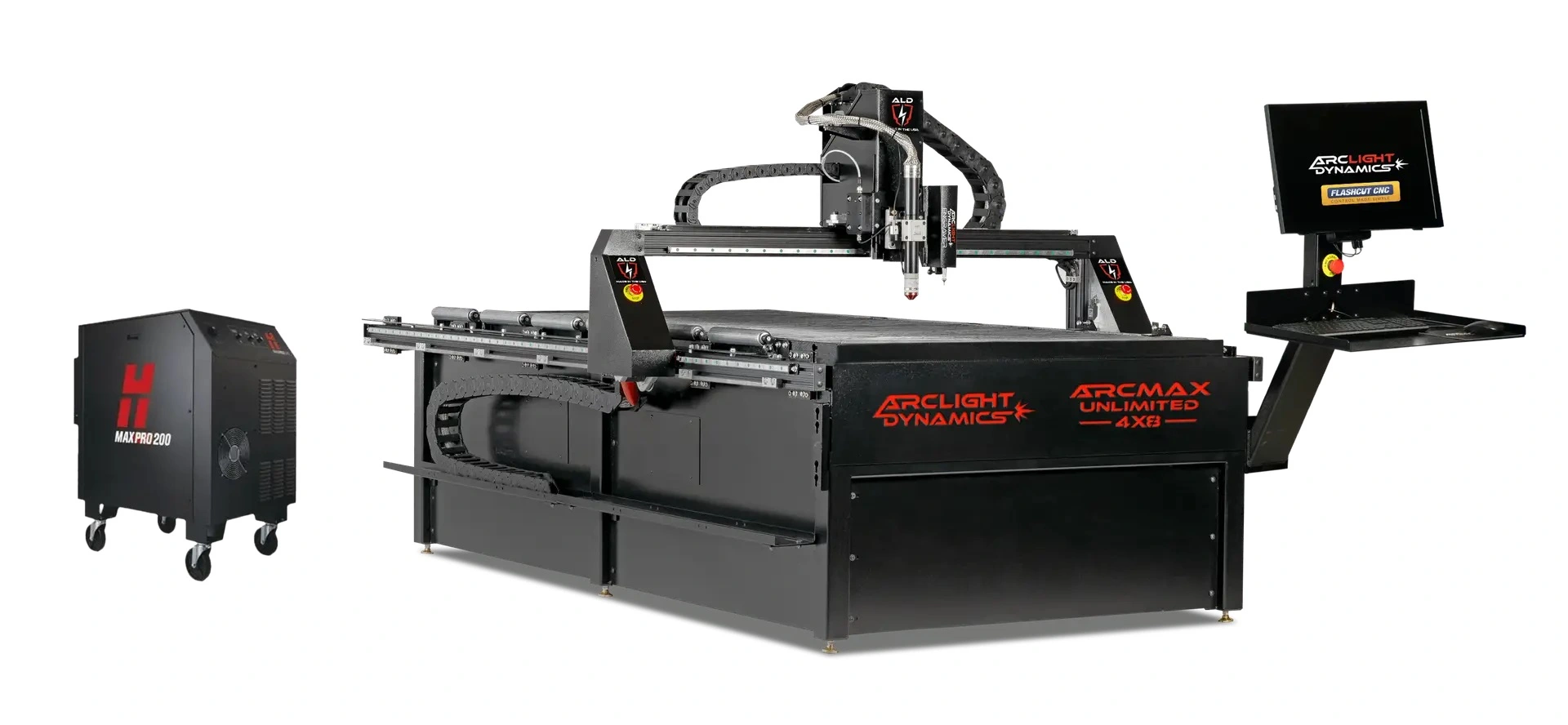

USED 2025 ARCLIGHT UNLIMITED

Capacity: 4‘ x 8‘

OEM Demo Unit
Cutting envelope: 50″ x 97″ x 6.5″
Overall dimensions: 120″L x 76″W x 60″H
Weight capacity: up to 3″ thick mild steel
Frame: Reinforced and fully welded steel
Positioning accuracy: .001″
Table base dimensions: 58″ x 109″
Water pan capacity: 250 gallons
Table power: 110V / 15-20A
Overall weight: 3,000 lbs
Controller: Flashcut CNC
Drive system: HIWIN precision linear rails, low-mass aircraft-grade aluminum gantry
Motors: NEMA 34, 940 oz stepper
Rapids: 800 IPM
MAXPRO 200 and Oxy-Fuel compatible
Plasma source not included — available to add on for additional cost, buyer’s choice of amperage
Equipped With:
Dual Plasma Torch Upgrade
Collision Detection System
Cool Flow Recirculation System
Dynamic Water Control
Touch Screen Monitor
Laser Torch Alignment System
OxyFuel Cutting System
Plate Engraver
