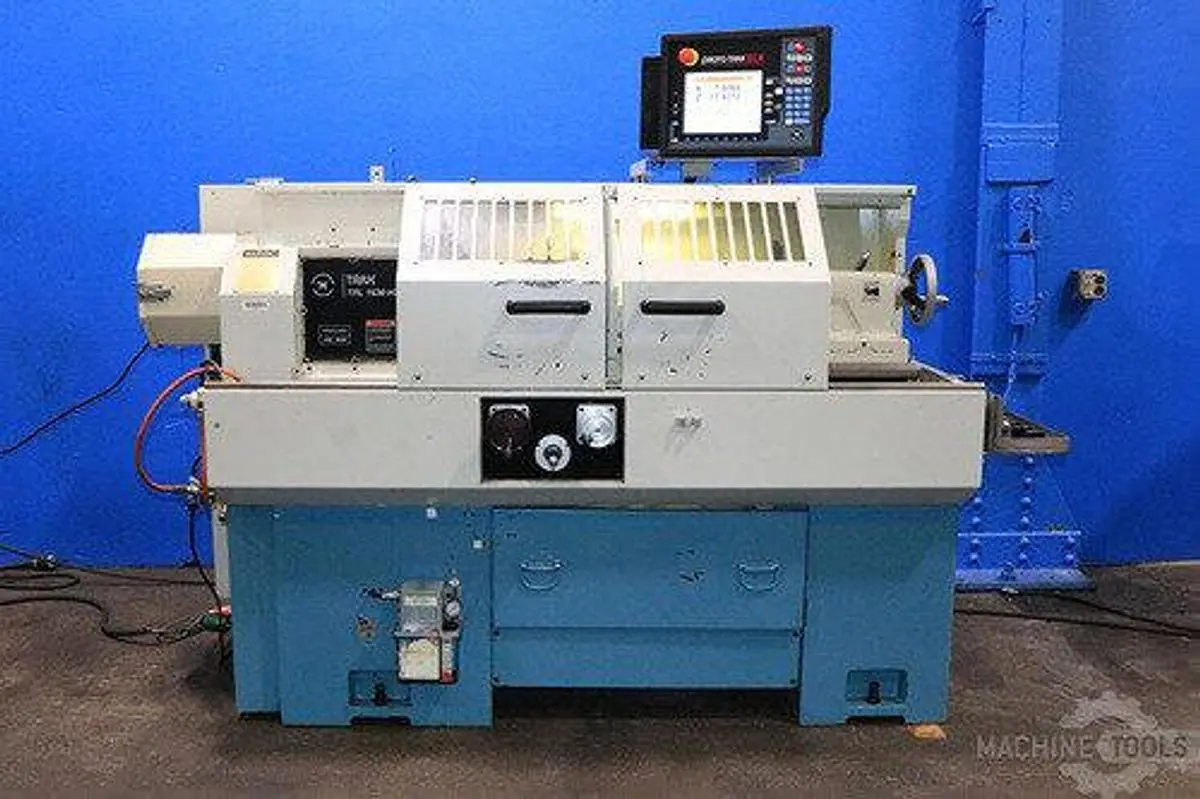

USED 2009 SOUTHWESTERN INDUSTRIES TRAK TRL 1630HS-SX
Overview
Two Axis Digital Readout During Manual Operation
Constant Surface Speed & Programmable Spindle Speeds
AC Spindle Drive
Dorian Quick Change Tool Post
Tailstock
Dunham Air Actuated Collet Closer 7Nosepiece
Electronic Hand Wheels & Jog Handle
Manual or CNC Operation
Coolant System with Tank & Pump
Coolant System
Enclosure
Specs
Machine Control: ProtoTrak SLX Control
Maximum Swing: 16"
Maximum Turning Diameter: 8.6"
Maximum Machining Length: 30"
Center distance: 30"
X-Axis Travel: 8.5"
Z-Axis Travel: 30"
Spindle Nose / Bore / Bar Capacity: A2-4" / 1.57" / 1.57"
Spindle Speed: 4,000 RPM
Spindle Motor: 7.5 HP
Number of Tool Positions: Tool Post
Rapid Traverse Rates X / Z: 100 IPM / 150 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 2.36" / 6.3" / MT #5
Machine Dimensions LxWxH: 82" x 46" x 67"
Machine Weight: 2,875 lbs.
