USED 2008 SOUTHWESTERN INDUSTRIES TRAK TRL 1840SX

Control Updated in 2022
Dorian Tool Post
Tailstock
Electronic Handwheels and Joystick

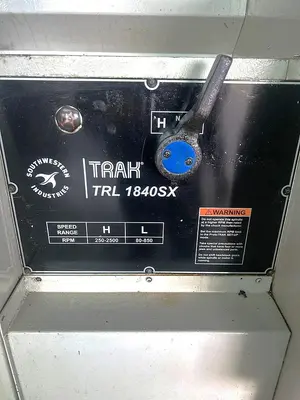

2 Speed Geared
10.4" Color Active Matrix Screen
USB Port Interface
RS232 Port Interface
Coolant System with Pump

**Machine Does NOT Include a Chuck**

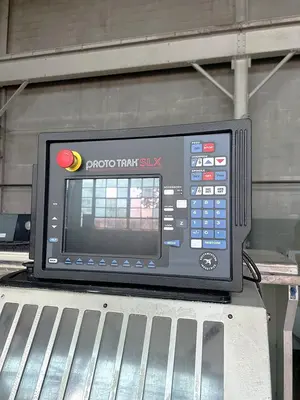

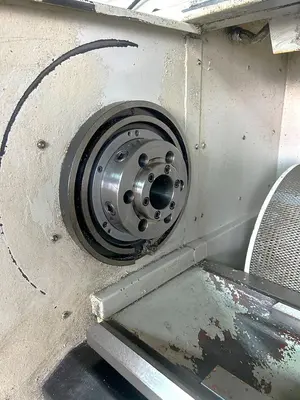

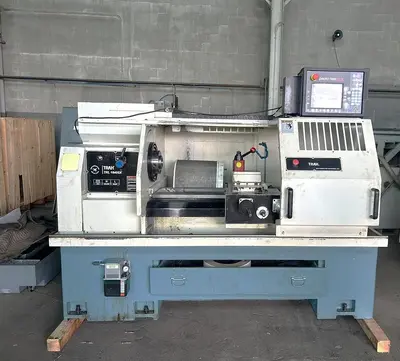

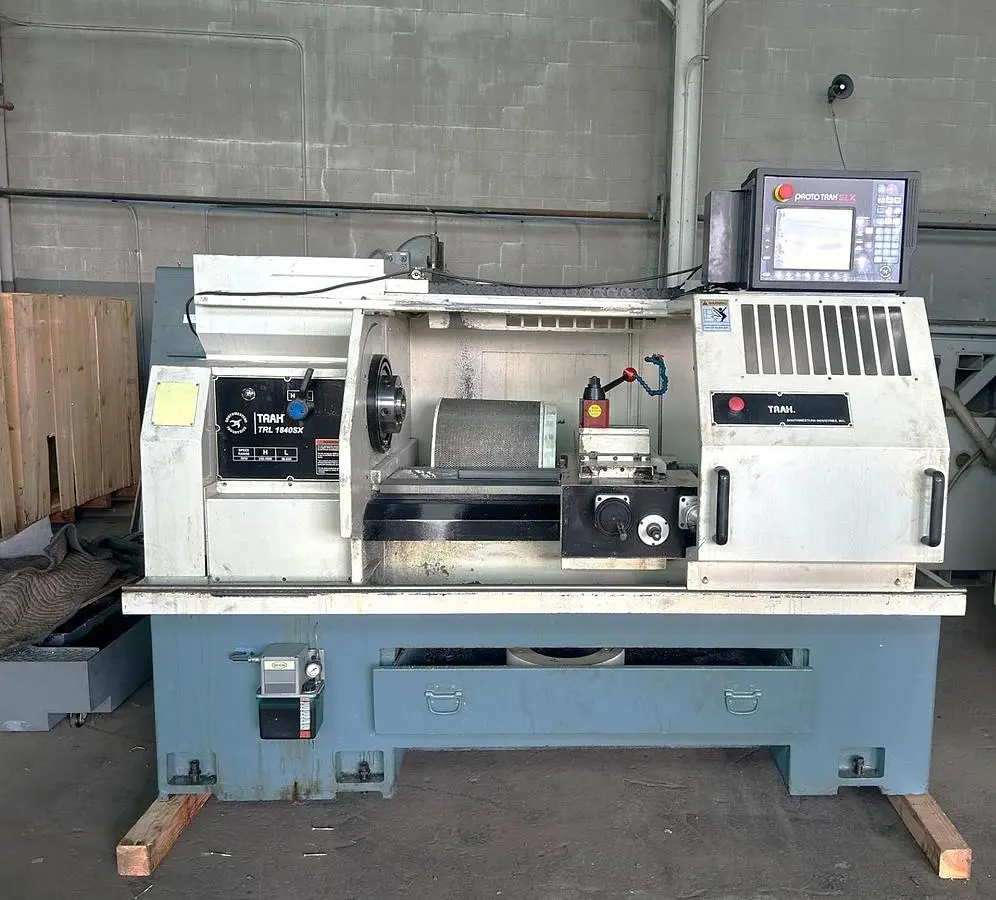

The 2008 Southwestern Industries TRAK TRL 1840SX is a reliable used CNC lathe designed for precision and efficiency. It is equipped with a Prototrak SLX control and features a 10-inch 3-jaw manual chuck. The lathe supports a maximum swing over the bed of 18.5 inches and 9 inches over the cross slide, with a 40.25-inch distance between centers. Its spindle configuration includes a D1-6 nose with a 2.36-inch bore, offering speeds between 80 and 2,500 RPM across two ranges.

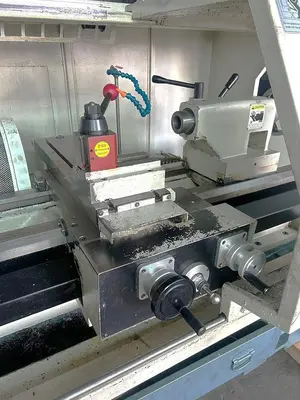

Designed for flexibility, this 3-axis machine includes a Dorian tool post and delivers rapid traverse rates of 100 IPM on the X-axis and 150 IPM on the Z-axis. The lathe is powered by a robust 10 HP spindle motor, and its tailstock features a quill diameter of 2.96 inches, with a 7.125-inch travel and #5MT taper. To accommodate operational needs, the machine requires a 220V, 3-phase, 60Hz power supply.

With overall dimensions of 91"x53"x70" and weighing in at 4,500 pounds, the TRAK TRL 1840SX is a substantial yet practical addition to any machine shop, balancing size and capability for varied turning tasks.
