USED DALLAS DPR 30000X60 / DRFSH-660

Coil Weight: 30000 pounds
Coil Width: 60 inches
Coil Thickness: .090 inches

60" Wide Dallas Industries Space Saver Complete Coil Feed Line For SaleLike New Condition! Preliminary Specifications:
Coil weight capacity: 30,000 Lbs.
Coil width capacity: 60"
Stock thickness capacity: .090" x 60 Wide
Stock thickness capacity: .187" x 18 Wide
Expansion range: 20" - 24"
Coil OD capacity: 72"

Dallas Industries Space Saver complete Coil Feed Line Equipment and Features:

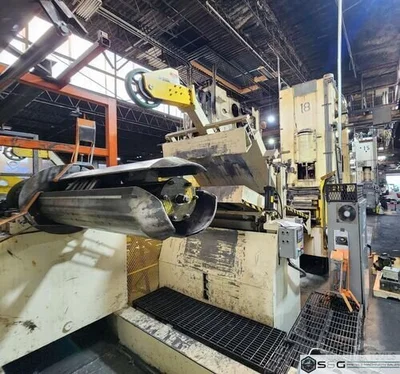

Dallas Industries Coil Reel Uncoiler Model No.: DPR 30000# x 60
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Motorized variable speed coil reel payout
Space saver loop control system

Dallas Ind. Traveling Coil Load Car Model No.: LC-300
Coil load car track
Powered lift and travel
Narrow coil supports

Free standing coil hold down station
Hold down arm with motorized end wheel
Stock threading table
Stock peeler extension

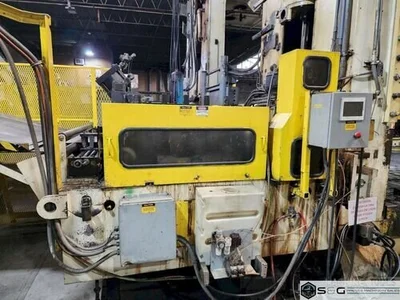

Dallas Ind. Servo Roll Feed Straightener Combination Press Feed Model No.: DRFSH-660
Six inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot (dual cylinder)
Centralized lubrication points
Roller stock width edge guides with individual or unison upper roll adjustments
Cabinet base mounted with heavy duty pass line adjustment
Motorized pass line adjustment
Solenoid controlled pilot release
Air pressure/regulators flush mounted in cabinet base
Seven coil straightening rolls
Individual upper coil straightening roll adjustments
Motorized coil straightener pinch roll for stock threading
Air operated upper coil straightener pinch roll adjustment
Cascade loop support rollers Stock width reference scale
AC servo roll feed drive and controls Can be seen under power in the S&G Press and Machinery Warehouse!

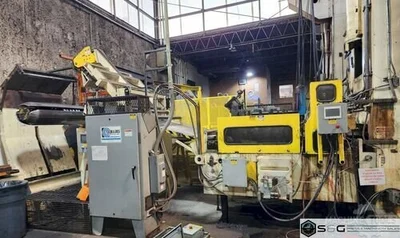

Move More Metal: Like-New 60" Dallas Space Saver Coil Feed Line
Maximize your shop floor efficiency with this like-new 60" Dallas Industries Space Saver Complete Coil Feed Line. Built to handle a massive 30,000 lbs. coil capacity, this robust system processes material up to 60" wide and thicknesses from .090" at full width to .187" at 18" wide. Featuring a DRFSH-660 Servo Roll Feed Straightener combination, a high-capacity traveling coil car, and motorized loop controls, it delivers precision and speed without consuming valuable square footage.
Why Buy From S&G Press?
Investing in heavy stamping machinery requires trust, technical expertise, and transparency. At S&G Press, we bring over 26 years of industrial machinery experience to ensure your capital investment is seamless. This premium Dallas Space Saver isn't just sitting in a catalog—it is fully set up and can be seen under power in our warehouse today. Don't risk buying blind; partner with S&G Press to inspect the mechanical, pneumatic, and lubrication systems firsthand before you buy.
